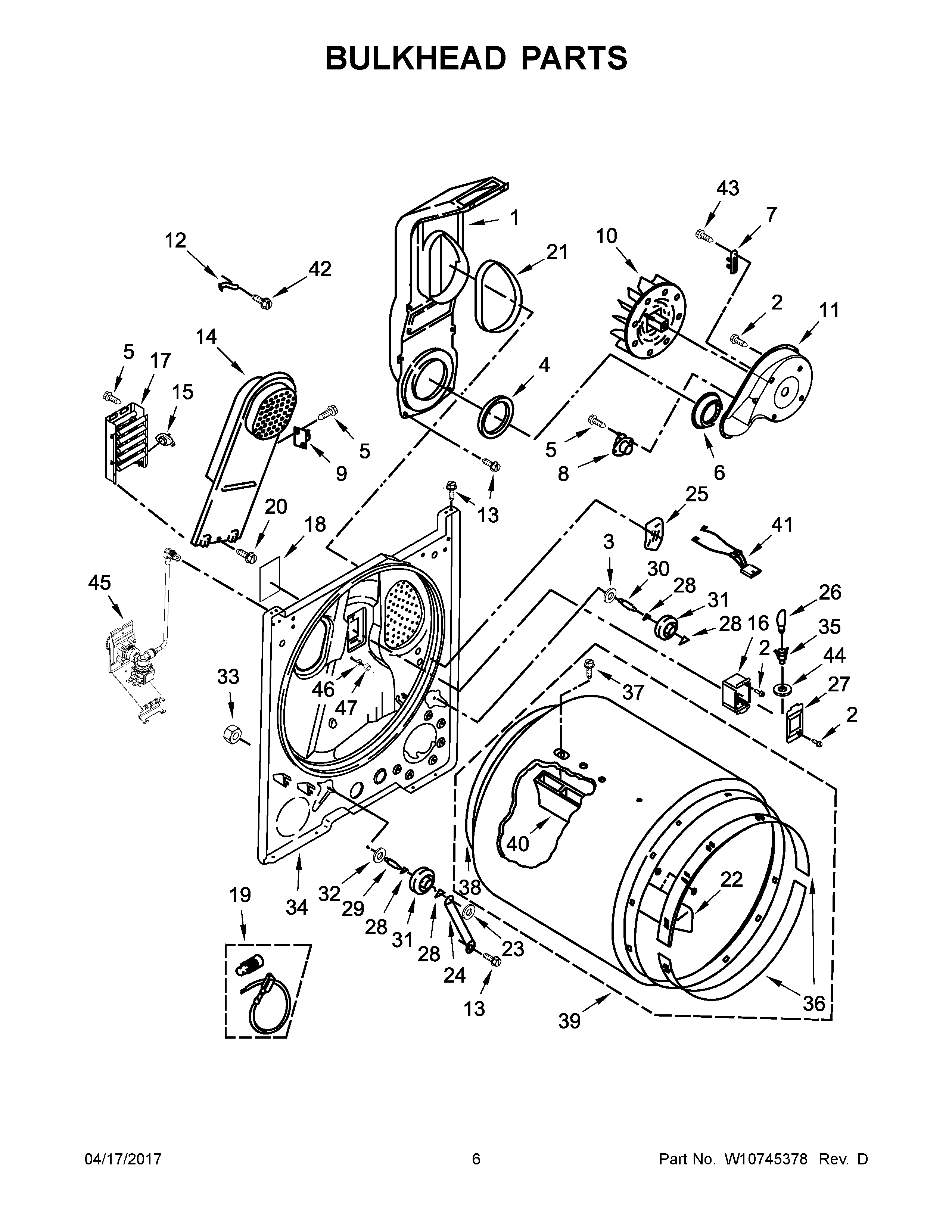

WED7300DW0 04 – BULKHEAD PARTS

WED7300DW0 04 – BULKHEAD PARTS

Written by

in

WED7300DW0 04 – BULKHEAD PARTS

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP8577274 Whirlpool Dryer Thermistor
9	W10900067 Whirlpool Dryer Cut-Off Timer
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	3977373 Whirlpool Bracket
17	279838 Whirlpool Dryer Heating Element 5400W
18	W11409002 Whirlpool Pad
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
21	SEAL
22	WP3403636 Whirlpool Drum Baffle
23	WP90296 Whirlpool Clip
24	W11684613 Whirlpool Bracket
25	W10853313 Whirlpool Sensor
26	WP22002263 Whirlpool Dryer 10W Light Bulb
27	W11226088 Whirlpool Lens Assembly
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W11112242 Whirlpool Bulkhead Assembly
35	W11222979 Whirlpool Socket
36	279441 Whirlpool Front Bearing Ring
37	W10853898 Whirlpool Screw
38	W10612022 Whirlpool Felt Seal
39	W10899578 Whirlpool Dryer Drum Assembly
40	BAFFLE-DRM
41	WPW10298258 Whirlpool Wire Harness
42	W11693756 Whirlpool Screw Assembly
43	WP308685 Whirlpool Microwave Screw
44	SEAL, DRUM LIGHT
45	W11267102 Whirlpool Valve
46	W10044579 Whirlpool Washer
47	W10044628 Whirlpool Nut
