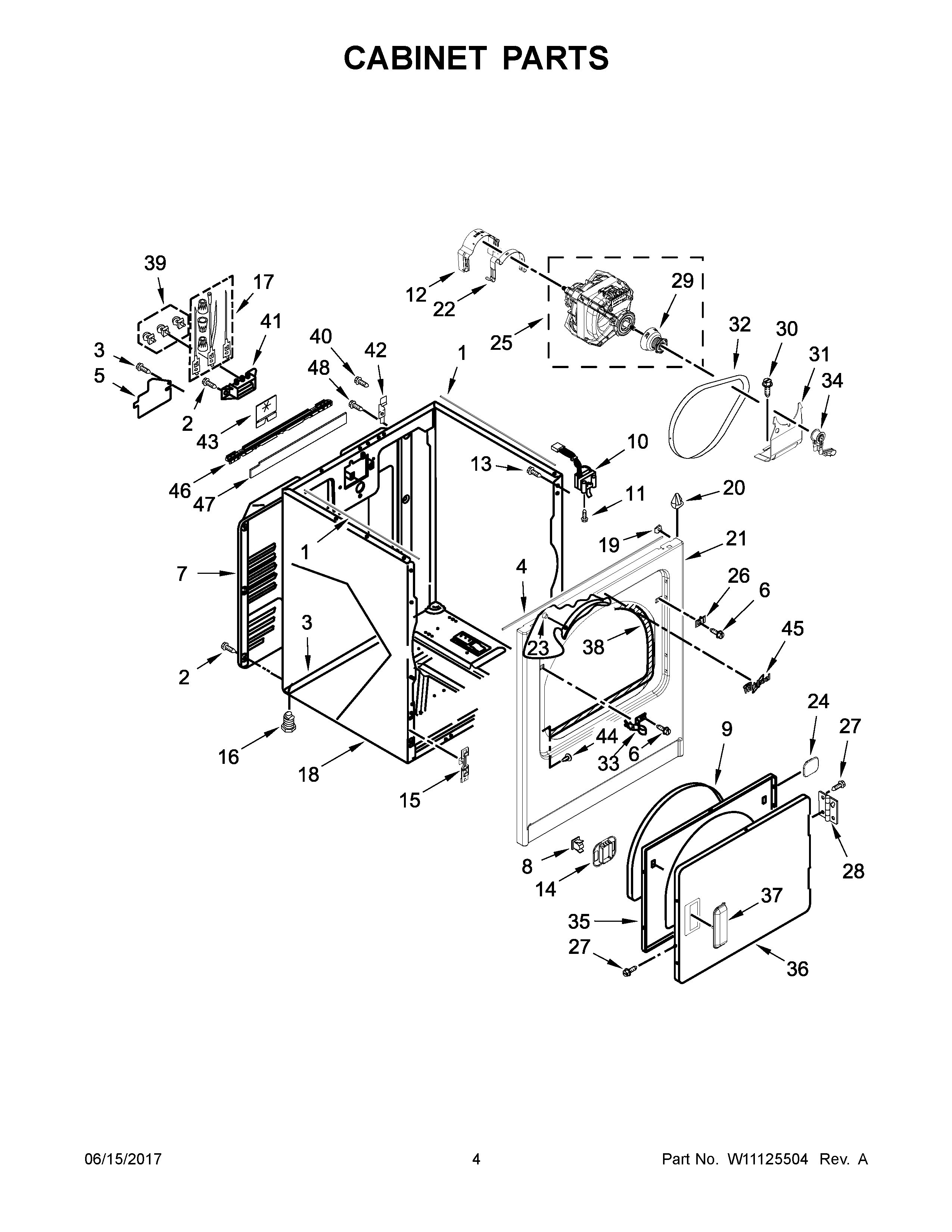

WED7300DW2 03 – CABINET PARTS

WED7300DW2 03 – CABINET PARTS

Written by

in

WED7300DW2 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W11596046 Whirlpool Seal
2	WP3390631 Whirlpool Screw
3	WPW10157932 Whirlpool Seal Foam
4	W10316619 Whirlpool Seal
5	W11298298 Whirlpool Cover
6	W10850756 Whirlpool Screw
7	280043 Whirlpool Rear Panel
8	W11429587 Whirlpool Catch Assembly
9	SEAL-DOOR DRYER
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404162 Whirlpool Clamp
13	WP308685 Whirlpool Microwave Screw
14	WPW10529197 Whirlpool Catch Assembly
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
18A	W10869013 Whirlpool Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21A	PANEL, FRONT (CHROME SHADOW)
21	W10806345 Whirlpool Panel
22	CLAMP
23	279220 Whirlpool Clip
24	W11173656 Whirlpool Cover
25	279827 Whirlpool Dryer Drive Motor
26	W11684591 Whirlpool Dryer Plug
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP8066184 Whirlpool Dryer Motor Pulley
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	W11429589 Whirlpool Strike
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WPW10463967 Whirlpool Door Assembly
36A	W10902811 Whirlpool Door Assembly
36	W10861224 Whirlpool Door
37	W10861225 Whirlpool Dryer White Door Handle
37A	W11176266 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	SCREW
41	WP3397659 Whirlpool Terminal Block
42	W11715722 Whirlpool Hinge
43	W11230156 Whirlpool Pad
44A	PLUG, HOLE
44	WP3404413 Whirlpool Plug
45A	WPW10393264 Whirlpool Refrigerator Nameplate
45	W11178521 Whirlpool Dishwasher Nameplate
46	W10641295 Whirlpool Bracket
47	W10685675 Whirlpool Seal
48	WP90767 Whirlpool Screw
