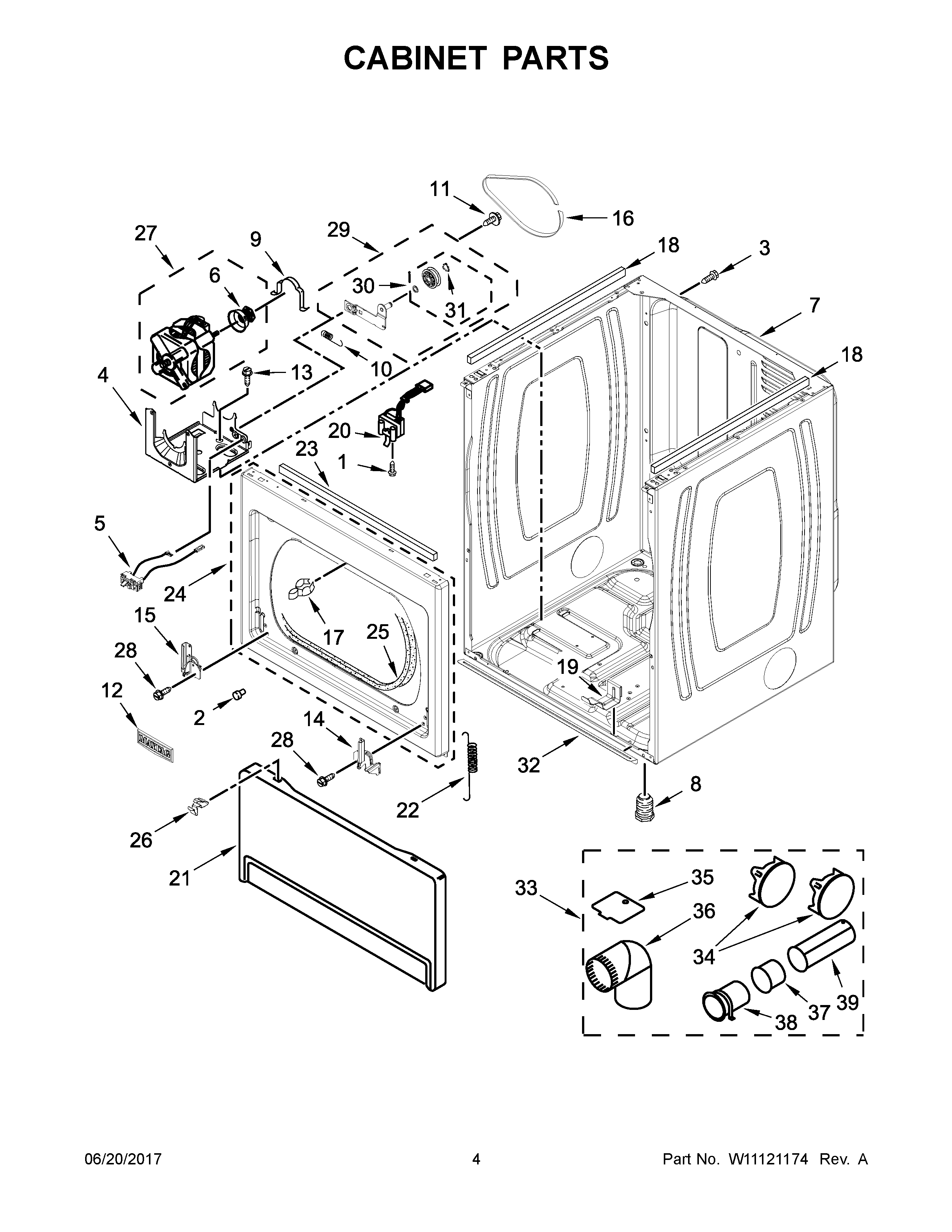

WED7500GC0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP3395530 Whirlpool Screw
2	693152 Whirlpool Bumper
3	WP90767 Whirlpool Screw
4	W11481730 Whirlpool Bracket
5	W10847984 Whirlpool Switch
6	W10837625 Whirlpool Dryer Motor Pulley
7	W11417441 Whirlpool Cabinet
7A	W11417445 Whirlpool Cabinet
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12A	WPW10393264 Whirlpool Refrigerator Nameplate
12	W11178521 Whirlpool Dishwasher Nameplate
13	SCREW
14	W11371722 Whirlpool Hinge
15	W11376139 Whirlpool Hinge
16	661570V Whirlpool Dryer Drum Belt
17	W11366436 Whirlpool Strike
18	W10336128 Whirlpool Seal
19	WPW10291934 Whirlpool Clip
20	WP3406107 Whirlpool Dryer Door Switch
21A	WPW10459664 Whirlpool Toe Panel
21	WP3406797 Whirlpool Toe Panel
22	WP3387565 Whirlpool Door Spring
23	W10312811 Whirlpool Seal
24A	WPW10459661 Whirlpool Panel
24	PANEL, FRONT (WHITE)
25	WP3387242 Whirlpool Seal
26	WP3388229 Whirlpool Dryer Spring Clip
27	279787 Whirlpool Dryer Drive Motor
28	WP308685 Whirlpool Microwave Screw
29	W10837240 Whirlpool Dryer Idler Pulley
30	279640 Whirlpool Dryer Idler Pulley Kit
31	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
32	W10236068 Whirlpool Bracket
33	W10323246 Whirlpool Dryer Vent Kit 4-Way
34	WPW10404617 Whirlpool Plug Assembly
35	WPW10354249 Whirlpool Cover
36	WPW10416072 Whirlpool Elbow
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563747 Whirlpool Exhaust Pipe
39	WP8563749 Whirlpool Exhaust Pipe
