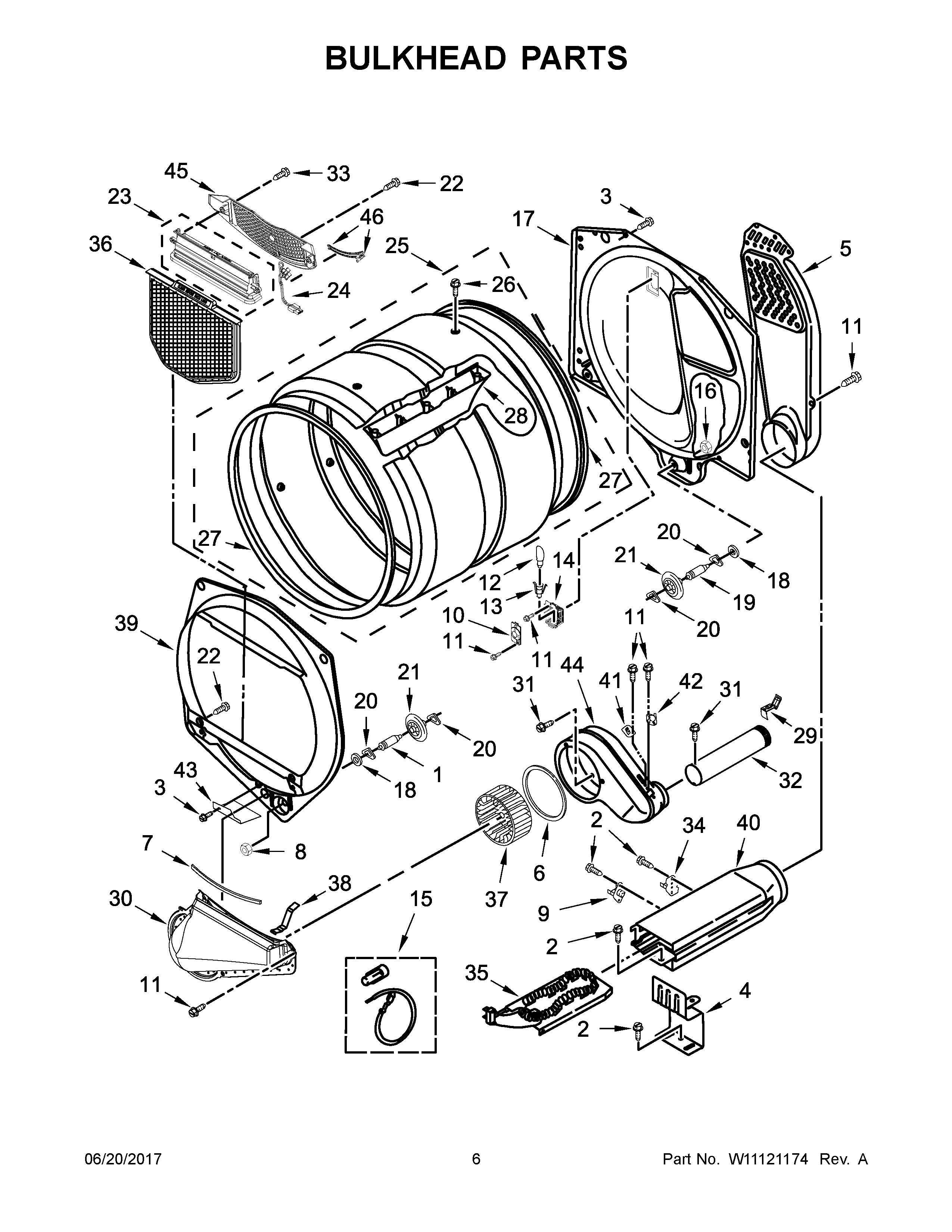

WED7500GW0 04 – BULKHEAD PARTS

WED7500GW0 04 – BULKHEAD PARTS

Written by

in

WED7500GW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	W11693756 Whirlpool Screw Assembly
3	WP488729 Whirlpool Refrigerator Door Screw
4	8066099 Whirlpool Bracket
5	WP3387911 Whirlpool Air Duct
6	WP697770 Whirlpool Blower Cover Plate Seal
7	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	THRMST-FIX
10	W11226088 Whirlpool Lens Assembly
11	WP693995 Whirlpool Screw
12	WP22002263 Whirlpool Dryer 10W Light Bulb
13	W11222979 Whirlpool Socket
14	8578825 Whirlpool Bracket
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
23	W11129408 Whirlpool Out Housing
24	WPW10298258 Whirlpool Wire Harness
25	W10545923 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
28	WPW10113136 Whirlpool Drum Baffle
29	W11684573 Whirlpool Clip Assembly
30	WPW10128606 Whirlpool Lint Duct
31	WP489463 Whirlpool Refrigerator Screw
32	279936 Whirlpool Exhaust Pipe
33	WP308685 Whirlpool Microwave Screw
34	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
35	WP3387747 Whirlpool Dryer Heating Element
36	W10120998 Whirlpool Dryer Lint Screen Filter
37	WHEEL
38	WP8066208 Whirlpool Clip
39	WP697557 Whirlpool Bulkhead Assembly
40	W10802681 Whirlpool Box Assembly
41	FUSE-THRML
42	WP8577274 Whirlpool Dryer Thermistor
43	W11257251 Whirlpool Shield
44	W10888146 Whirlpool Housing
45	W11086603 Whirlpool Dryer Link Screen Air Grille
46	WP3387223 Whirlpool Electrode Assembly
