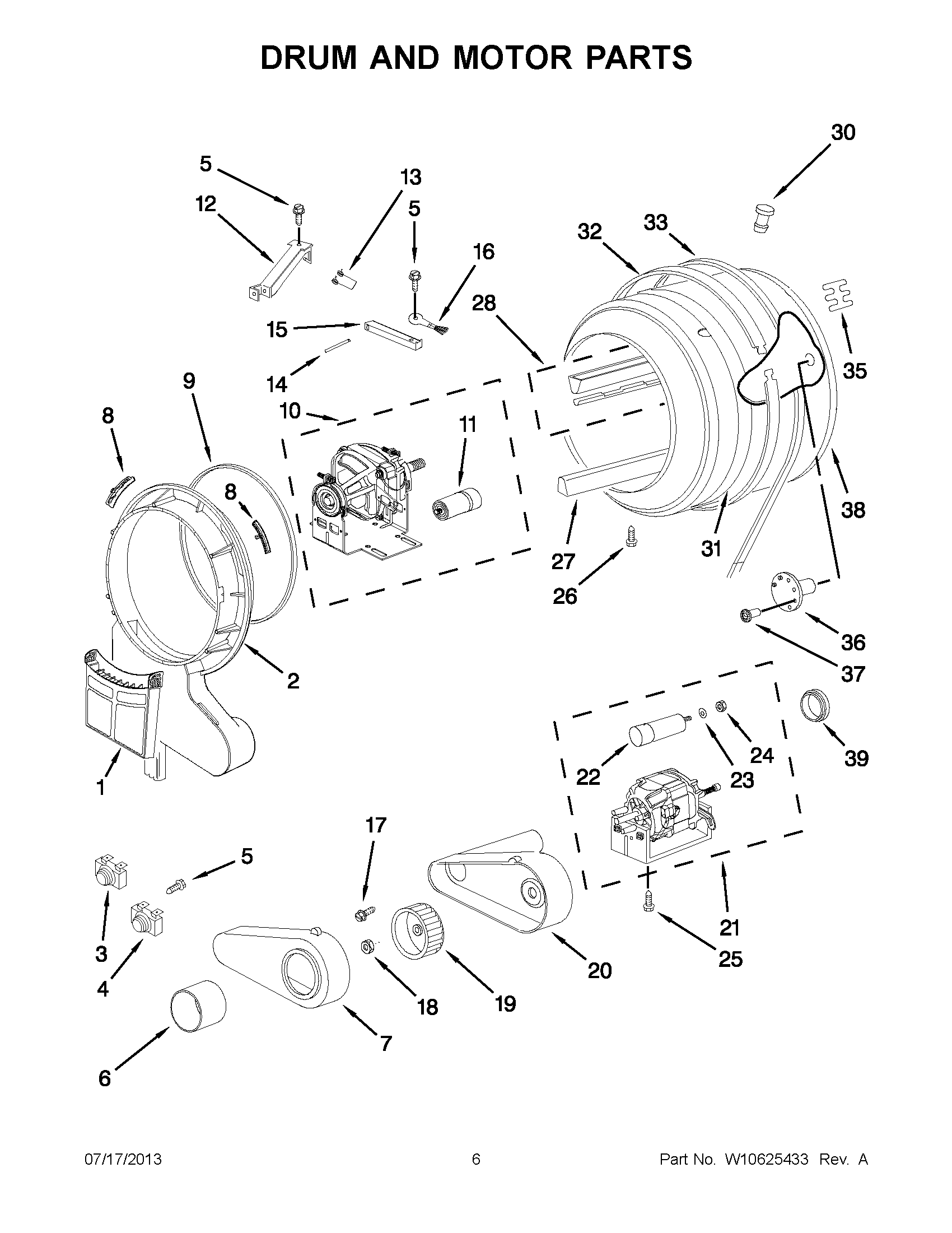

WED7500VW1 03 – DRUM AND MOTOR PARTS

WED7500VW1 03 – DRUM AND MOTOR PARTS

Written by

in

WED7500VW1 03 – DRUM AND MOTOR PARTS

Products

PositionProduct
18182489 Whirlpool Screen
28182485 Whirlpool Lint Duct
3WP8182470 Whirlpool Thermostat
4WP8182477 Whirlpool Thermostat
5Screw
6Extension, Housing
7WPW10238692 Whirlpool Housing
8W10119103 Whirlpool Insert
9Seal, Front Drum
10Drive Motor (Includes Bracket & Capacitor)
12Support, Arm (Brush)
13W10873385 Whirlpool Spring Assembly
14Pin, Arm
15Arm, Brush Holder
16Brush, Detector
178183100 Whirlpool Screw
188182739 Whirlpool Kit
19WP8182538 Whirlpool Wheel
20W10238691 Whirlpool Housing
21WP8182472 Whirlpool Drive Motor
22W11105120 Whirlpool Capacitor
23Washer, Capacitor
24Nut, Capacitor
25WP22002933 Whirlpool Screw
26Screw, Baffle
278182483 Whirlpool Drum Baffle
288183113 Whirlpool Drain Baffle
30Plug, Probe
31Band, Insulation
32Band, Steel
33Belt, Drive
358182493 Whirlpool Spring Assembly
37CABINET (NOT A SERVICEABLE PART)
38WP8182482 Whirlpool Drum Assembly
39Shield, Exhaust
