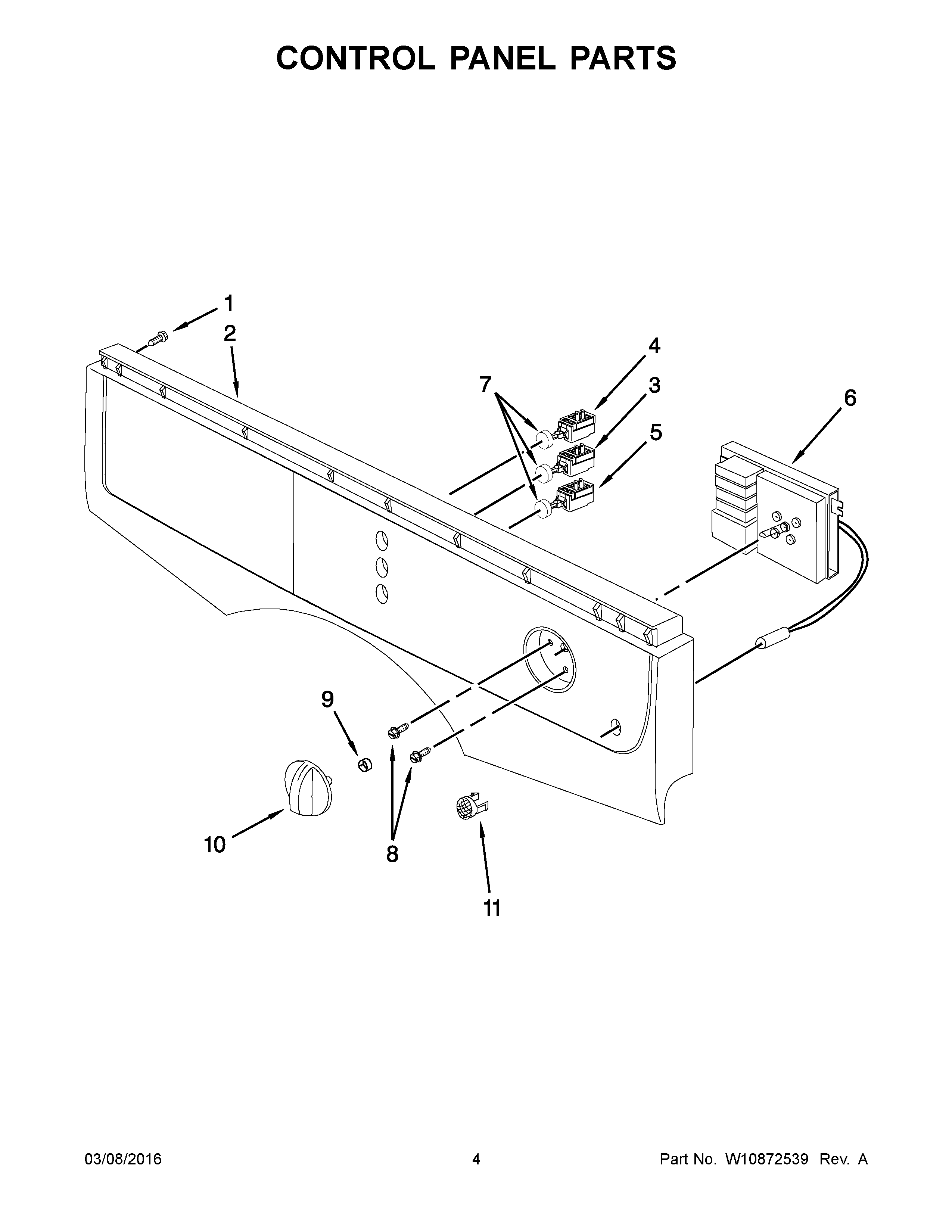

WED7500VW2 03 – CONTROL PANEL PARTS

Products

Position	Product
1	SCREW
2	W10205135 Whirlpool Control Panel
3	SWITCH & BUTTON ASSEMBLY (TEMPERATURE)
4	280110 Whirlpool Plug Switch
5	SWITCH & BUTTON ASSEMBLY (ON/OFF)
6	Timer & Indicator Light Assembly (Indicator Light Not Serviced Separately)
7	Button, Push
8	8169479 Whirlpool Microwave Screw
9	WP8182361 Whirlpool Spring
10	W10233963 Whirlpool Control Knob
11	8182532 Whirlpool Lens Assembly
