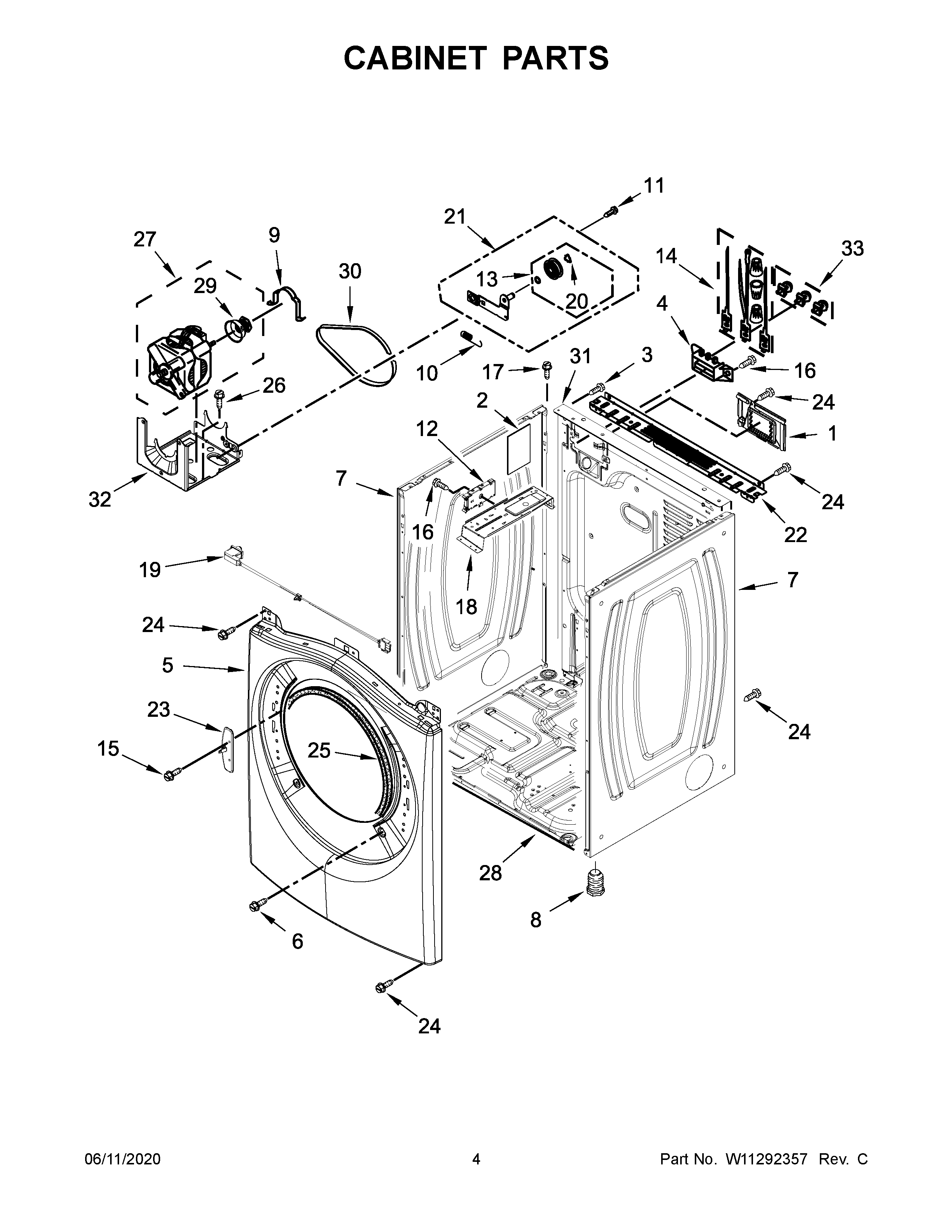

WED7505FW0 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	W11409002 Whirlpool Pad
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WPW10363953 Whirlpool Dishwasher Panel
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	SCREW
16	WP489463 Whirlpool Refrigerator Screw
18	BRACKET, CONTROL
19	WPW10350906 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	W10837240 Whirlpool Dryer Idler Pulley
22	WPW10208382 Whirlpool Dryer Bracket
23	WPW10208250 Whirlpool Strike
24	WP488729 Whirlpool Refrigerator Door Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10487430 Whirlpool Rear Panel
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
