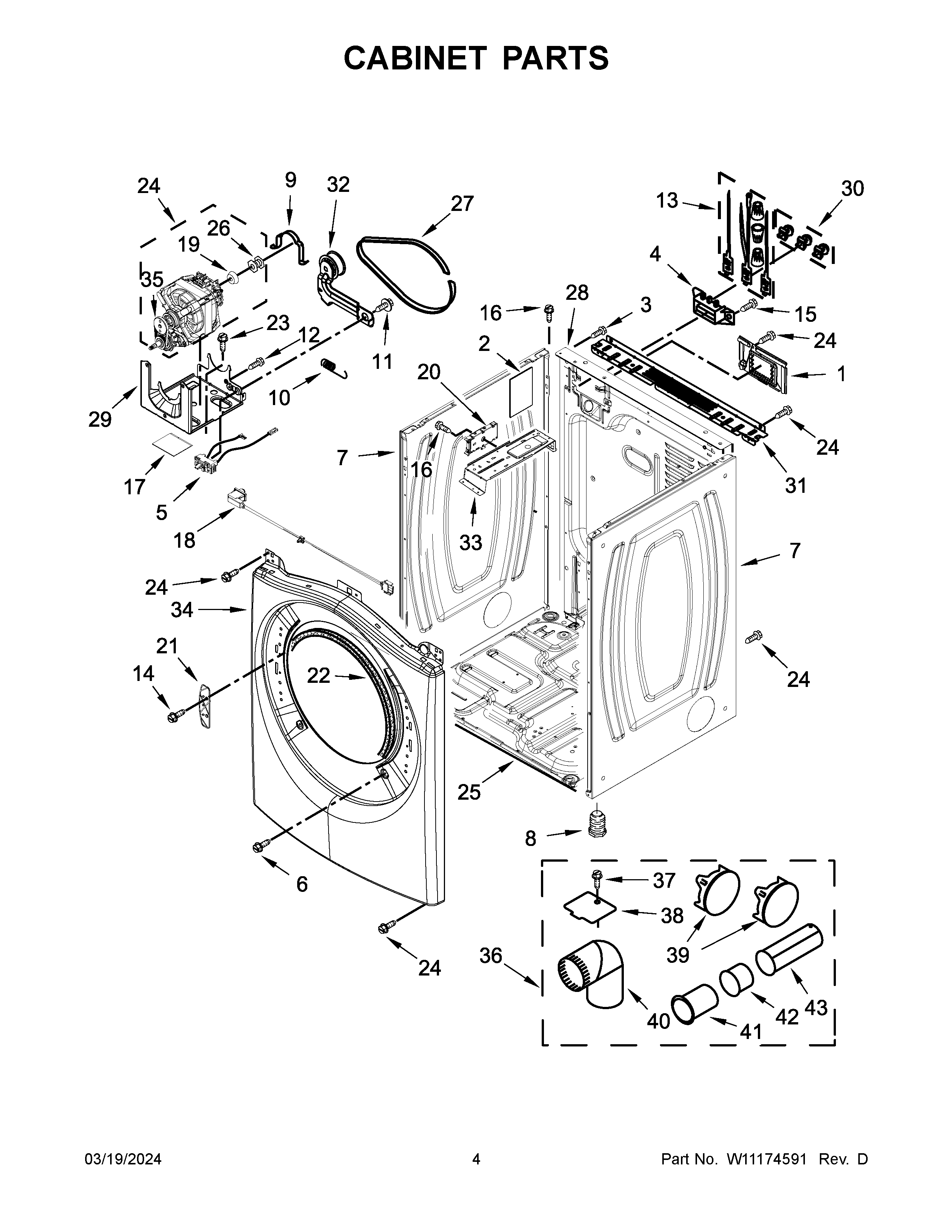

WED7590FW1 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	W11409002 Whirlpool Pad
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W11247665 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	8540841 Whirlpool Bolt
12	WP3389420 Whirlpool Screw
13	279318 Whirlpool Terminal
14	SCREW
15	WP489463 Whirlpool Refrigerator Screw
17	W11113654 Whirlpool Pad
18	WPW10350906 Whirlpool Door Switch
19	WP3393657 Whirlpool Belt Retainer
20	W11537223-includeCORE Whirlpool W11537223 Refrigerator Electronic Control
21	WPW10208250 Whirlpool Strike
22	WP3387242 Whirlpool Seal
23	SCREW
24	W11234001 Whirlpool Drive Motor
25	W11215531 Whirlpool Base
26	WP8066184 Whirlpool Dryer Motor Pulley
27	BELT
28	W10487431 Whirlpool Rear Panel
29	W11676491 Whirlpool Base
30	279393 Whirlpool Terminal Block Screw and Nut Kit
31	WPW10208382 Whirlpool Dryer Bracket
32	WPW10344192 Whirlpool Idler Pulley
33	BRACKET, CONTROL
34	WPW10363953 Whirlpool Dishwasher Panel
35	WP3405160 Whirlpool Belt Assembly
36	W10323246 Whirlpool Dryer Vent Kit 4-Way
37	WP488729 Whirlpool Refrigerator Door Screw
38	WPW10354249 Whirlpool Cover
39	WPW10404617 Whirlpool Plug Assembly
40	WPW10416072 Whirlpool Elbow
41	WP8563747 Whirlpool Exhaust Pipe
42	WPW10331278 Whirlpool Exhaust Pipe
43	WP8563749 Whirlpool Exhaust Pipe
