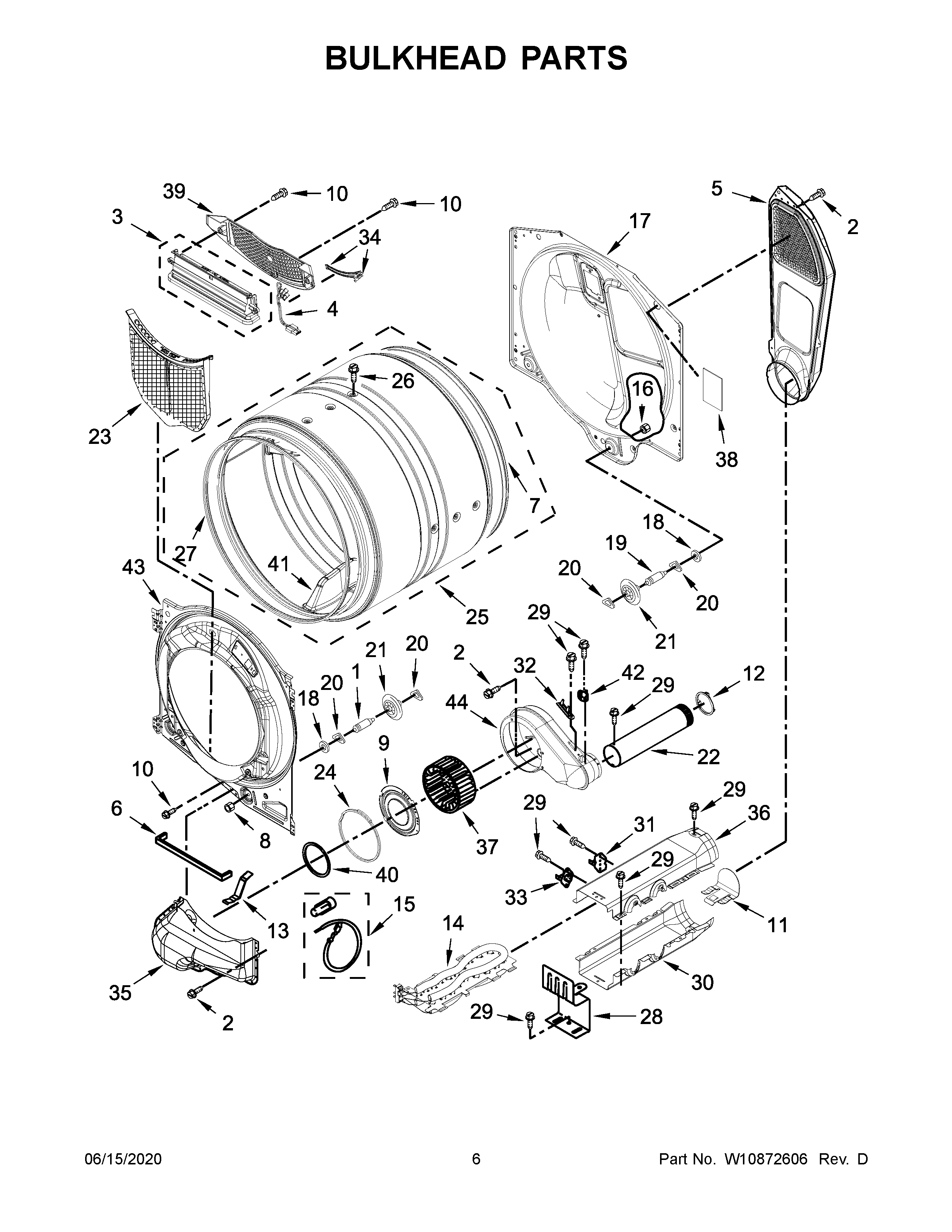

WED75HEFW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	HOUSNG-DRYER LINT
4	WPW10298258 Whirlpool Wire Harness
5	WP3387911 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	W11590579 Whirlpool Screw
11	8544776 Whirlpool Clip Assembly
12	WPW10344699 Whirlpool Collar
13	W10414388 Whirlpool Clip
14	WP8544771 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10342188 Whirlpool Exhaust Pipe
23	SCREEN – LINT. ALPHA W/FELT
24	WP697770 Whirlpool Blower Cover Plate Seal
25	W10508188 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	W11193479 Whirlpool Seal
28	8066099 Whirlpool Bracket
29	WP693995 Whirlpool Screw
30	HOUSING TAB, HEATER BOX
31	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
32	FUSE-THRML
33	WP8557403 Whirlpool Thermostat
34	WP3387223 Whirlpool Electrode Assembly
35	WPW10211896 Whirlpool Duct Lint
36	WP8544769 Whirlpool Box
37	WP697772 Whirlpool Dryer Blower Wheel
38	W11409002 Whirlpool Pad
39	W11125442 Whirlpool Outer Grille
40	W10211899 Whirlpool Seal
41	W10416098 Whirlpool Baffle Assembly
42	WP8577274 Whirlpool Dryer Thermistor
43	W11712678 Whirlpool Bulkhead Assembly
44	WPW10211911 Whirlpool Housing
