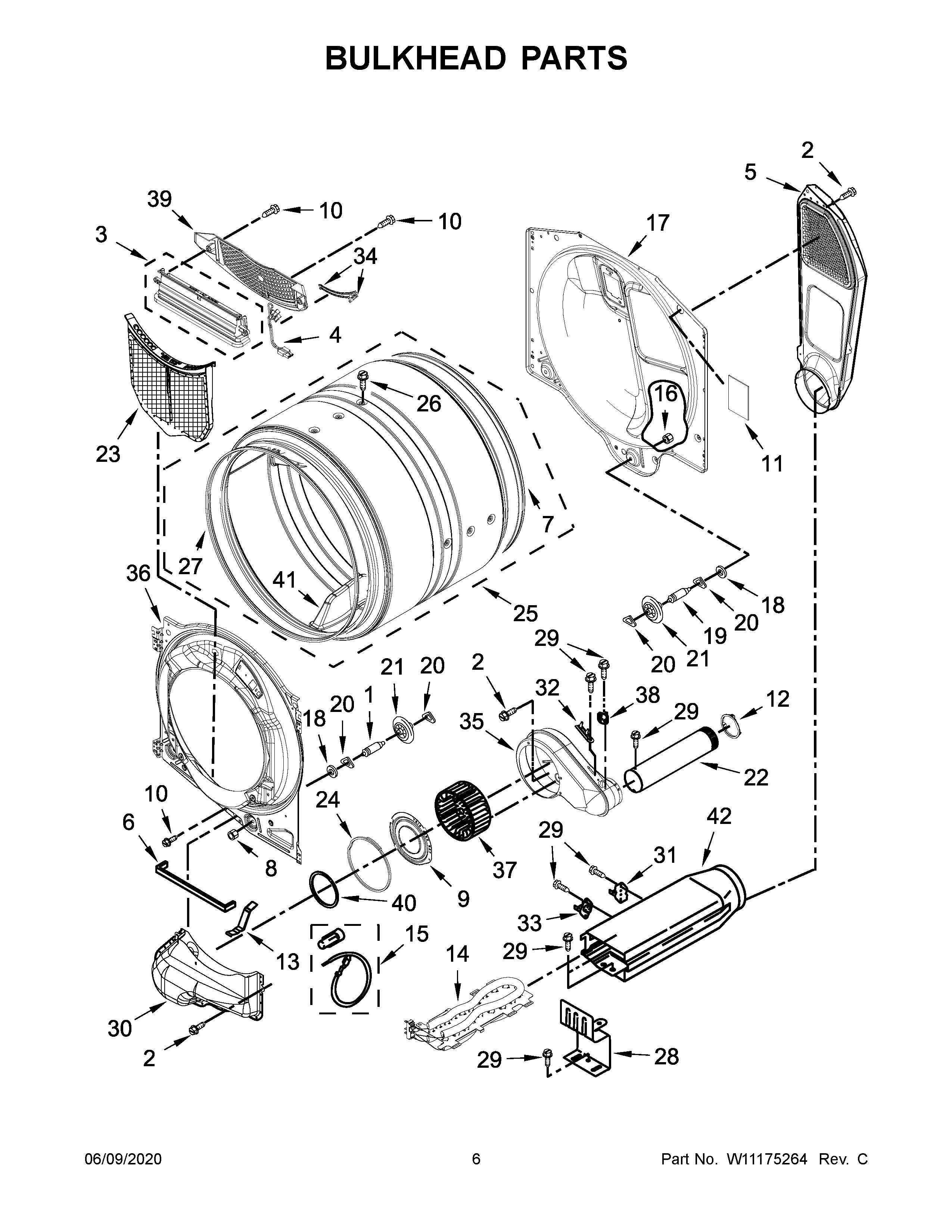

WED75HEFW1 04 – BULKHEAD PARTS

WED75HEFW1 04 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3HOUSNG-DRYER LINT
4WPW10298258 Whirlpool Wire Harness
5W11677720 Whirlpool Air Duct
6W11676493 Whirlpool Seal Assembly
7280114 Whirlpool Dryer Drum Seal
8WPW10080210 Whirlpool Nut
9W10211901 Whirlpool Cover Assembly
10W11590579 Whirlpool Screw
11W11409002 Whirlpool Pad
12WPW10344699 Whirlpool Collar
13W10414388 Whirlpool Clip
14WP3387747 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17W11299300 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22WPW10342188 Whirlpool Exhaust Pipe
23SCREEN - LINT. ALPHA W/FELT
24WP697770 Whirlpool Blower Cover Plate Seal
25W10508188 Whirlpool Drum
26W10853898 Whirlpool Screw
27W11193479 Whirlpool Seal
288066099 Whirlpool Bracket
29WP693995 Whirlpool Screw
30WPW10211896 Whirlpool Duct Lint
31280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
32FUSE-THRML
33WP8557403 Whirlpool Thermostat
34WP3387223 Whirlpool Electrode Assembly
35WPW10211911 Whirlpool Housing
36W11712678 Whirlpool Bulkhead Assembly
37WP697772 Whirlpool Dryer Blower Wheel
38WP8577274 Whirlpool Dryer Thermistor
39W11125442 Whirlpool Outer Grille
40W10211899 Whirlpool Seal
41W10416098 Whirlpool Baffle Assembly
42W10802681 Whirlpool Box Assembly
