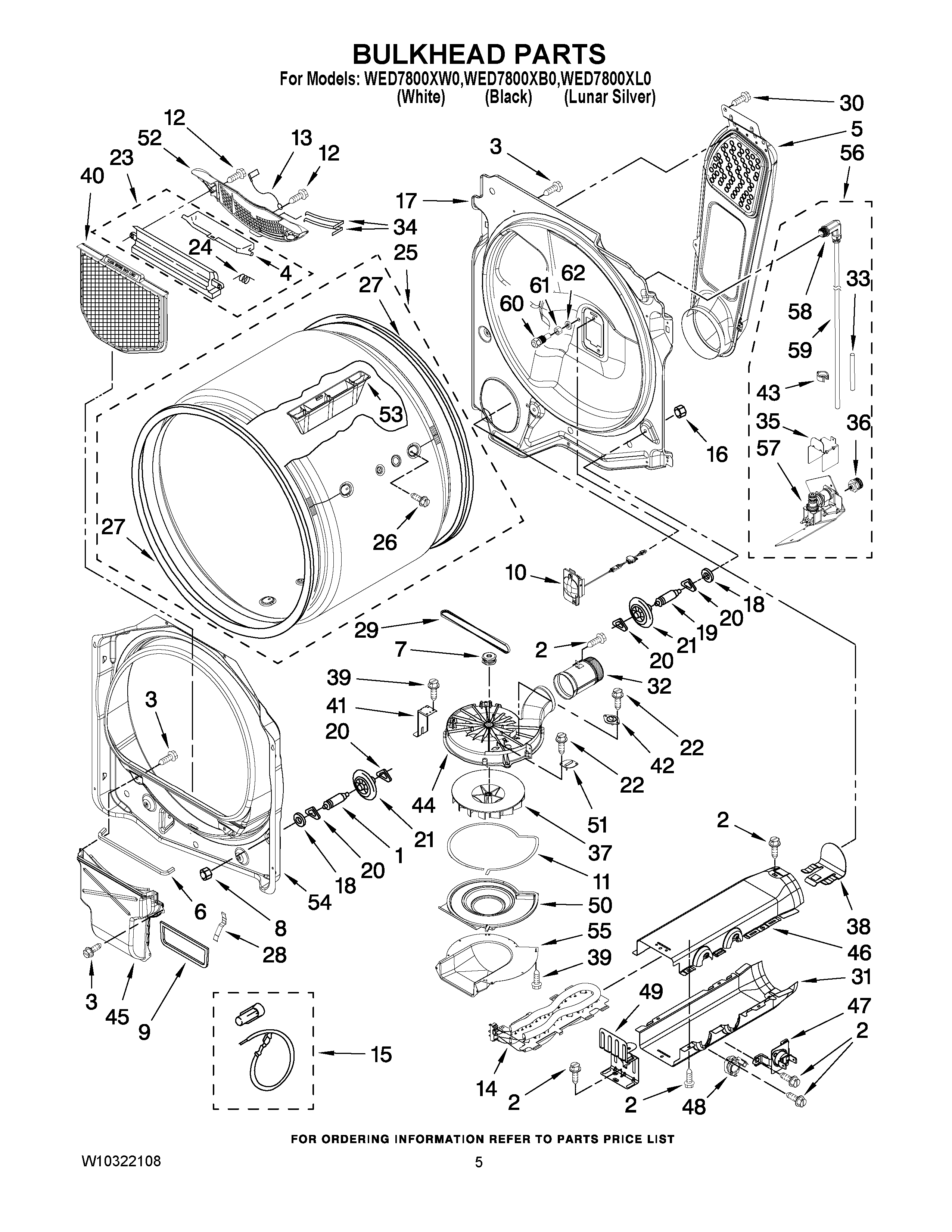

WED7800XL0 03 – BULKHEAD PARTS

WED7800XL0 03 – BULKHEAD PARTS

Written by

in

WED7800XL0 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP90767 Whirlpool Screw
3WP3390631 Whirlpool Screw
4W11222846 Whirlpool Door
5AIR DUCT ASSEMBLY
6WP697813 Whirlpool Seal
7WP8544739 Whirlpool Motor Pulley
8WPW10080210 Whirlpool Nut
9SEAL, LINT DUCT
10WPW10299173 Whirlpool LED Module
11WP8573068 Whirlpool Seal Gasket
12WP3387230 Whirlpool Screw
13Ground-Sensor
14WP8544771 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17W10139797 Whirlpool Bulkhead
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
223350424 Whirlpool Screw
23W11129408 Whirlpool Out Housing
24WP3394986 Whirlpool Spring
25W10549614 Whirlpool Drum
26W10853898 Whirlpool Screw
27SEAL-DOOR
288573070 Whirlpool Clip
29WP8544742 Whirlpool Dryer Blower Belt
30WP693995 Whirlpool Screw
31HOUSING TAB, HEATER BOX
32EXHAUST PIPE
33WPL W10159631
34WP3387223 Whirlpool Electrode Assembly
35W10160575 Whirlpool Cover Assembly
36W10859554 Whirlpool Coupler
37WP8544737 Whirlpool Wheel Assembly
388544776 Whirlpool Clip Assembly
39WPW10109200 Whirlpool Screw
40W10120998 Whirlpool Dryer Lint Screen Filter
41BRACKET, BLOWER HOUSING (2)
42WP8577274 Whirlpool Dryer Thermistor
43W10044599 Whirlpool Clip
44HOUSING, BLOWER
45LINT DUCT ASSEMBLY
46WP8544769 Whirlpool Box
47280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48WP8557403 Whirlpool Thermostat
49BRACKET, HEATER BOX
50WP8544719 Whirlpool Cover Assembly
51WP3390719 Whirlpool Dryer Thermal Fuse
52W11117302 Whirlpool Grille Out
538563860 Whirlpool Drum Baffle
54WP8557244 Whirlpool Bulkhead Assembly
55DUCT, INLET BLOWER
56WPW10130506 Whirlpool Valve
57WPW10129424 Whirlpool Valve
58W10410316 Whirlpool Hose
59WPL W10133422
60WPW10277503 Whirlpool Nozzle
61W10044628 Whirlpool Nut
62W10044579 Whirlpool Washer
