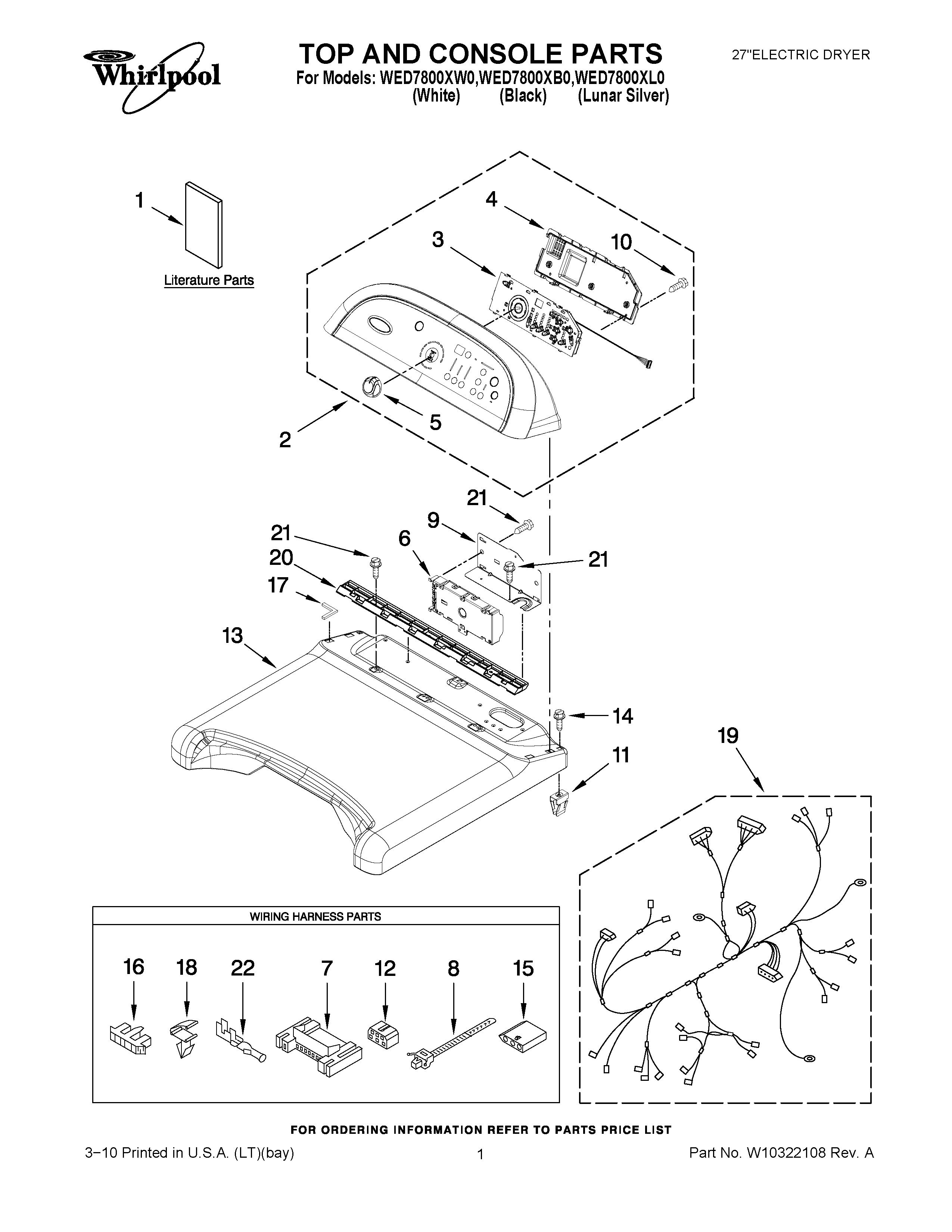

WED7800XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1GUIDE, USE & CARE
1TECH SHEET
2PANEL, CONSOLE (SILVER)
2PANEL, CONSOLE (BLACK)
2PANEL, CONSOLE (WHITE)
3WPW10298625 Whirlpool Electronic Control Board
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6CONTROL ELECTRONIC
73395683 Whirlpool Connector
8WP3391018 Whirlpool Wire Tie
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10112673 Whirlpool Clip
12Block, Disconnect
13TOP (SILVER)
13TOP (BLACK)
13TOP
14W10131402 Whirlpool Screw
153936144 Whirlpool Connector
16Connector, Timer
17W10185554 Whirlpool Seal Assembly
18WP3394427 Whirlpool Clip
19W10319804 Whirlpool Wire Harness
20Bracket, Console
21WP33001882 Whirlpool Screw
22WP94614 Whirlpool Terminal
