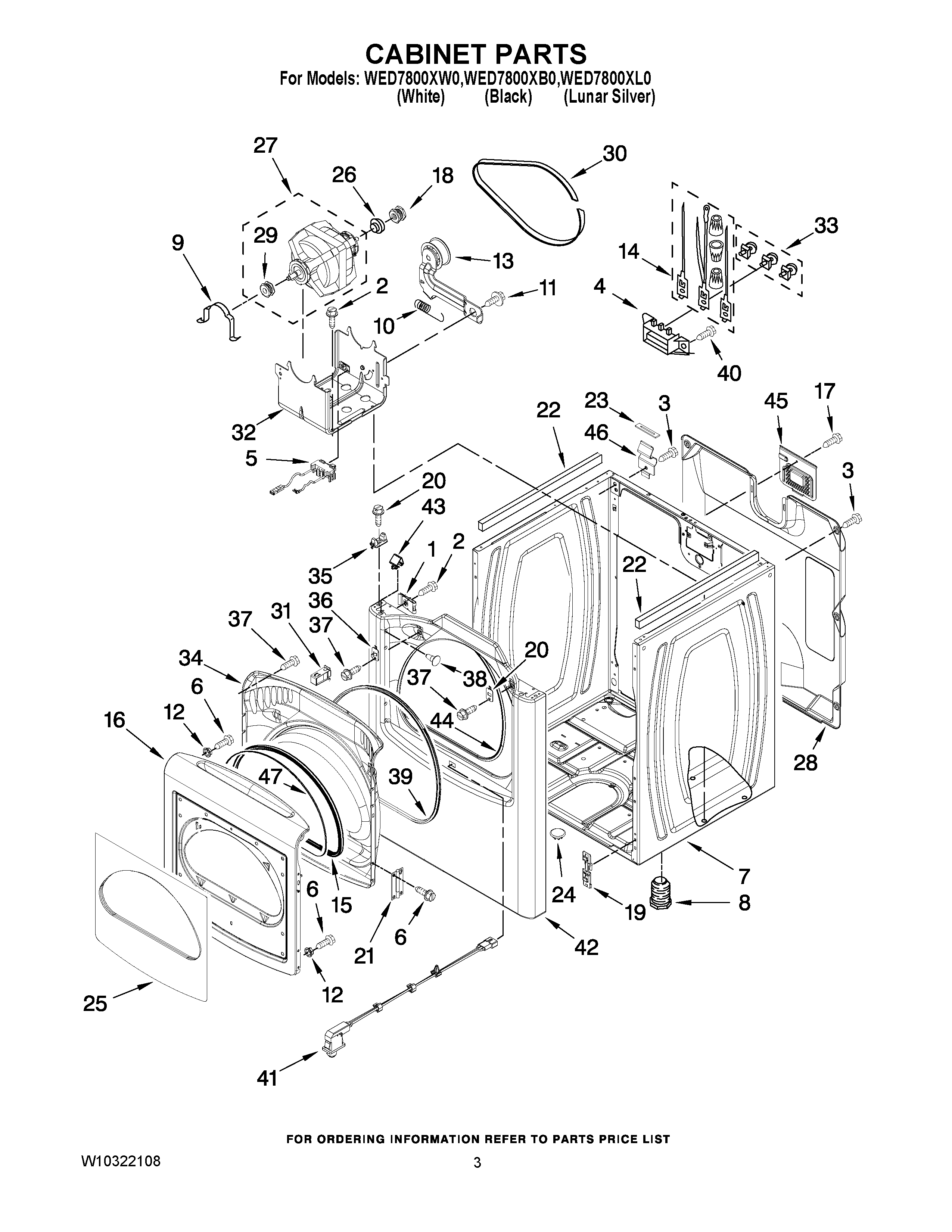

WED7800XW0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1Clip, Ground (2)
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WPW10411937 Whirlpool Switch
6WP488627 Whirlpool Refrigerator Screw
7CABINET (SILVER)
7W10223154 Whirlpool Cabinet Assembly
7CABINET (BLACK)
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WP308499 Whirlpool Nut
13WPW10547292 Whirlpool Dryer Idler Pulley
14279318 Whirlpool Terminal
15W10076050 Whirlpool Gasket
16DOOR, OUTER (SILVER)
16DOOR, OUTER (BLACK)
16DOOR, OUTER (WHITE)
17W10850756 Whirlpool Screw
18WP8547171 Whirlpool Motor Pulley
19W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20WPW10111888 Whirlpool Plate Assembly
21HINGE, ASSEMBLY (2) (BLACK)
21WP8565018 Whirlpool Hinge
21HINGE, ASSEMBLY (2) (SILVER)
22WPW10157932 Whirlpool Seal Foam
2318849 Whirlpool Pad
248578560 Whirlpool Plug
25WINDOW, OUTER DOOR
26WP3393657 Whirlpool Belt Retainer
27WPW10448896 Whirlpool Drive Motor
28Panel, Rear
29PULLEY, BLOWER
30WP8547157 Whirlpool Dryer Drum Drive Belt
31WPW10111905 Whirlpool Dryer Door Catch
32WPW10308685 Whirlpool Base
33279393 Whirlpool Terminal Block Screw and Nut Kit
34DOOR, INNER (BLACK)
34DOOR, INNER (WHITE)
35WP8568303 Whirlpool Lock Assembly
36W10295405 Whirlpool Strike
37WP3400805 Whirlpool Screw Assembly
38PLUG, HOLE
39W10239307 Whirlpool Door Seal
40WP308685 Whirlpool Microwave Screw
41W10201785 Whirlpool See Note Substitutions by Model Number
42W10312757 Whirlpool Oven Panel
42FRONT PANEL (BLACK)
42FRONT PANE
43WP8576625 Whirlpool Lock
44W10044490 Whirlpool Seal Assembly
45WPW10110241 Whirlpool Cover Assembly
46WP8066217 Whirlpool Hinge
47WPL 8558846
