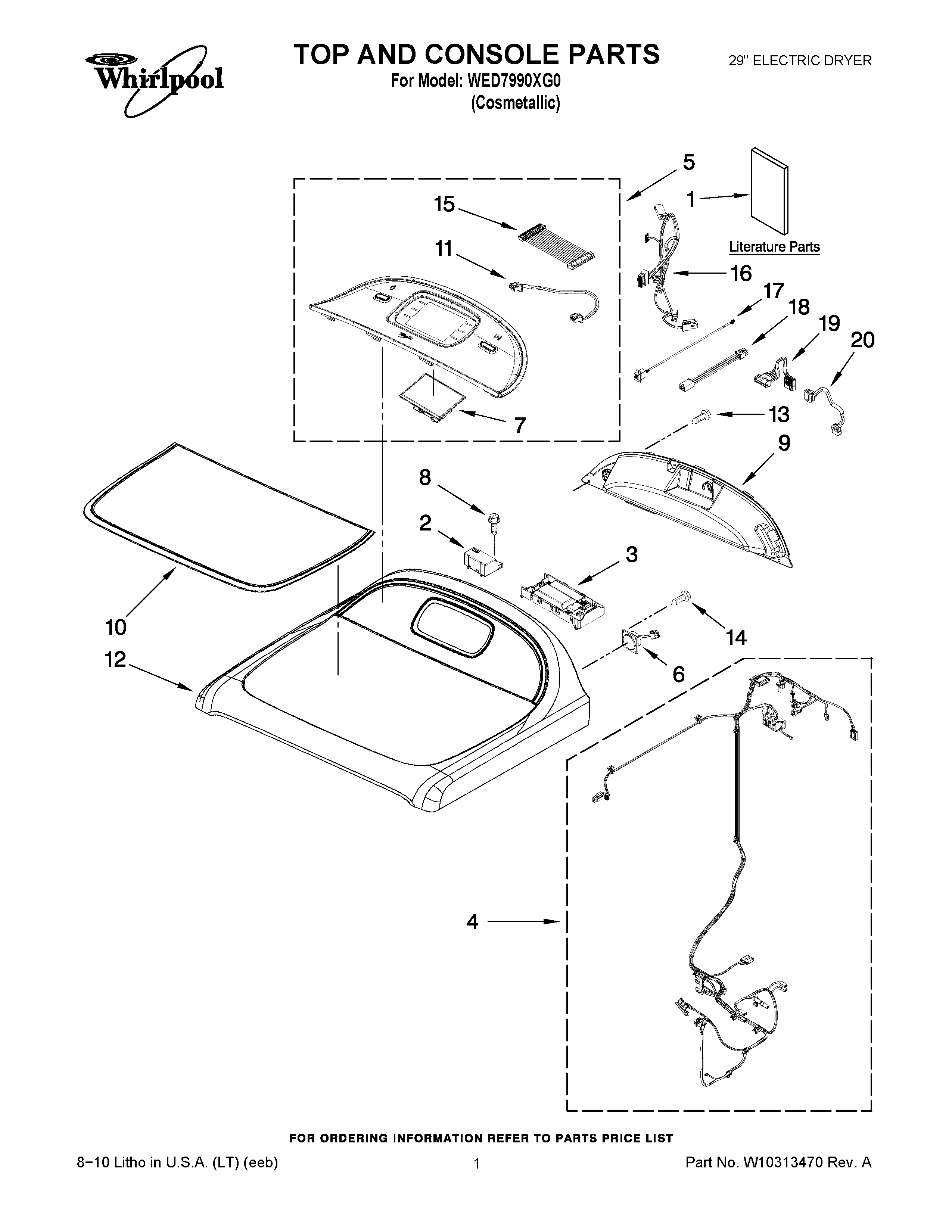

WED7990XG0 01 – TOP AND CONSOLE PARTS

WED7990XG0 01 – TOP AND CONSOLE PARTS

Written by

in

WED7990XG0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, DIAGNOSTIC GUIDE
1TECH SHEET
1GUIDE, USE & CARE
1GUIDE, QUICK START
2WPW10330449 Whirlpool Electronic Control Board + Core
3POWER SUPPLY
4W10280756 Whirlpool Wire Harness
5CONSOLE, FASCIA ASSEMBLY (COMPLETE)
6SPEAKER ASSEMBLY
7LCD ASSEMBLY USER INTERFACE
8W11311945 Whirlpool Refrigerator Screw
9PANEL, REAR CONSOLE
10PANEL ASSEMBLY TOP
11JUMPER, (TO HMI)
12TOP & CONSOLE ASSEMBLY
13WP488729 Whirlpool Refrigerator Door Screw
14SCREW, M2-0.89 X 10
15WIRE ASSEMBLY, MAIN CONNECTION
16JUMPER, USER INTERFACE
17JUMPER, UI TO USB
18JUMPER-CCU P14
19JUMPER-CCU P8
20JUMPER-CCU TO WIDE ISO
