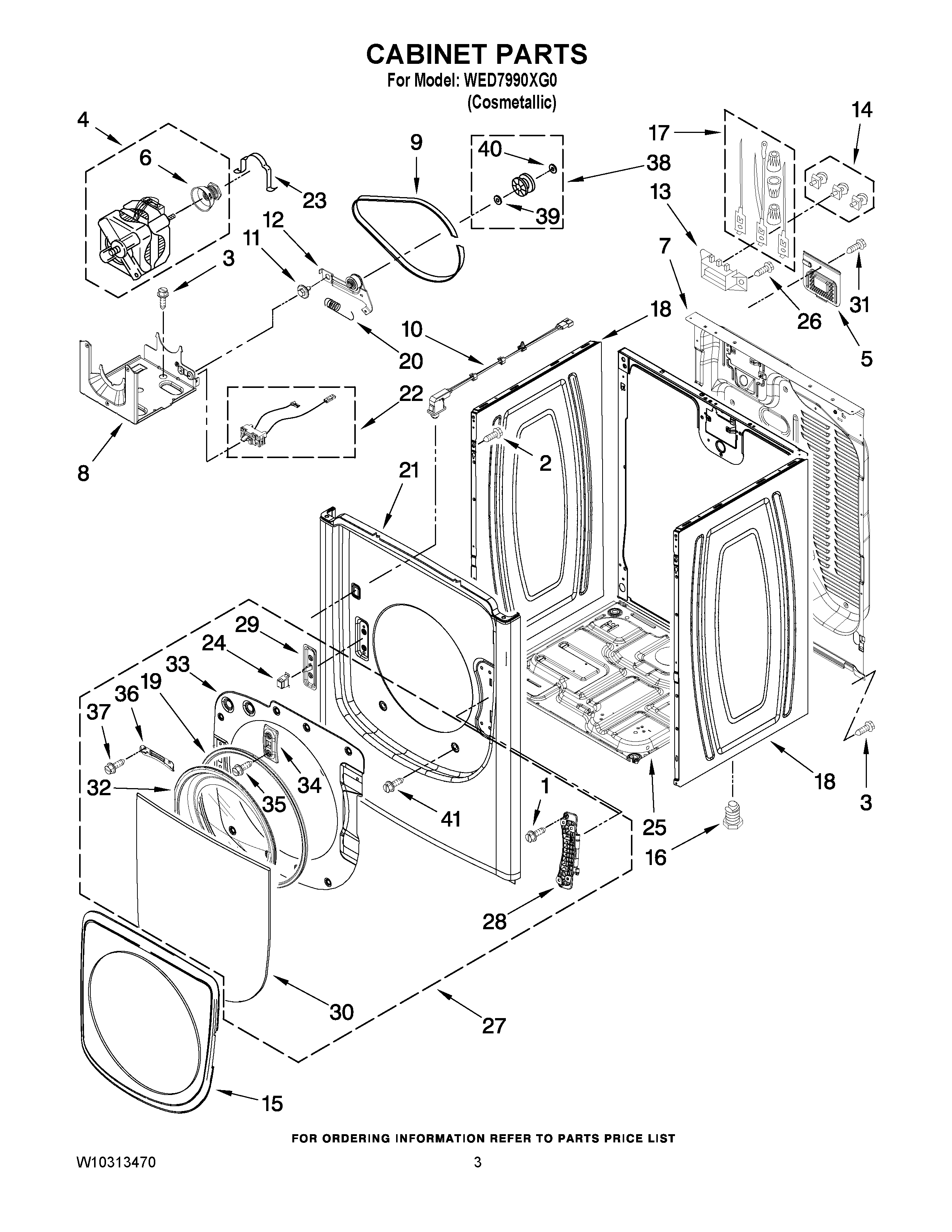

WED7990XG0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	SCREW, M5-0.5 X 10
2	SCREW
3	WP693995 Whirlpool Screw
4	279787 Whirlpool Dryer Drive Motor
5	WPW10119283 Whirlpool Terminal Cover
6	W10837625 Whirlpool Dryer Motor Pulley
7	PANEL, REAR
8	W11481730 Whirlpool Bracket
9	661570V Whirlpool Dryer Drum Belt
10	WPW10338189 Whirlpool Door Switch
11	WP3389420 Whirlpool Screw
12	W10837240 Whirlpool Dryer Idler Pulley
13	WP3397659 Whirlpool Terminal Block
14	279393 Whirlpool Terminal Block Screw and Nut Kit
15	DOOR OUTER ASSEMBLY
17	279318 Whirlpool Terminal
18	PANEL, SIDE
19	W11126230 Whirlpool Seal
20	WPW10446781 Whirlpool Spring
21	PANEL, FRONT
22	WPW10411937 Whirlpool Switch
23	CLAMP
24	W11240283 Whirlpool Catch Assembly
25	W11215531 Whirlpool Base
27	DOOR INNER ASSEMBLY
28	HINGE, ASSEMBLY
29	STRIKE, DOOR
30	W11310036 Whirlpool Door Glass
31	W10850756 Whirlpool Screw
32	WINDOW OUTER DOOR
33	DOOR, INNER
34	BEZEL, DOOR CATCH
35	SCREW
36	W10208252 Whirlpool Retainer
37	WP3373329 Whirlpool Dishwasher Screw
38	279640 Whirlpool Dryer Idler Pulley Kit
39	WPW10121334 Whirlpool Washer
40	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
41	WP308685 Whirlpool Microwave Screw
