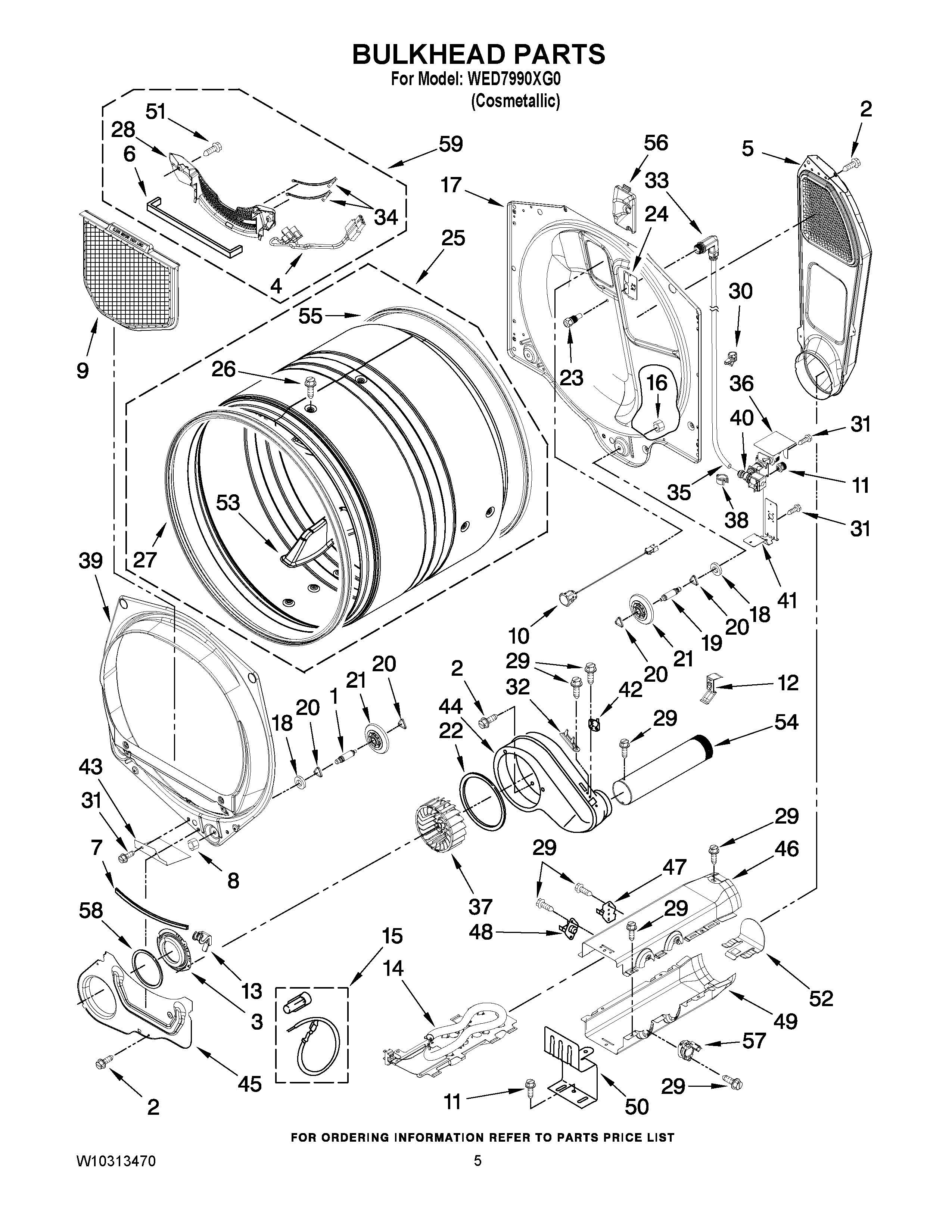

WED7990XG0 03 – BULKHEAD PARTS

WED7990XG0 03 – BULKHEAD PARTS

Written by

in

WED7990XG0 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3W10211901 Whirlpool Cover Assembly
4WPW10298258 Whirlpool Wire Harness
5WP3387911 Whirlpool Air Duct
6W11676493 Whirlpool Seal Assembly
7WP3387242 Whirlpool Seal
8WPW10080210 Whirlpool Nut
9SCREEN – LINT. ALPHA W/FELT
10DRUM LIGHT ASSEMBLY
11W10859554 Whirlpool Coupler
12W11684573 Whirlpool Clip Assembly
13W10414388 Whirlpool Clip
14WP8544771 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17BULKHEAD, REAR
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22SEAL, BLOWER COVER
23WPW10277503 Whirlpool Nozzle
24WPW10656504 Whirlpool Bracket
25W10541656 Whirlpool Drum
26W10853898 Whirlpool Screw
27W11193479 Whirlpool Seal
28W11125442 Whirlpool Outer Grille
30WP3391018 Whirlpool Wire Tie
31WP90767 Whirlpool Screw
32WP3392519 Whirlpool Dryer Thermal Fuse
34WP3387223 Whirlpool Electrode Assembly
35WPW10347739 Whirlpool Hose
36W10184825 Whirlpool Cover
37WP697772 Whirlpool Dryer Blower Wheel
38W10044599 Whirlpool Clip
39W10673491 Whirlpool Bulkhead Assembly
40W10815373 Whirlpool Valve
41BRACKET, VALVE
42WP8577274 Whirlpool Dryer Thermistor
43W11257251 Whirlpool Shield
44WPW10211911 Whirlpool Housing
45WPW10211896 Whirlpool Duct Lint
46WP8544769 Whirlpool Box
47279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48THRMST-FIX
49HOUSING TAB, HEATER BOX
508066099 Whirlpool Bracket
51WP3387230 Whirlpool Screw
528544776 Whirlpool Clip Assembly
53W10280771 Whirlpool Drum Baffle
54279936 Whirlpool Exhaust Pipe
55280114 Whirlpool Dryer Drum Seal
56WPW10208422 Whirlpool Dryer Light Deflector Cover
57WP8557403 Whirlpool Thermostat
58W10211899 Whirlpool Seal
59HOUSNG-DRYER LINT
