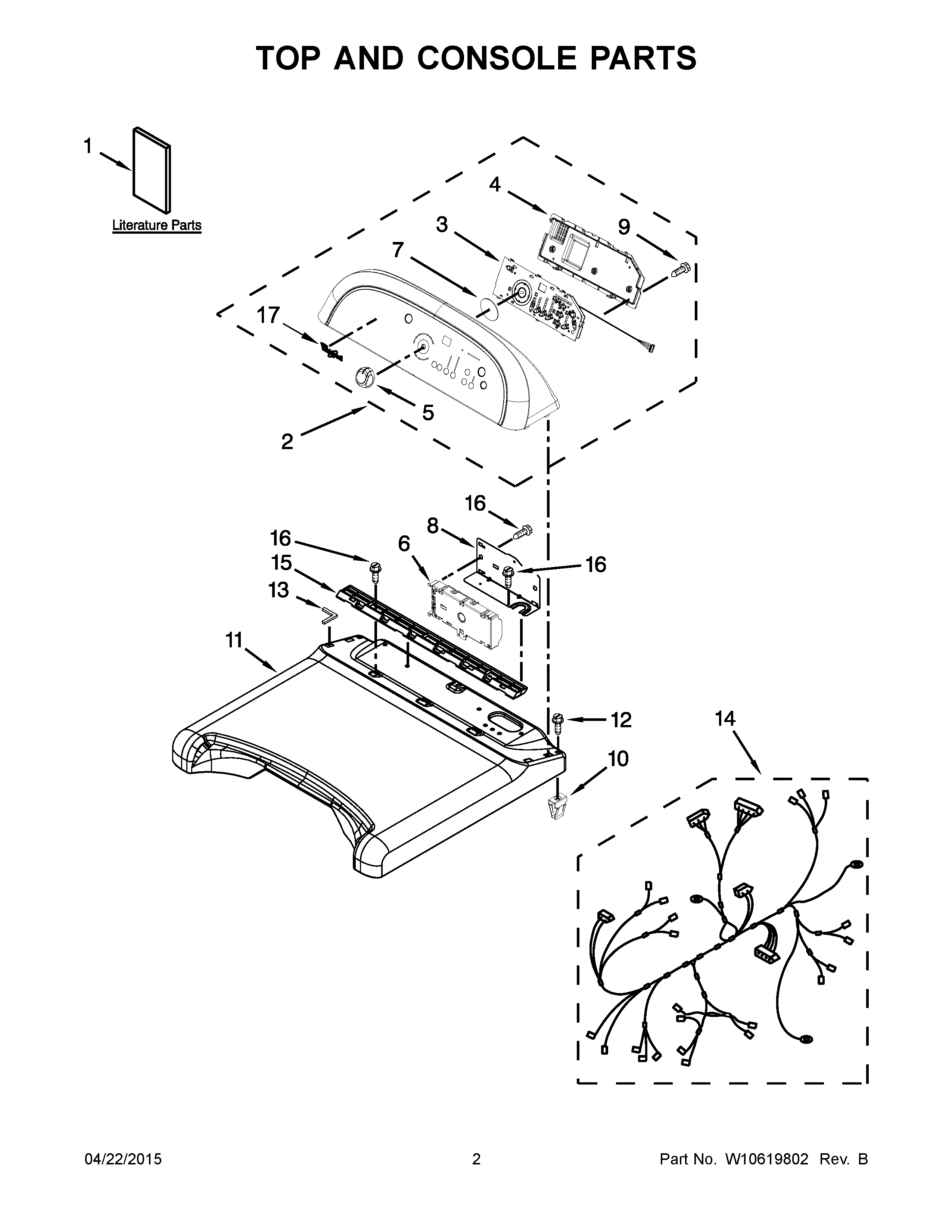

WED8000BW0 02 – TOP AND CONSOLE PARTS

WED8000BW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED8000BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1GUIDE, USE AND CARE
1CWIRING DIAGRAM
1AINSTRUCTIONS, INSTALLATION
2ASSEMBLY, CONSOLE (WHITE)
3WPW10566876-includeCORE Whirlpool WPW10566876 Refrigerator Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10576632 Whirlpool Dishwasher Knob
6WPW10532428-includeCORE Whirlpool WPW10532428 Washer Electronic Control Board + Core
7SEAL, USER INTERFACE
8BRACKET, MACHINE CONTROLLER
9WP4449745 Whirlpool Screw
10W10112673 Whirlpool Clip
11TOP (WHITE)
12W10131402 Whirlpool Screw
13W10185554 Whirlpool Seal Assembly
14W10393459 Whirlpool Wire Harness
15Bracket, Console
16WP90767 Whirlpool Screw
17WPW10393264 Whirlpool Refrigerator Nameplate
