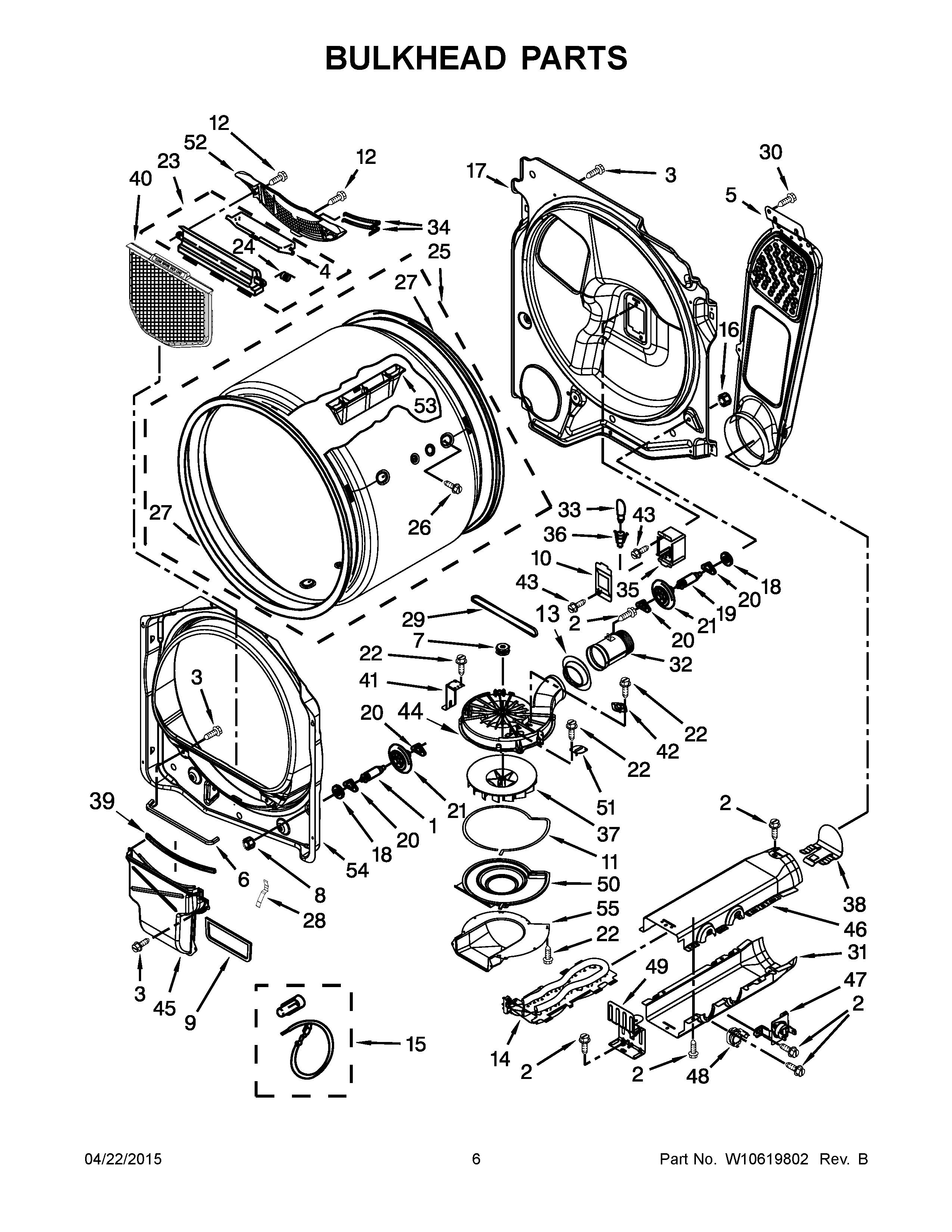

WED8000BW0 04 – BULKHEAD PARTS

WED8000BW0 04 – BULKHEAD PARTS

Written by

in

WED8000BW0 04 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP90767 Whirlpool Screw
3WP3390631 Whirlpool Screw
4W11222846 Whirlpool Door
5AIR DUCT ASSEMBLY
6WP697813 Whirlpool Seal
7WP8544739 Whirlpool Motor Pulley
8WPW10080210 Whirlpool Nut
9SEAL, LINT DUCT
10W11226088 Whirlpool Lens Assembly
11WP8573068 Whirlpool Seal Gasket
12WP3387230 Whirlpool Screw
13W10475158 Whirlpool Shield
14WP8544772 Whirlpool Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17WP8557234 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
223350424 Whirlpool Screw
23W11129408 Whirlpool Out Housing
24WP3394986 Whirlpool Spring
25W10549614 Whirlpool Drum
26W10853898 Whirlpool Screw
27SEAL-DOOR
288573070 Whirlpool Clip
29WP8544742 Whirlpool Dryer Blower Belt
30WP693995 Whirlpool Screw
31HOUSING TAB, HEATER BOX
32PIPE, EXHAUST
33WP22002263 Whirlpool Dryer 10W Light Bulb
34WP3387223 Whirlpool Electrode Assembly
353977373 Whirlpool Bracket
36W11222979 Whirlpool Socket
37WP8544737 Whirlpool Wheel Assembly
388544776 Whirlpool Clip Assembly
40W10120998 Whirlpool Dryer Lint Screen Filter
41BRACKET, BLOWER HOUSING (2)
42WP8577274 Whirlpool Dryer Thermistor
43WP488729 Whirlpool Refrigerator Door Screw
44HOUSING, BLOWER
45LINT DUCT ASSEMBLY
46WP8544769 Whirlpool Box
47279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48WP8557403 Whirlpool Thermostat
49BRACKET, HEATER BOX
50WP8544719 Whirlpool Cover Assembly
51WP3390719 Whirlpool Dryer Thermal Fuse
52W11117302 Whirlpool Grille Out
538563860 Whirlpool Drum Baffle
54WP8557244 Whirlpool Bulkhead Assembly
55DUCT, INLET BLOWER
