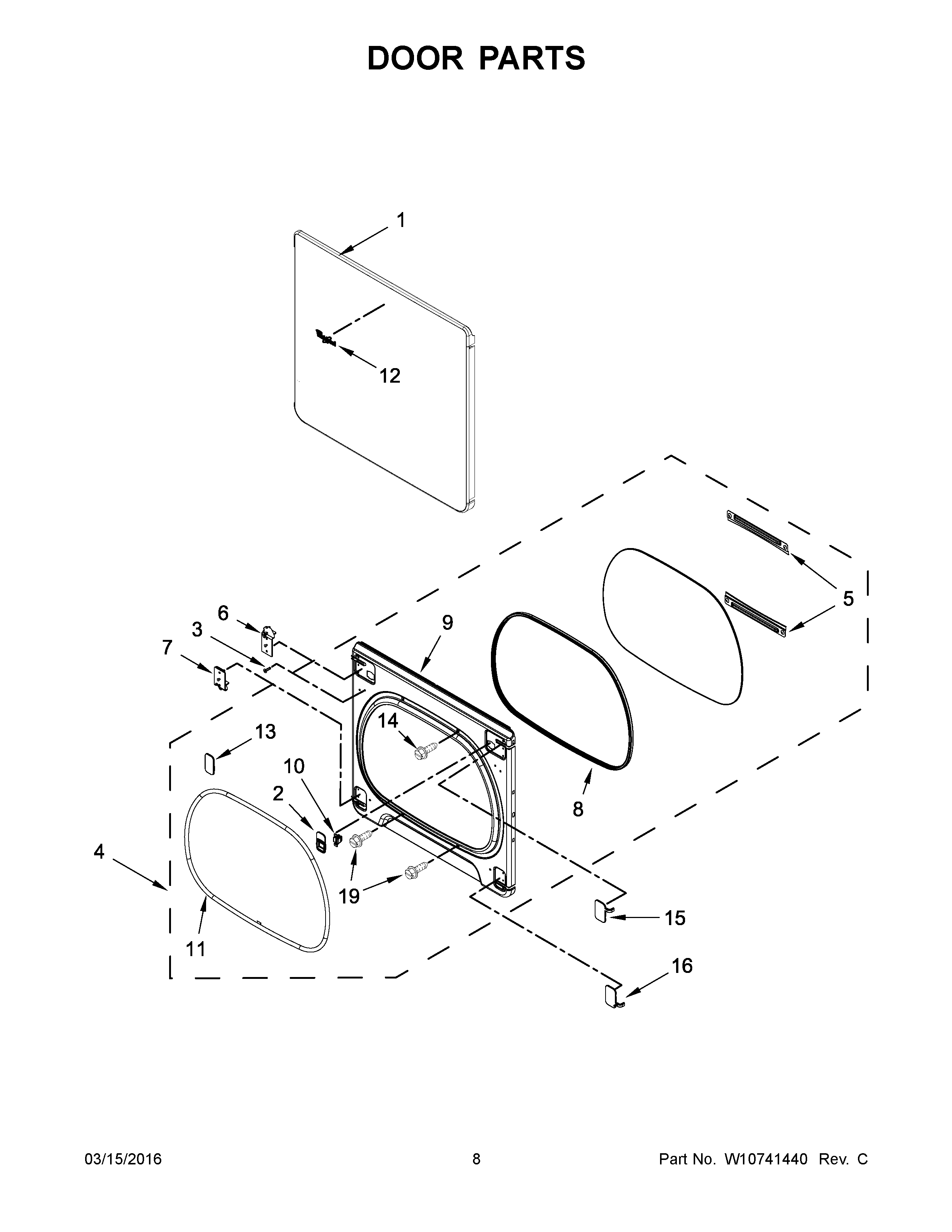

WED8000DW0 05 – DOOR PARTS

WED8000DW0 05 – DOOR PARTS

Written by

in

WED8000DW0 05 – DOOR PARTS

Products

PositionProduct
1W10614976 Whirlpool Door
2W11103932 Whirlpool Bezel Assembly
3SCREW
4W10614997 Whirlpool Door
5RETAINER, WINDOW
6W10850044 Whirlpool Hinge
7W10850024 Whirlpool Hinge Assembly
8W10726214 Whirlpool Seal
9DOOR, INNER (WHITE)
10W11429587 Whirlpool Catch Assembly
11W10763835 Whirlpool Door Seal Assembly
12WPW10393264 Whirlpool Refrigerator Nameplate
13W10631410 Whirlpool Plate
14WP488627 Whirlpool Refrigerator Screw
15W10631395 Whirlpool Cover Assembly
16W10631396 Whirlpool Cover
