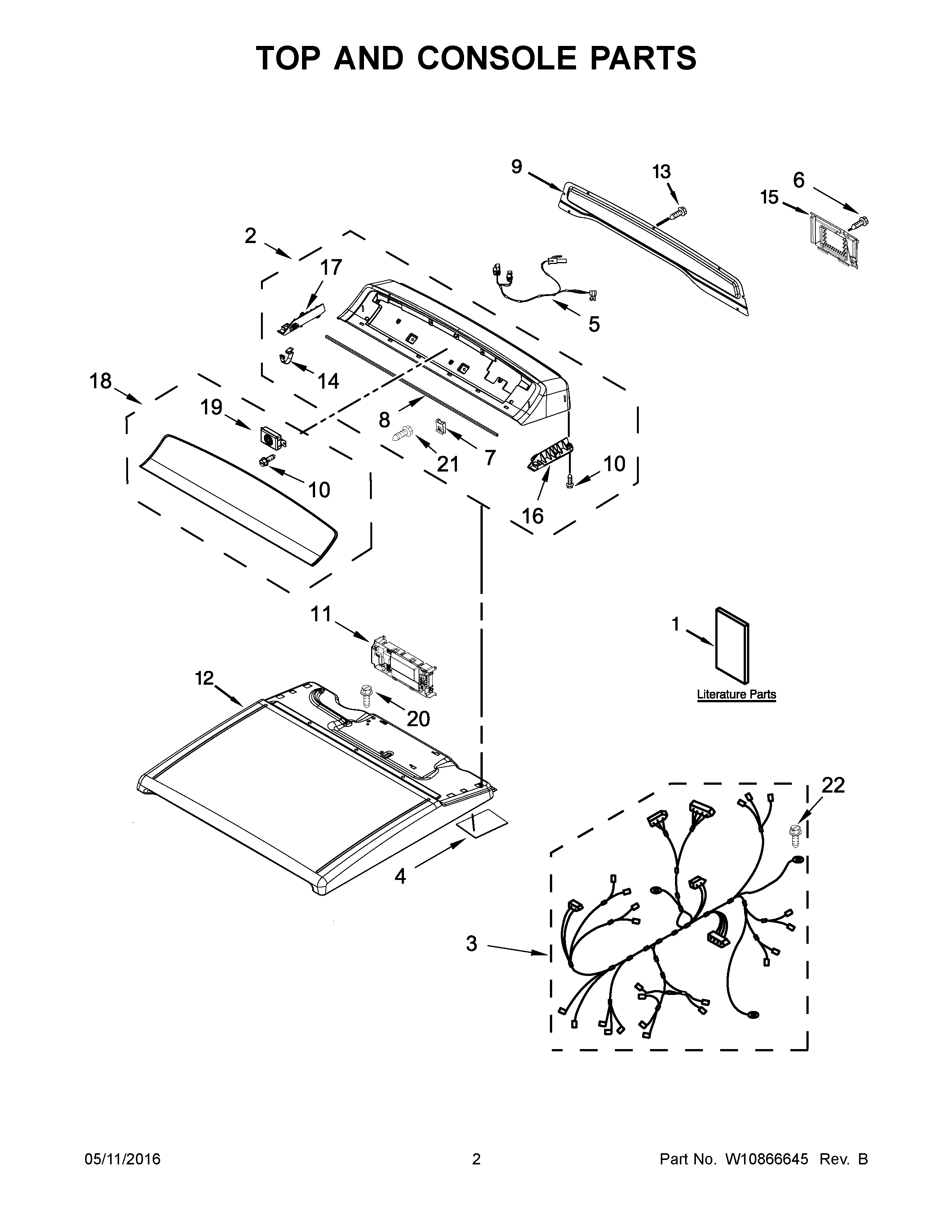

WED8000DW3 02 – TOP AND CONSOLE PARTS

WED8000DW3 02 – TOP AND CONSOLE PARTS

Written by

in

WED8000DW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1DWIRING DIAGRAM
1CQUICKSTART GUIDE
1BTECH SHEET
1AGUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
2W11050696 Whirlpool Console
3W10777438 Whirlpool Wire Harness
4W11668653 Whirlpool Sound Panel
5W10593673 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11W10802464 Whirlpool Electronic Control Board + Core
12W11227373 Whirlpool Top
13SCREW
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11133029 Whirlpool Overlay Assembly
19W11123146 Whirlpool Speaker
20W10850756 Whirlpool Screw
21WP3390631 Whirlpool Screw
22WP9740848 Whirlpool Dishwasher Screw
