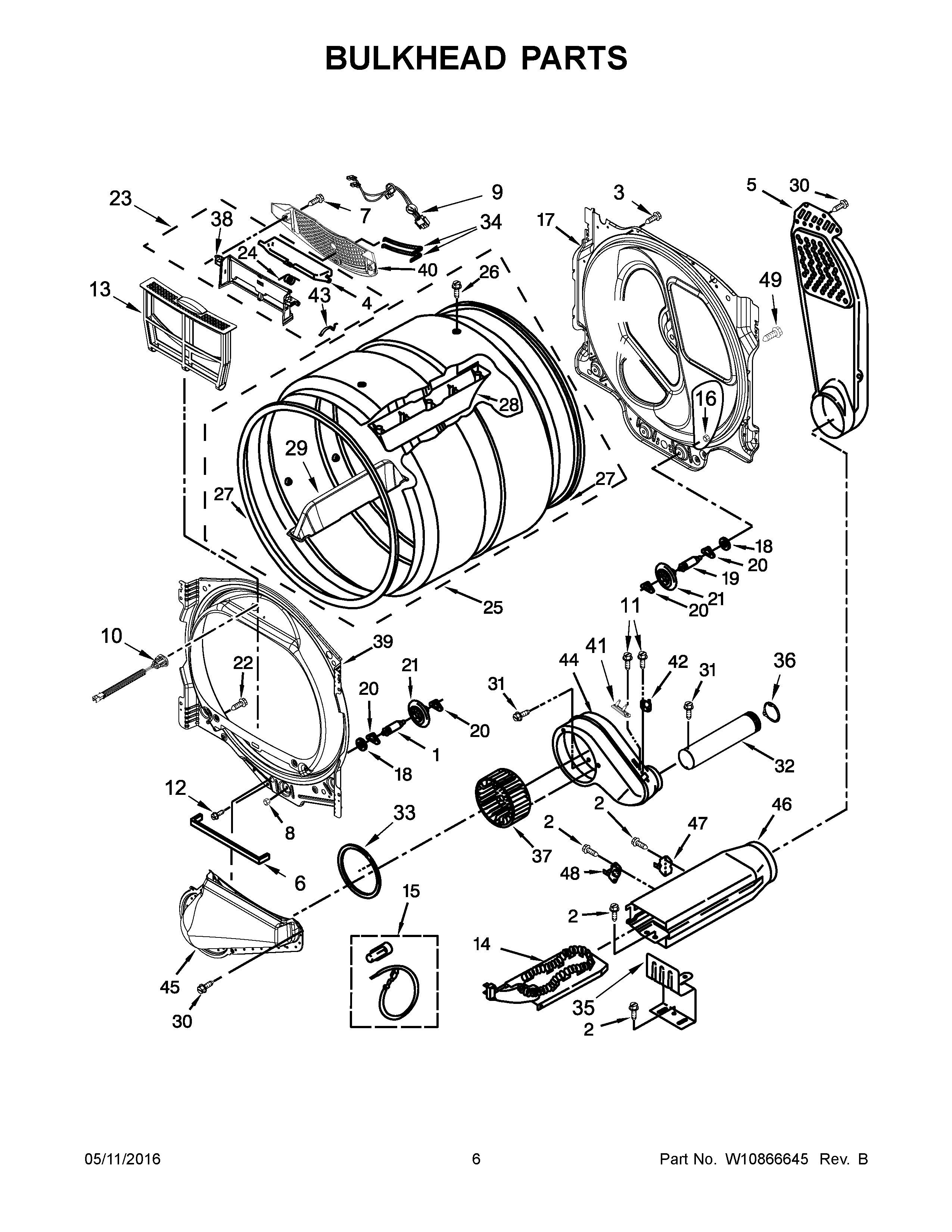

WED8000DW3 04 – BULKHEAD PARTS

WED8000DW3 04 – BULKHEAD PARTS

Written by

in

WED8000DW3 04 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP489463 Whirlpool Refrigerator Screw
3WP488729 Whirlpool Refrigerator Door Screw
5W11104017 Whirlpool Air Duct Assembly
6SEAL, HOUSING OUTLET TO LINT DUCT
7WP3387230 Whirlpool Screw
8WPW10080210 Whirlpool Nut
9W11161899 Whirlpool Wire
10WPW10629046 Whirlpool Light Bulb
12WP308685 Whirlpool Microwave Screw
13W10859086 Whirlpool Dryer Lint Screen
14W11025156 Whirlpool Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17W11135007 Whirlpool Dryer Bulkhead
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22W11568617 Whirlpool Screw
24W11242876 Whirlpool Out Housing
25W10626460 Whirlpool Drum
26W10853898 Whirlpool Screw
27W11189144 Whirlpool Felt Seal
28W10767090 Whirlpool Drum Baffle
29W10767074 Whirlpool Drum Baffle
30WP693995 Whirlpool Screw
31WP90767 Whirlpool Screw
32W10608817 Whirlpool Exhaust Pipe
33WP697770 Whirlpool Blower Cover Plate Seal
34W11165163 Whirlpool Electrode Assembly
358066099 Whirlpool Bracket
36WPW10344699 Whirlpool Collar
37WP697772 Whirlpool Dryer Blower Wheel
39W10861007 Whirlpool Bulkhead Assembly
40W10608813 Whirlpool Outside Grille
41FUSE-THRML
42WP8577274 Whirlpool Dryer Thermistor
43W10608815 Whirlpool Clip
44W11246350 Whirlpool Housing
45W10868982 Whirlpool Lint Duct
46W10802681 Whirlpool Box Assembly
47279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48WP8557403 Whirlpool Thermostat
49W10891954 Whirlpool Screw
