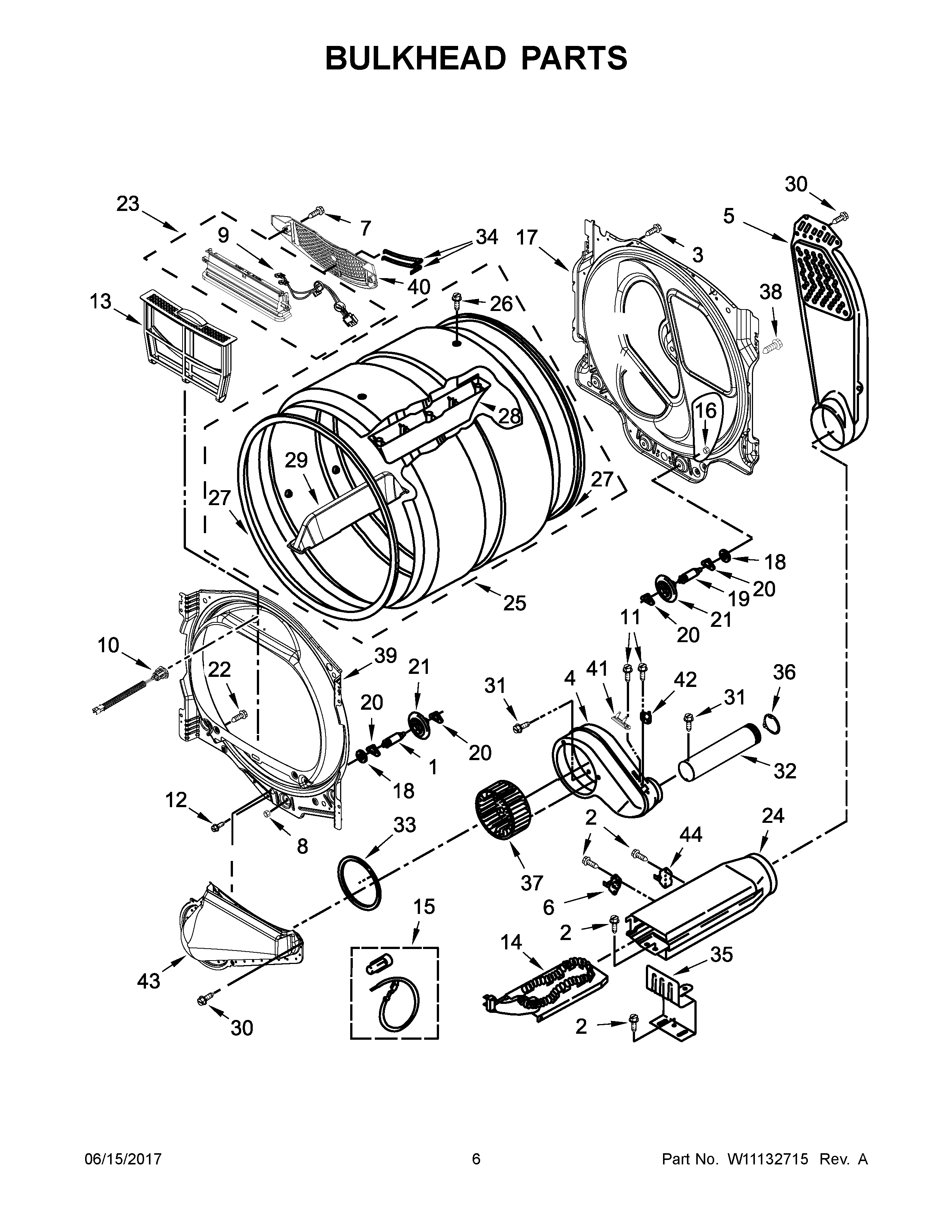

WED8000DW4 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP489463 Whirlpool Refrigerator Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	W11246350 Whirlpool Housing
5	W11104017 Whirlpool Air Duct Assembly
6	WP8557403 Whirlpool Thermostat
7	WP3387230 Whirlpool Screw
8	WPW10080210 Whirlpool Nut
9	W11161899 Whirlpool Wire
10	WPW10629046 Whirlpool Light Bulb
12	WP308685 Whirlpool Microwave Screw
13	W10859086 Whirlpool Dryer Lint Screen
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11135007 Whirlpool Dryer Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	W11568617 Whirlpool Screw
23	W11242876 Whirlpool Out Housing
24	W10802681 Whirlpool Box Assembly
25	W10626460 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	W11189144 Whirlpool Felt Seal
28	W10767090 Whirlpool Drum Baffle
29	W10767074 Whirlpool Drum Baffle
30	WP693995 Whirlpool Screw
31	WP90767 Whirlpool Screw
32	W10608817 Whirlpool Exhaust Pipe
33	W10868675 Whirlpool Seal
34	W11165163 Whirlpool Electrode Assembly
35	8066099 Whirlpool Bracket
36	WPW10344699 Whirlpool Collar
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10891954 Whirlpool Screw
39	W10861007 Whirlpool Bulkhead Assembly
40	W10608813 Whirlpool Outside Grille
41	FUSE-THRML
42	WP8577274 Whirlpool Dryer Thermistor
43	W10868982 Whirlpool Lint Duct
44	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
