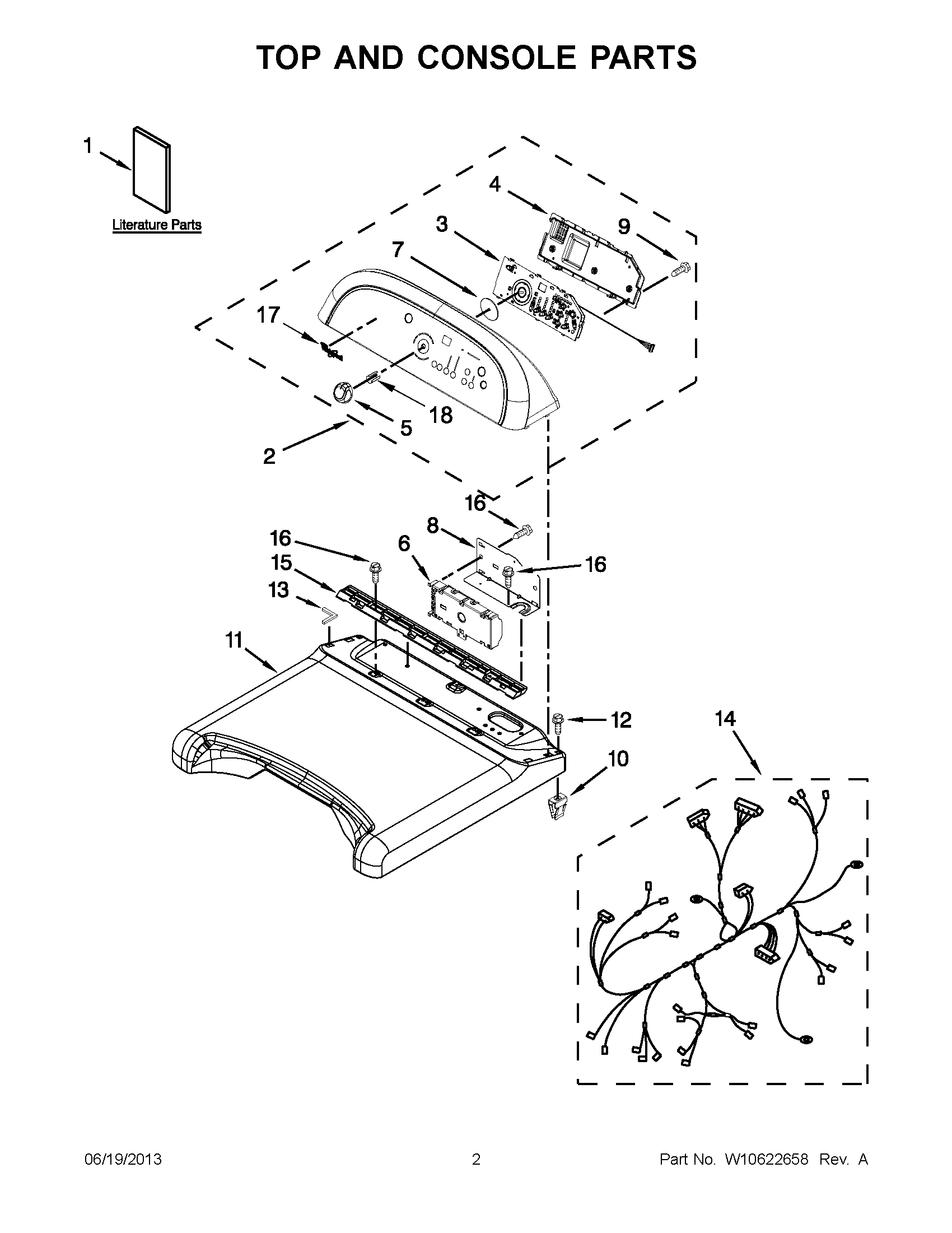

WED8100BW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE AND CARE
1WIRING DIAGRAM
1TECH SHEET
1INSTRUCTIONS, INSTALLATION
2ASSEMBLY, CONSOLE (WHITE)
3WPW10566876-includeCORE Whirlpool WPW10566876 Refrigerator Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10576632 Whirlpool Dishwasher Knob
6WPW10532428-includeCORE Whirlpool WPW10532428 Washer Electronic Control Board + Core
7SEAL, USER INTERFACE
8BRACKET, MACHINE CONTROLLER
9WP4449745 Whirlpool Screw
10W10112673 Whirlpool Clip
11TOP
12W10131402 Whirlpool Screw
13W10185554 Whirlpool Seal Assembly
14W10393459 Whirlpool Wire Harness
15Bracket, Console
16WP33001882 Whirlpool Screw
17WPW10393264 Whirlpool Refrigerator Nameplate
18SPRING, CLIP KNOB
