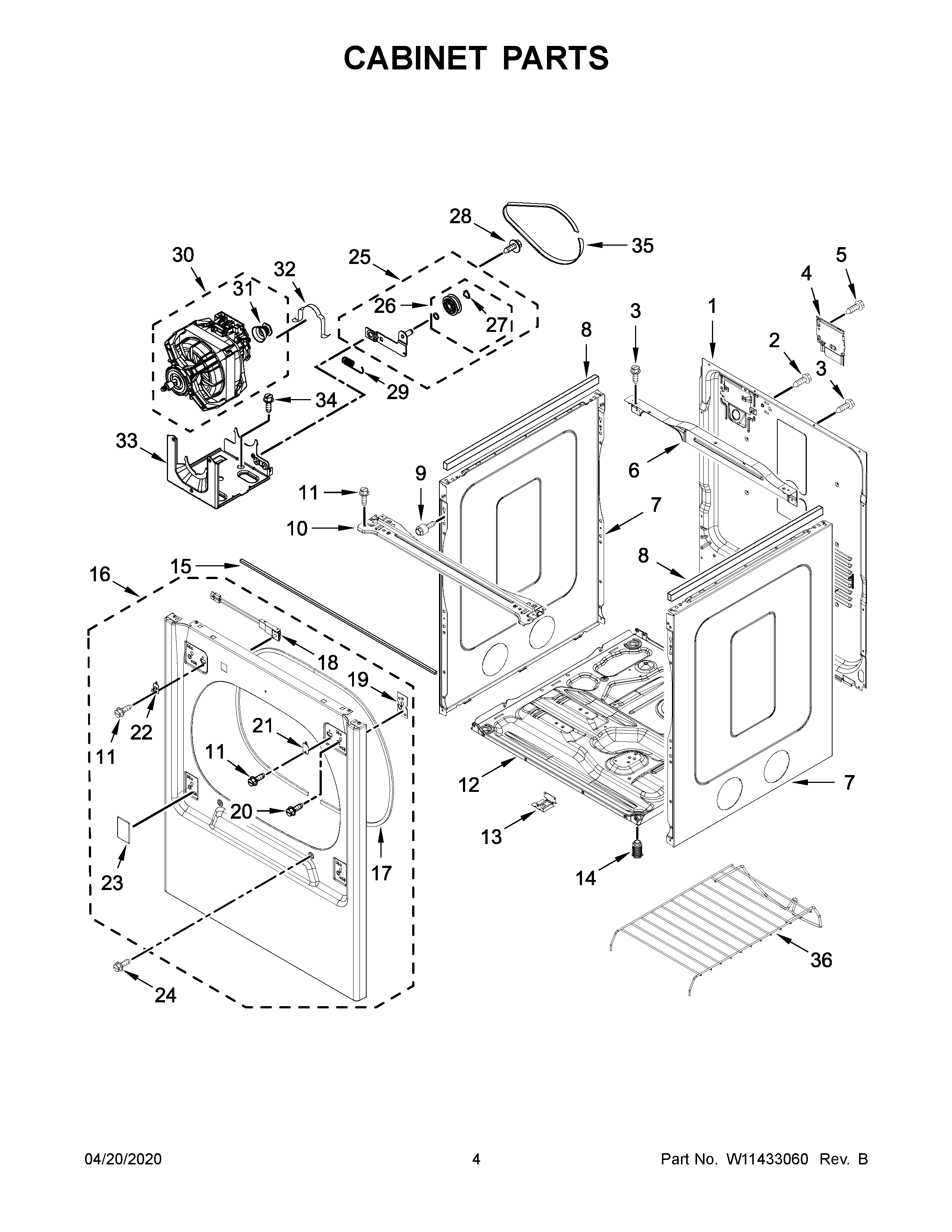

WED8120HC0 03 – CABINET PARTS

Products

Position	Product
1	W10824896 Whirlpool Rear Panel
2	W10850756 Whirlpool Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	WPW10316167 Whirlpool Dishwasher Terminal Cover
5	WP3390631 Whirlpool Screw
6	W10622391 Whirlpool Bracket
7	W10633648 Whirlpool Cabinet Assembly
7A	W10681830 Whirlpool Panel
8	W10316616 Whirlpool Seal
9	W10636208 Whirlpool Screw
10	BRACE, CAB AND SEAL ASSEMBLY
11	W10891954 Whirlpool Screw
12	W10613683 Whirlpool Base
13	SPACER BRACKET, LOWER
14	49621 Whirlpool Leveling Feet
15	W11406199 Whirlpool Seal
16	W10875869 Whirlpool Panel
16A	W10875891 Whirlpool Panel
17	WP3387242 Whirlpool Seal
18	W11036551 Whirlpool Door Switch
19	BRACKET, HINGE
20	SCREW
21	WPW10111888 Whirlpool Plate Assembly
22	W11163826 Whirlpool Strike
23A	W10596965 Whirlpool Plug
23	W10590953 Whirlpool Plug
24	WP308685 Whirlpool Microwave Screw
25	W10837240 Whirlpool Dryer Idler Pulley
26	279640 Whirlpool Dryer Idler Pulley Kit
27	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
28	WP3389420 Whirlpool Screw
29	WPW10446781 Whirlpool Spring
30	W11105178 Whirlpool Drive Motor
31	W11568637 Whirlpool Motor Pulley
32	CLAMP
33	W10578053 Whirlpool Base Assembly
34	SCREW
35	W10849499 Whirlpool Belt
36	W10864105 Whirlpool Dryer Drying Rack
