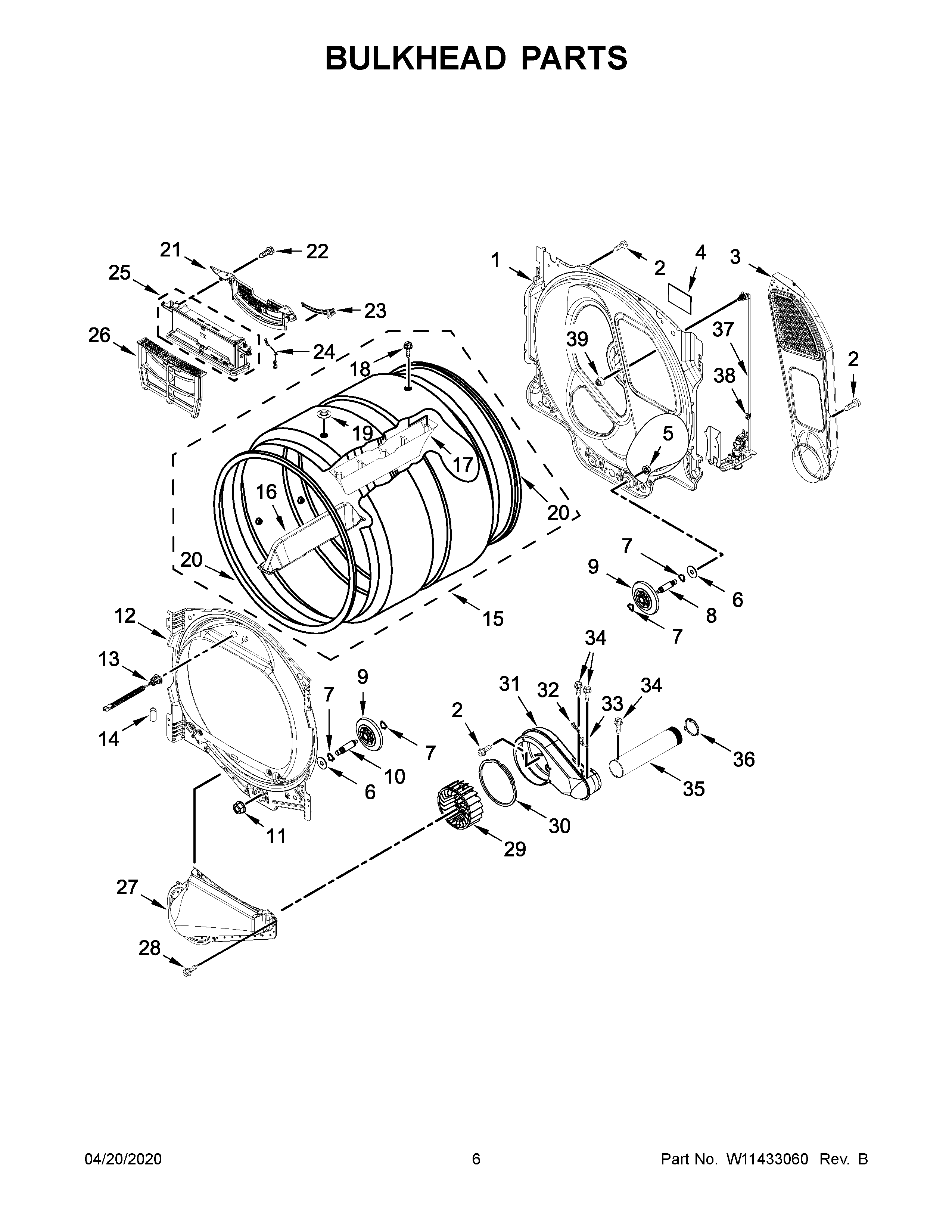

WED8120HC0 04 – BULKHEAD PARTS

Products

Position	Product
NI	W10623830 Whirlpool Dryer Fill Hose
NI	W10443301A Whirlpool Dryer Hose Kit
NI	W10782875 Whirlpool Fill Hose
NI	W10044609A Whirlpool Steam Dryer Hose Installation Kit
1	W11135006 Whirlpool Bulkhead
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11104017 Whirlpool Air Duct Assembly
4	W11409002 Whirlpool Pad
5	WPW10080190 Whirlpool Nut
6	W11236646 Whirlpool Washer Assembly
7	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
8	SHAFT
9	WPW10314173 Whirlpool Dryer Drum Support Wheel
10	SHAFT
11	WPW10080210 Whirlpool Nut
12	W10861007 Whirlpool Bulkhead Assembly
13	WPW10629046 Whirlpool Light Bulb
14	W10491983 Whirlpool Tine Tip
15	W10646770 Whirlpool Drum Assembly
16	W10767074 Whirlpool Drum Baffle
17	W10767090 Whirlpool Drum Baffle
18	W10853898 Whirlpool Screw
19	W10665050 Whirlpool Plug
20	W11189144 Whirlpool Felt Seal
21	W11242876 Whirlpool Out Housing
22	WP3387230 Whirlpool Screw
23	W11165163 Whirlpool Electrode Assembly
24	W11161899 Whirlpool Wire
25	W10608813 Whirlpool Outside Grille
26	W10859086 Whirlpool Dryer Lint Screen
27	W10868982 Whirlpool Lint Duct
28	WP489463 Whirlpool Refrigerator Screw
29	WP697772 Whirlpool Dryer Blower Wheel
30	W10868675 Whirlpool Seal
31	W11246350 Whirlpool Housing
32	FUSE-THRML
33	WP8577274 Whirlpool Dryer Thermistor
34	WP693995 Whirlpool Screw
35	W10608817 Whirlpool Exhaust Pipe
36	WPW10344699 Whirlpool Collar
37	W11314437 Whirlpool Valve Assembly
38	WP3391018 Whirlpool Wire Tie
39	W11230609 Whirlpool Nozzle
