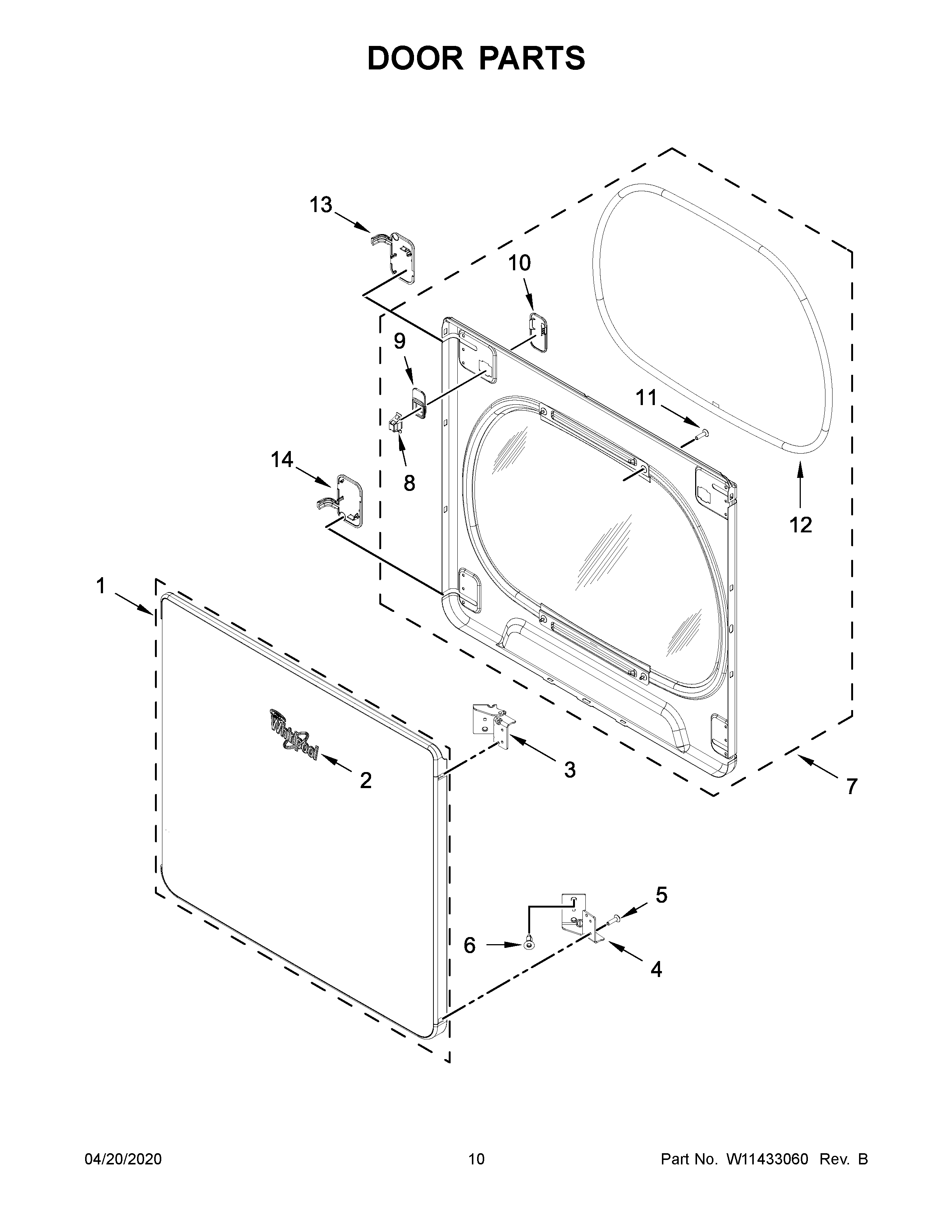

WED8120HC0 06 – DOOR PARTS

WED8120HC0 06 – DOOR PARTS

Written by

in

WED8120HC0 06 – DOOR PARTS

Products

PositionProduct
1W11317949 Whirlpool Door Assembly
2W11178521 Whirlpool Dishwasher Nameplate
3W10850024 Whirlpool Hinge Assembly
4W10850044 Whirlpool Hinge
5SCREW
6SCREW
7W11133036 Whirlpool Door Assembly
7AW11162064 Whirlpool Door
8W11429587 Whirlpool Catch Assembly
9AW10669023 Whirlpool Bezel
9W11103932 Whirlpool Bezel Assembly
10W10631410 Whirlpool Plate
10AW10669024 Whirlpool Plate
11WP488627 Whirlpool Refrigerator Screw
12W10763835 Whirlpool Door Seal Assembly
13W10631395 Whirlpool Cover Assembly
13AW10631412 Whirlpool Cover Assembly
14W10631396 Whirlpool Cover
14W10631413 Whirlpool Cover
