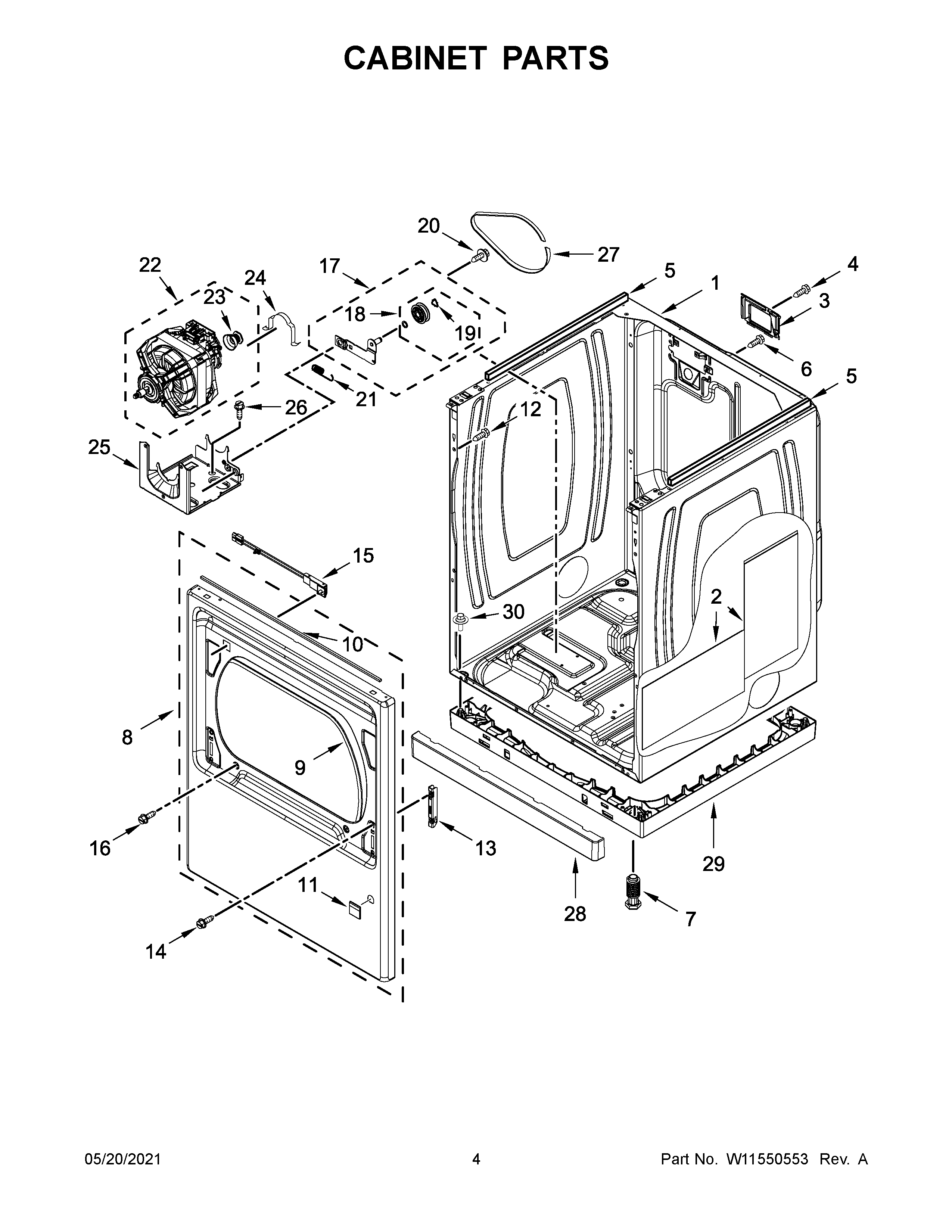

WED8127LC1 03 – CABINET PARTS
Written by
in
WED8127LC1 03 – CABINET PARTS
Products
Position
Product
1A
W11417445 Whirlpool Cabinet
1
W11417441 Whirlpool Cabinet
2
W11690850 Whirlpool Pad
3
W11662367 Whirlpool Dryer Cover
4
WP3390631 Whirlpool Screw
5
W11352071 Whirlpool Seal
6
W11693756 Whirlpool Screw Assembly
7
W11444912 Whirlpool Leveling Leg
8A
W11402953 Whirlpool Plug
8
W11402947 Whirlpool Plug
9
WP3387242 Whirlpool Seal
10
W11406199 Whirlpool Seal
11A
W11406198 Whirlpool Plug
11
W10811916 Whirlpool Plug
12
W10891954 Whirlpool Screw
13
W11568982 Whirlpool Inner Door Hinge
14
SCREW
15
W11551763 Whirlpool Door Switch
16
WP308685 Whirlpool Microwave Screw
17
W10837240 Whirlpool Dryer Idler Pulley
18
279640 Whirlpool Dryer Idler Pulley Kit
19
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20
WP3389420 Whirlpool Screw
21
WPW10446781 Whirlpool Spring
22
W11549461 Whirlpool Motor Drive
23
W10837625 Whirlpool Dryer Motor Pulley
24
CLAMP
25
W11481730 Whirlpool Bracket
26
SCREW
27
661570V Whirlpool Dryer Drum Belt
28A
W11628809 Whirlpool Skirt
28
W11551367 Whirlpool Base Panel
29
W11551643 Whirlpool Riser
30
W11182898 Whirlpool Bolt
←
