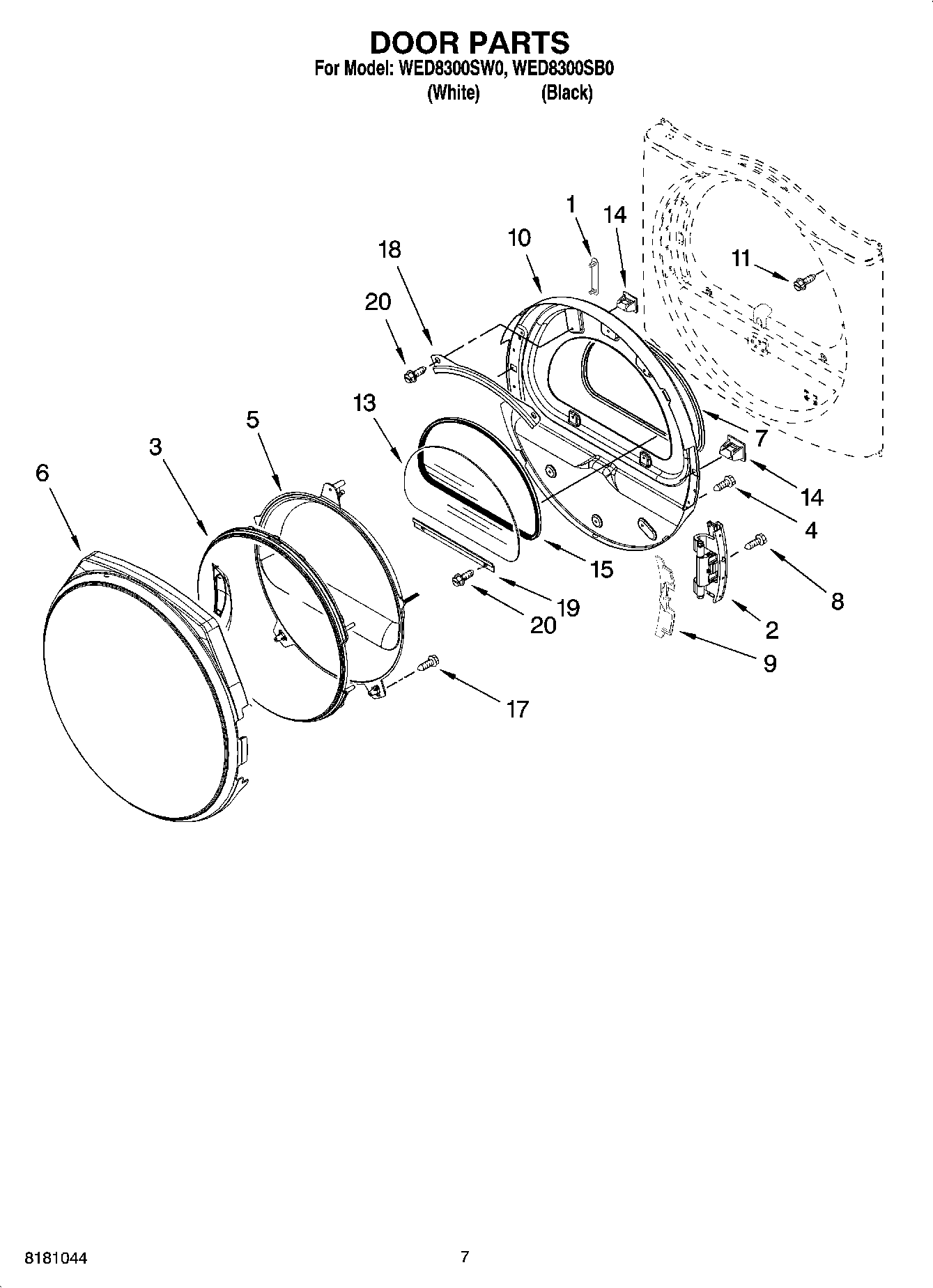

WED8300SB0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WED8300SB0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WED8300SB0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
PAINT, TOUCH-UP (1/2oz.) (Black)
8212450A Whirlpool Dryer Rack Assembly
4392067 Whirlpool Dryer Repair Kit
W11224254 Whirlpool Test Kit
WPL 786020
PAINT, BULK (1 qt.) (Black (Uncut))
ACCESSORY PARTS
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
ACCESSORY PARTS, KIT, HOLD DOWN
18565119 Whirlpool Plug
2Door, Hinge Assembly
3Door Assembly (Outer)
4W11116979 Whirlpool Screw
5Door Intermediate (White)
5Door, Intermediate (Gray)
6Door Ring (Outer) (White)
6Door Ring (Outer) (Black)
7Door Seal (Not Serviceable)
8Screw, 10-24 x 3/64
9Cover, Hinge (Black)
9Cover, Hinge (White)
10WPW10164062 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W11706993 Whirlpool Seal
17WP8534022 Whirlpool Screw
188519356 Whirlpool Retainer
19W10822054 Whirlpool Retainer
20WP3373329 Whirlpool Dishwasher Screw
