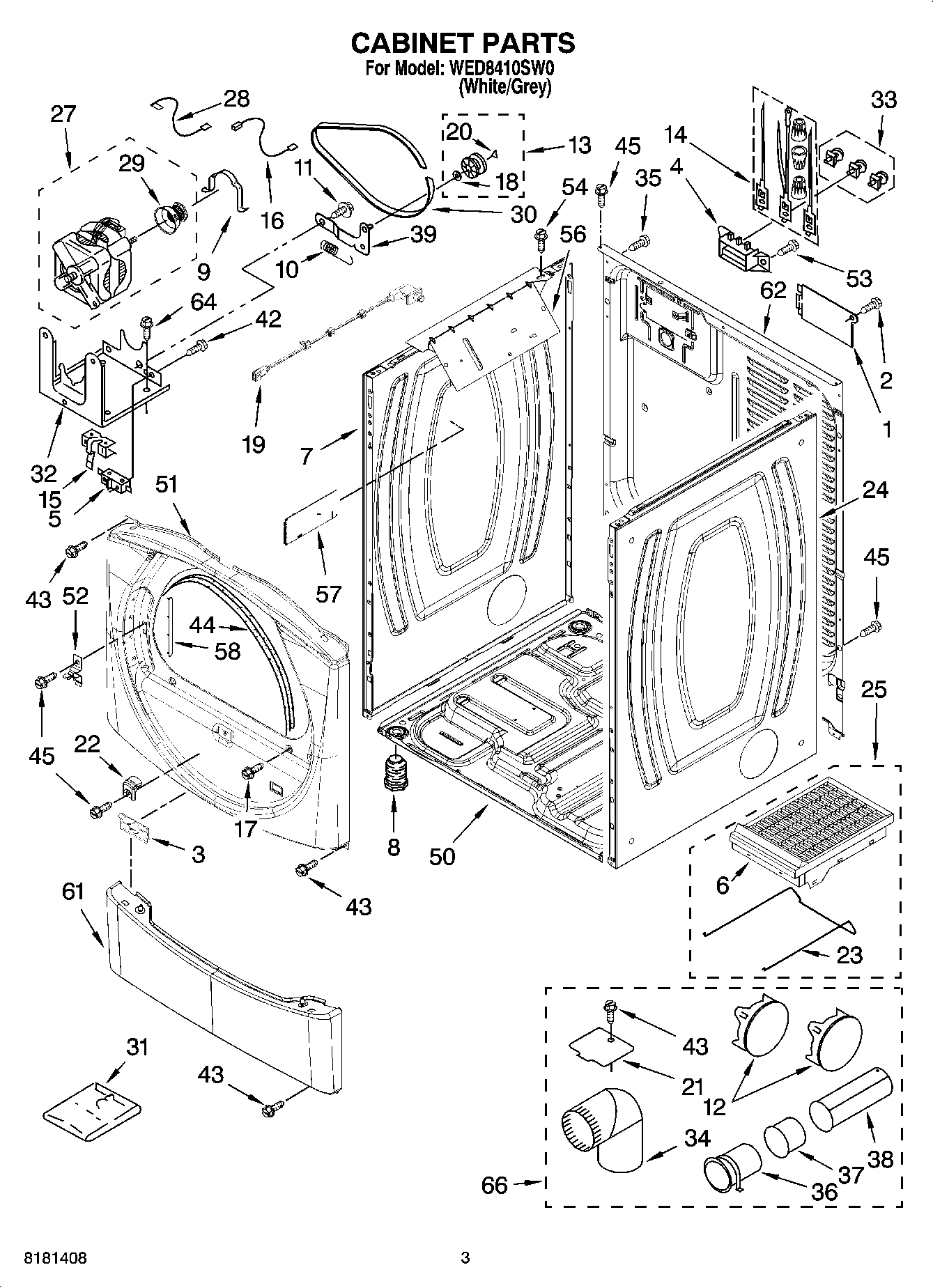

WED8410SW0 02 – CABINET PARTS

WED8410SW0 02 – CABINET PARTS

Written by

in

WED8410SW0 02 – CABINET PARTS

Products

PositionProduct
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W11295573 Whirlpool Clip
4WP3397659 Whirlpool Terminal Block
5279782 Whirlpool Lid Switch
68212450A Whirlpool Dryer Rack Assembly
849621 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP8066120 Whirlpool Lever Assembly
16Wire, Belt Switch
17WP308685 Whirlpool Microwave Screw
18WPW10121334 Whirlpool Washer
19Assembly, Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
228580015 Whirlpool Ramp
23Dry Rack Support
24W10542714 Whirlpool Panel
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
318572546 Whirlpool Washer Duet Sport Epic Stack Kit
32WP3387118 Whirlpool Base Assembly
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35W10850756 Whirlpool Screw
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
50W11215531 Whirlpool Base
51Front Panel (Includes Illus. 44)
52WP8565122 Whirlpool Strike Assembly
54W11693756 Whirlpool Screw Assembly
56WP8563727 Whirlpool Bracket
57WPL W10050520
588565043 Whirlpool Plug
61WP8540621 Whirlpool Toe Panel
62Panel, Rear
64SCREW
64WPL ARI164758A
66W10470674 Whirlpool Dryer Side Vent Exhaust Kit
