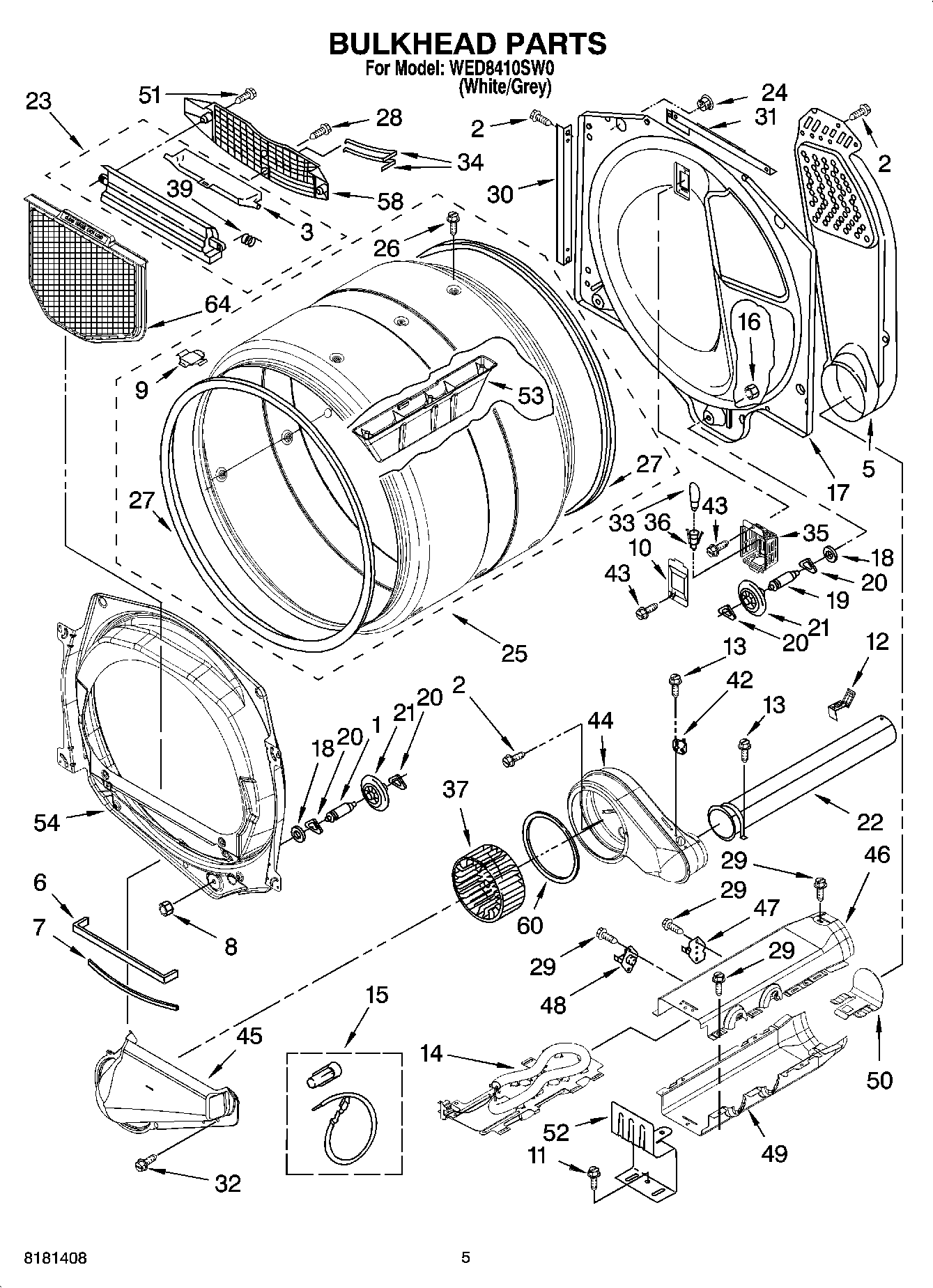

WED8410SW0 03 – BULKHEAD PARTS

WED8410SW0 03 – BULKHEAD PARTS

Written by

in

WED8410SW0 03 – BULKHEAD PARTS

Products

PositionProduct
1SHAFT
2WP488729 Whirlpool Refrigerator Door Screw
3W11222846 Whirlpool Door
5WP3387911 Whirlpool Air Duct
6WP697813 Whirlpool Seal
8WPW10080210 Whirlpool Nut
98066086 Whirlpool Plug
10W11226088 Whirlpool Lens Assembly
11WP693995 Whirlpool Screw
12W11684573 Whirlpool Clip Assembly
13WP90767 Whirlpool Screw
14WP8544771 Whirlpool Dryer Heating Element
15279457 Whirlpool Dryer Heating Element Wide Spade Connection
16WPW10080190 Whirlpool Nut
17W11299301 Whirlpool Bulkhead Assembly
18W11236646 Whirlpool Washer Assembly
19SHAFT
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10314173 Whirlpool Dryer Drum Support Wheel
22WP8563728 Whirlpool Exhaust Pipe
23W11129408 Whirlpool Out Housing
248529007 Whirlpool Plug
25W10865330 Whirlpool Drum
26WPW10109200 Whirlpool Screw
27280114 Whirlpool Dryer Drum Seal
30Channel Bracket, Rear Bulkhead (2)
31W10118337 Whirlpool Bracket Assembly
32WP489463 Whirlpool Refrigerator Screw
33WP22002263 Whirlpool Dryer 10W Light Bulb
34WP3387223 Whirlpool Electrode Assembly
358578825 Whirlpool Bracket
36W11700522 Whirlpool Socket
37WP697772 Whirlpool Dryer Blower Wheel
39WP3394986 Whirlpool Spring
42WP8577274 Whirlpool Dryer Thermistor
44W10888146 Whirlpool Housing
45WPW10128606 Whirlpool Lint Duct
46WP8544769 Whirlpool Box
47279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48THRMST-FIX
49HOUSING TAB, HEATER BOX
508544776 Whirlpool Clip Assembly
51WP3387230 Whirlpool Screw
528066099 Whirlpool Bracket
53Baffle, Drum
548565061 Whirlpool Bulkhead Assembly
58W11086603 Whirlpool Dryer Link Screen Air Grille
60WP697770 Whirlpool Blower Cover Plate Seal
64W10120998 Whirlpool Dryer Lint Screen Filter
