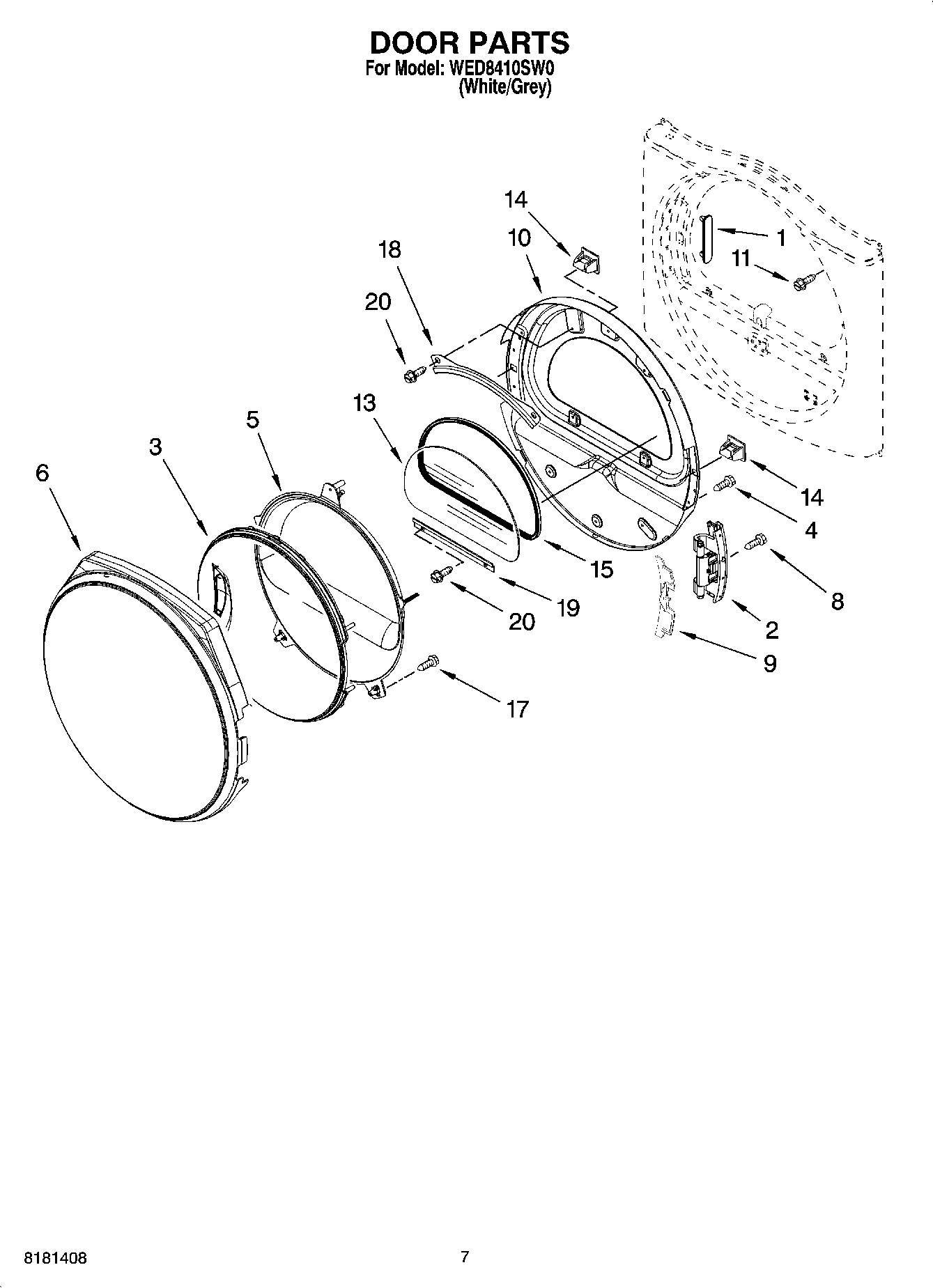

WED8410SW0 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS, KIT, HOLD DOWN
	4392067 Whirlpool Dryer Repair Kit
	W11224254 Whirlpool Test Kit
	ACCESSORY PARTS
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	8565119 Whirlpool Plug
2	Door, Hinge Assembly
3	Door Assembly (Outer)
4	W11116979 Whirlpool Screw
5	Door, Intermediate
6	Door Ring (Outer) (White)
8	Screw, 10-24 x 3/64
9	Cover, Hinge (White)
10	WPW10164062 Whirlpool Door Assembly
11	WP355515 Whirlpool Screw
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	W11706993 Whirlpool Seal
17	WP8534022 Whirlpool Screw
18	8519356 Whirlpool Retainer
19	W10822054 Whirlpool Retainer
20	WP3373329 Whirlpool Dishwasher Screw
