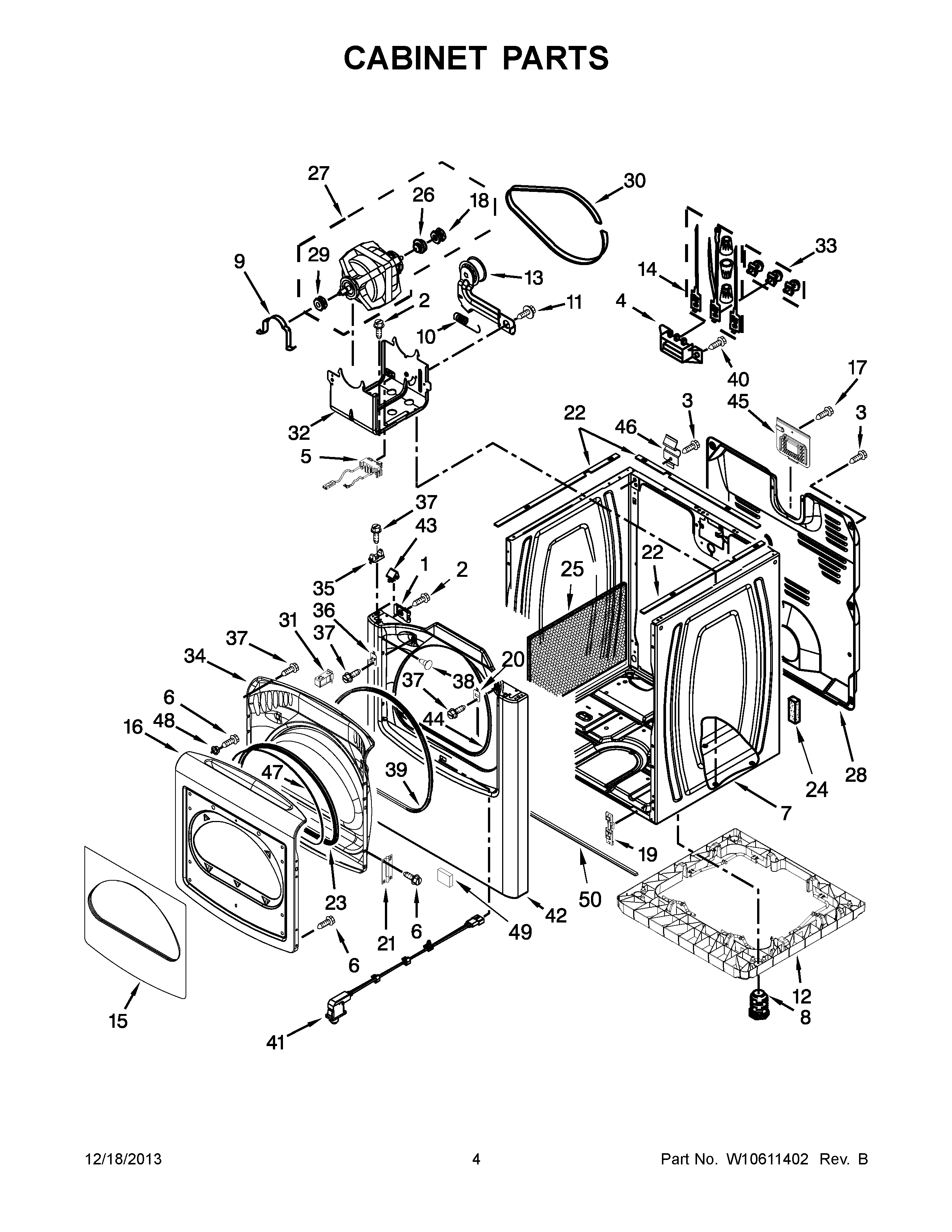

WED8500BR0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WP98234 Whirlpool Nut
2WP3390631 Whirlpool Screw
3WP693995 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WPW10411937 Whirlpool Switch
6WP488627 Whirlpool Refrigerator Screw
7W10223154 Whirlpool Cabinet Assembly
7W10391494 Whirlpool Cabinet
7CABINET (CHERRY METALLIC)
8W10813918 Whirlpool Leveling Feet
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12W10838688 Whirlpool Base
13WPW10547292 Whirlpool Dryer Idler Pulley
14279318 Whirlpool Terminal
15WINDOW, OUTER DOOR
16DOOR, OUTER (WHITE)
16DOOR, OUTER (CHROME SHADOW)
16DOOR, OUTER (CHERRY METALLIC)
17W10850756 Whirlpool Screw
18WP8547171 Whirlpool Motor Pulley
19W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20WPW10111888 Whirlpool Plate Assembly
21HINGE, SPRING ASSEMBLY (CHERRY METALLIC)
21WP8565018 Whirlpool Hinge
21W10463338 Whirlpool Appliance Hinge
22WPW10157932 Whirlpool Seal Foam
23W10076050 Whirlpool Gasket
243350013 Whirlpool Foam Seal
25W10123956 Whirlpool Sound Absorber
26WP3393657 Whirlpool Belt Retainer
27WPW10448896 Whirlpool Drive Motor
28Panel, Rear
29PULLEY, BLOWER
30WP8547157 Whirlpool Dryer Drum Drive Belt
31WPW10111905 Whirlpool Dryer Door Catch
32BRACKET, MOTOR
33279393 Whirlpool Terminal Block Screw and Nut Kit
34DOOR, INNER (WHITE)
35WP8568303 Whirlpool Lock Assembly
36W10295405 Whirlpool Strike
37WP3400805 Whirlpool Screw Assembly
38WP3404413 Whirlpool Plug
39W10239307 Whirlpool Door Seal
40WP308685 Whirlpool Microwave Screw
41WPW10350907 Whirlpool Door Switch
42PANEL, FRONT (CHROME SHADOW)
42PANEL, FRONT (CHERRY METALLIC)
42WPW10594753 Whirlpool Panel
43WP8576625 Whirlpool Lock
44W10044490 Whirlpool Seal Assembly
45WPW10110241 Whirlpool Cover Assembly
46WP8066217 Whirlpool Hinge
47WPL 8558846
48WP308499 Whirlpool Nut
493389682 Whirlpool Spacer
50WPW10224768 Whirlpool Foam Spill Guard Seal
