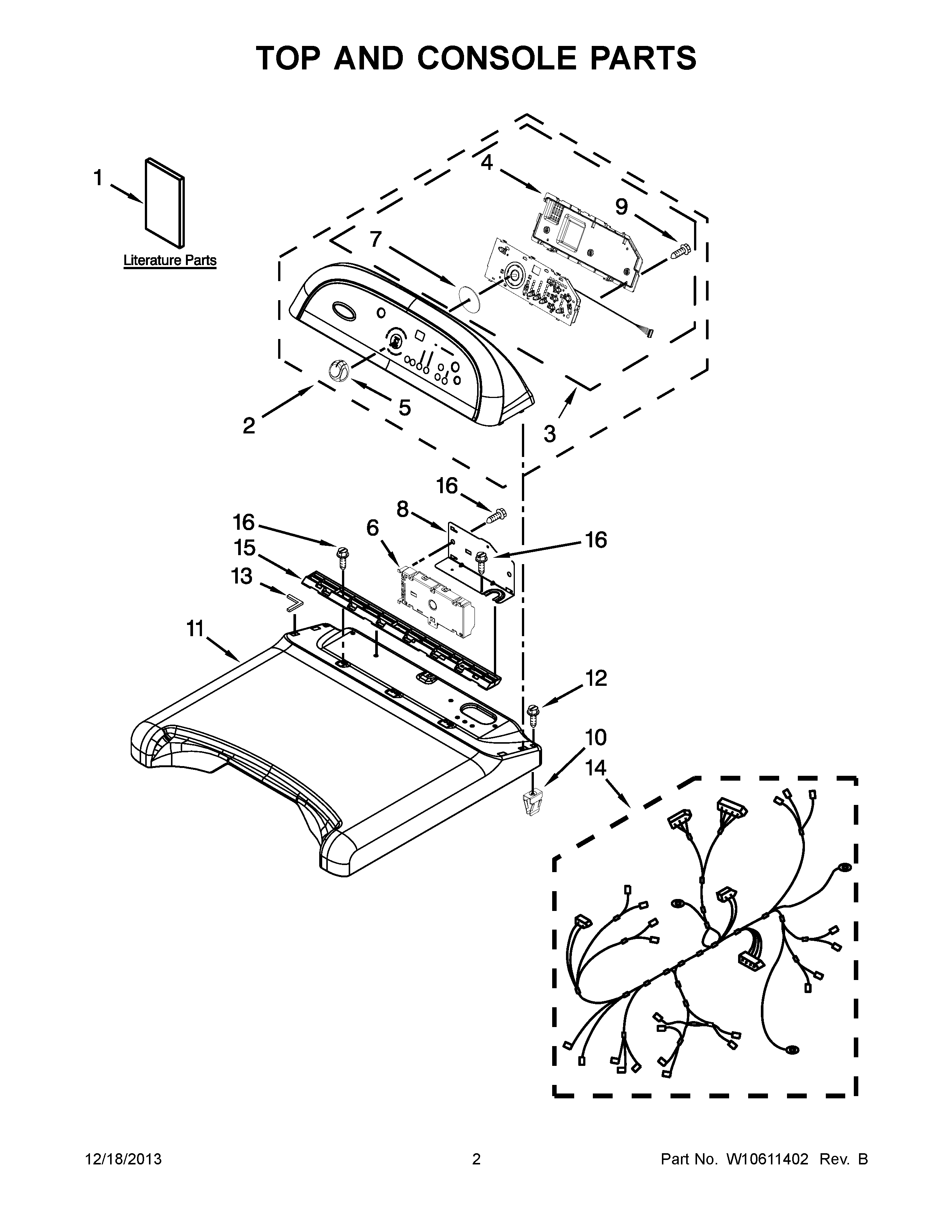

WED8500BW0 02 – TOP AND CONSOLE PARTS

WED8500BW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED8500BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTRUCTIONS, INSTALLATION
1GUIDE, USE AND CARE
1TECH SHEET
2ASSEMBLY, CONSOLE (WHITE)
2ASSEMBLY, CONSOLE (CHROME SHADOW)
2CONSOLE (CHERRY METALLIC)
3ASSEMBLY, USER INTERFACE
48564265 Whirlpool Cover
5WPW10576632 Whirlpool Dishwasher Knob
5WPW10567081 Whirlpool Knob Assembly
6WPW10532428-includeCORE Whirlpool WPW10532428 Washer Electronic Control Board + Core
7SEAL, USER INTERFACE
8BRACKET, MACHINE CONTROLLER
9WP4449745 Whirlpool Screw
10W10112673 Whirlpool Clip
11TOP (CHERRY METALLIC)
11TOP (WHITE)
11TOP (CHROME SHADOW)
12W10131402 Whirlpool Screw
13W10185554 Whirlpool Seal Assembly
14W10392403 Whirlpool Wire Harness
15Bracket, Console
16WP90767 Whirlpool Screw
