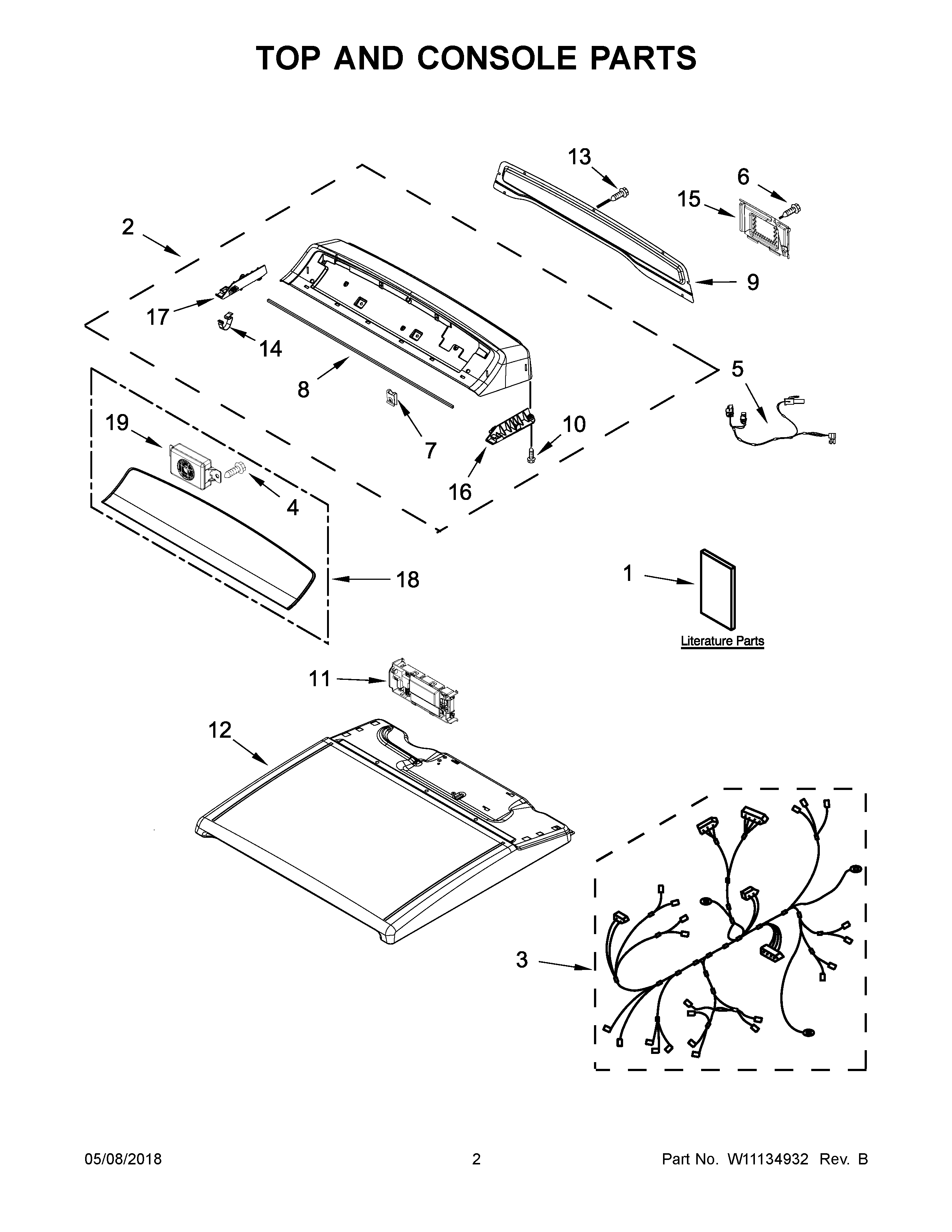

WED8500DC4 02 – TOP AND CONSOLE PARTS

WED8500DC4 02 – TOP AND CONSOLE PARTS

Written by

in

WED8500DC4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AGUIDE, USE AND CARE
1CQUICKSTART GUIDE
1BTECH SHEET
1INSTALLATION INSTRUCTIONS
2W11050696 Whirlpool Console
2AW11116871 Whirlpool Console
2BW11028279 Whirlpool Console
3W10901572 Whirlpool Wire Harness
4W11631670 Whirlpool Screw
5W10837032 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11W11158453 Whirlpool Electronic Control Board
12AW11051477 Whirlpool Top
12BW10573725 Whirlpool Top
12W11227373 Whirlpool Top
13WP9740848 Whirlpool Dishwasher Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11158455 Whirlpool Overlay Panel
19W11123146 Whirlpool Speaker
