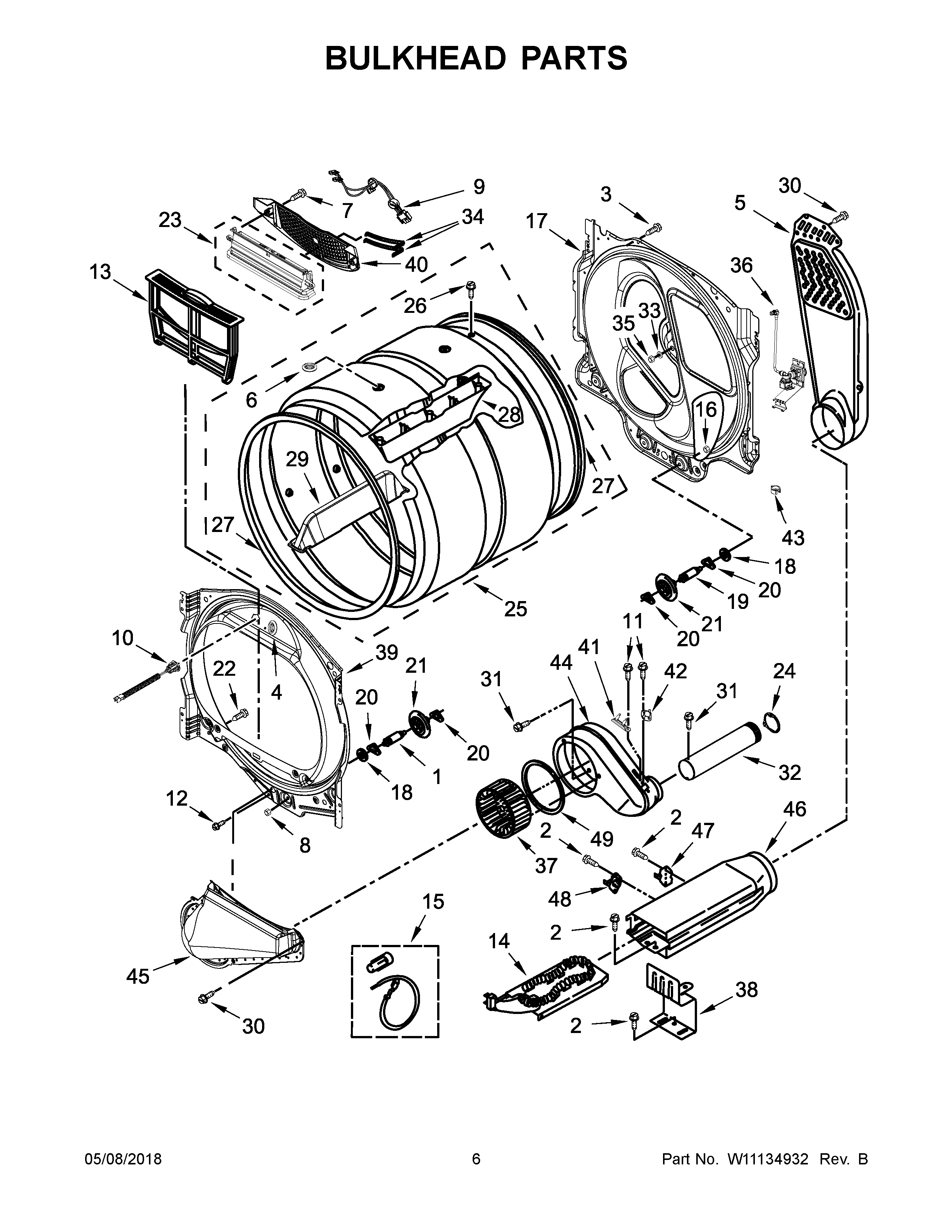

WED8500DC4 04 – BULKHEAD PARTS

WED8500DC4 04 – BULKHEAD PARTS

Written by

in

WED8500DC4 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP489463 Whirlpool Refrigerator Screw
3	WP488729 Whirlpool Refrigerator Door Screw
4	W10491983 Whirlpool Tine Tip
5	W11104017 Whirlpool Air Duct Assembly
6	W10665050 Whirlpool Plug
7	WP3387230 Whirlpool Screw
8	WPW10080210 Whirlpool Nut
9	W11161899 Whirlpool Wire
10	WPW10629046 Whirlpool Light Bulb
12	WP308685 Whirlpool Microwave Screw
13	W10859086 Whirlpool Dryer Lint Screen
14	WP3387747 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11135006 Whirlpool Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	W10718190 Whirlpool Screw
23	W11242876 Whirlpool Out Housing
24	WPW10344699 Whirlpool Collar
25	W10646770 Whirlpool Drum Assembly
26	W10853898 Whirlpool Screw
27	W11189144 Whirlpool Felt Seal
28	W10767090 Whirlpool Drum Baffle
29	W10767074 Whirlpool Drum Baffle
30	WP693995 Whirlpool Screw
31	WP90767 Whirlpool Screw
32	W10608817 Whirlpool Exhaust Pipe
33	W10044579 Whirlpool Washer
34	W11165163 Whirlpool Electrode Assembly
35	W11230609 Whirlpool Nozzle
36	W11314437 Whirlpool Valve Assembly
37	WP697772 Whirlpool Dryer Blower Wheel
38	8066099 Whirlpool Bracket
39	W10861007 Whirlpool Bulkhead Assembly
40	W10608813 Whirlpool Outside Grille
41	FUSE-THRML
42	WP8577274 Whirlpool Dryer Thermistor
43	W10044599 Whirlpool Clip
44	W11246350 Whirlpool Housing
45	W10868982 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP8557403 Whirlpool Thermostat
