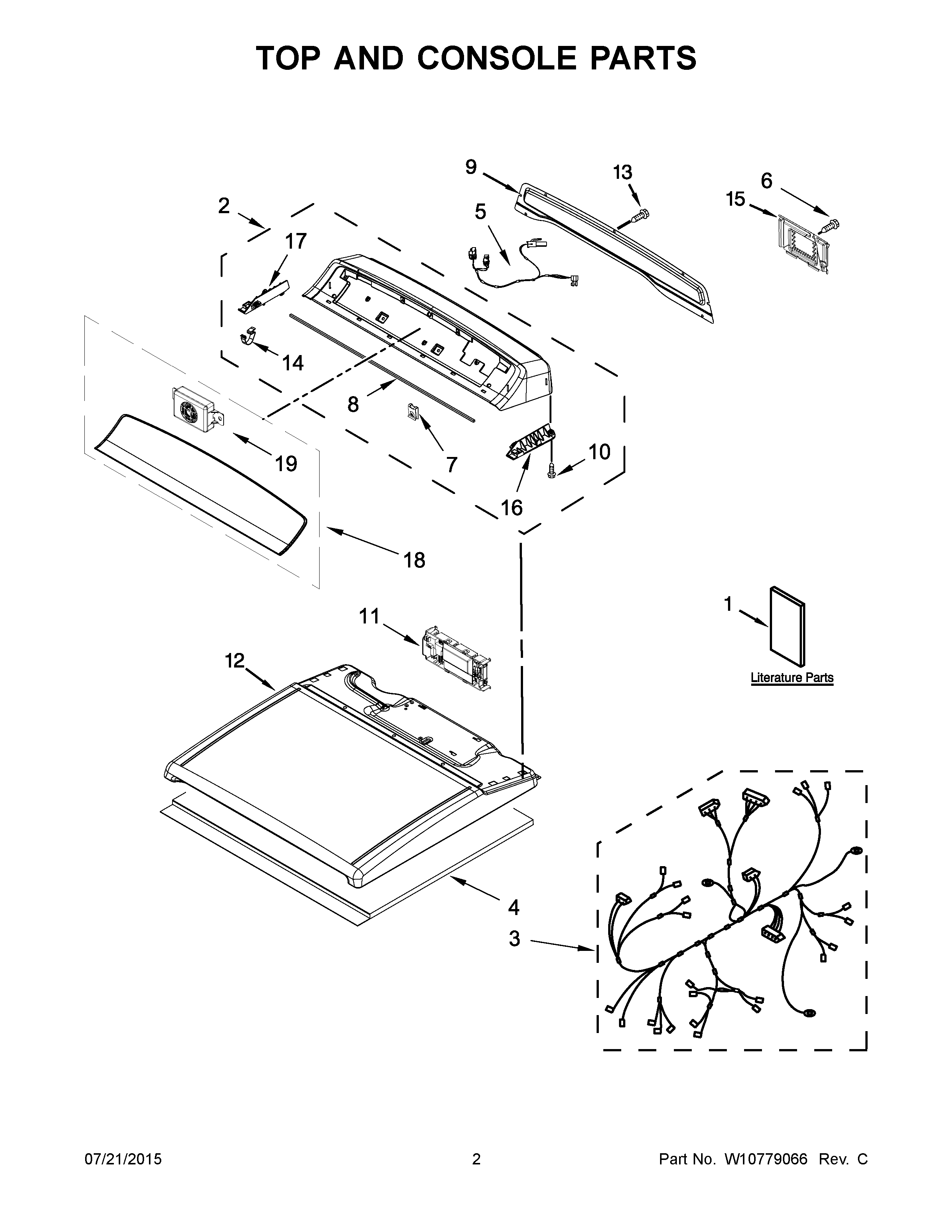

WED8500DR0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1CQUICKSTART GUIDE
1BTECH SHEET
1AGUIDE, USE AND CARE
2W10573719 Whirlpool Console Assembly
3W10706040 Whirlpool Wire Harness
4W10123956 Whirlpool Sound Absorber
5W10593673 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10WP9740848 Whirlpool Dishwasher Screw
11WPW10739349-includeCORE Whirlpool WPW10739349 Refrigerator Electronic Control Board + Core
12W10573725 Whirlpool Top
13SCREW
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11158455 Whirlpool Overlay Panel
19W11123146 Whirlpool Speaker
