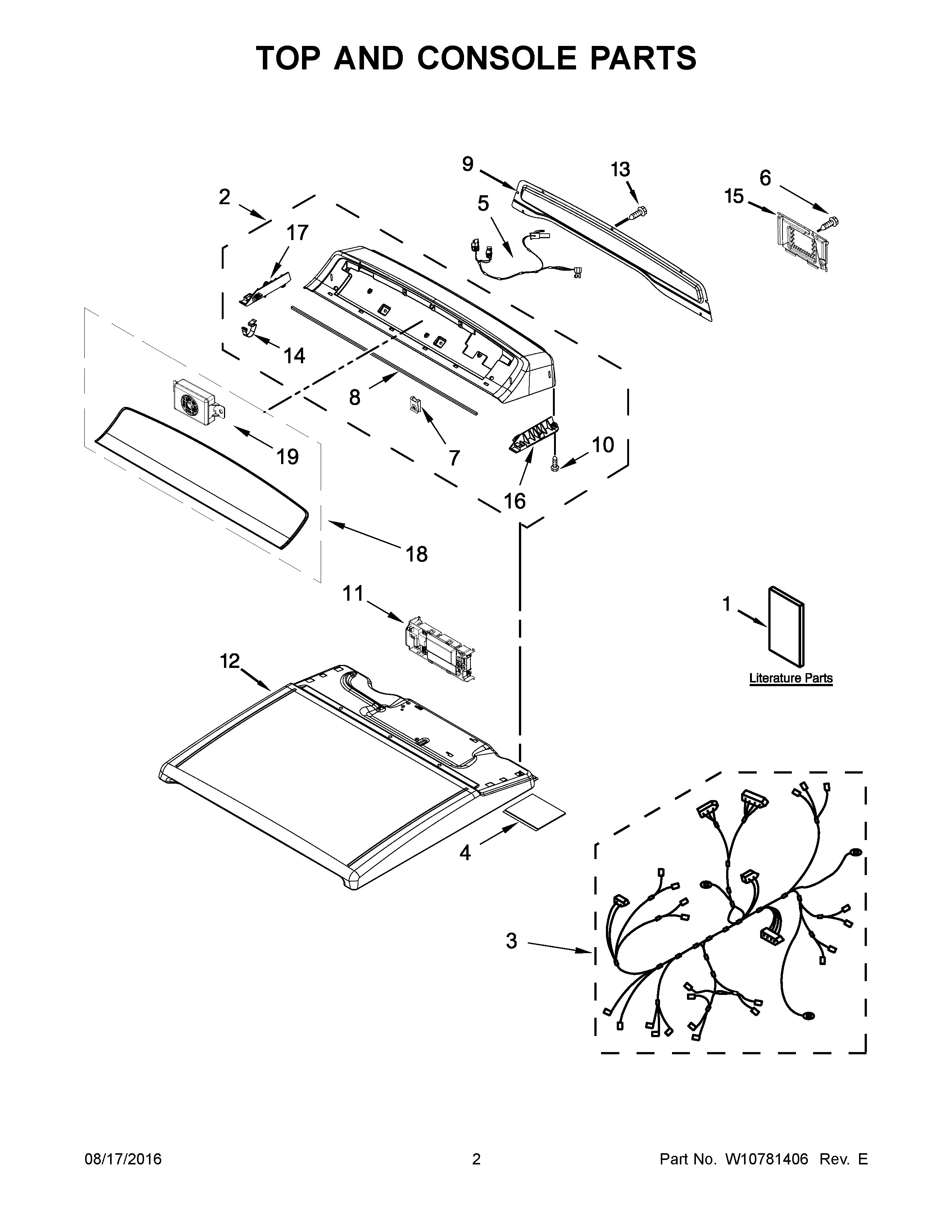

WED8500DW1 02 – TOP AND CONSOLE PARTS

WED8500DW1 02 – TOP AND CONSOLE PARTS

Written by

in

WED8500DW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1CQUICKSTART GUIDE
1AGUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
2BW10573719 Whirlpool Console Assembly
2AW10847565 Whirlpool Console
2W10642098 Whirlpool Console
3W10706040 Whirlpool Wire Harness
4W11668653 Whirlpool Sound Panel
5W10593673 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10WP9740848 Whirlpool Dishwasher Screw
11WPW10739349-includeCORE Whirlpool WPW10739349 Refrigerator Electronic Control Board + Core
12W11227373 Whirlpool Top
12AW11051477 Whirlpool Top
12BW10573725 Whirlpool Top
13SCREW
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11158455 Whirlpool Overlay Panel
19W11123146 Whirlpool Speaker
