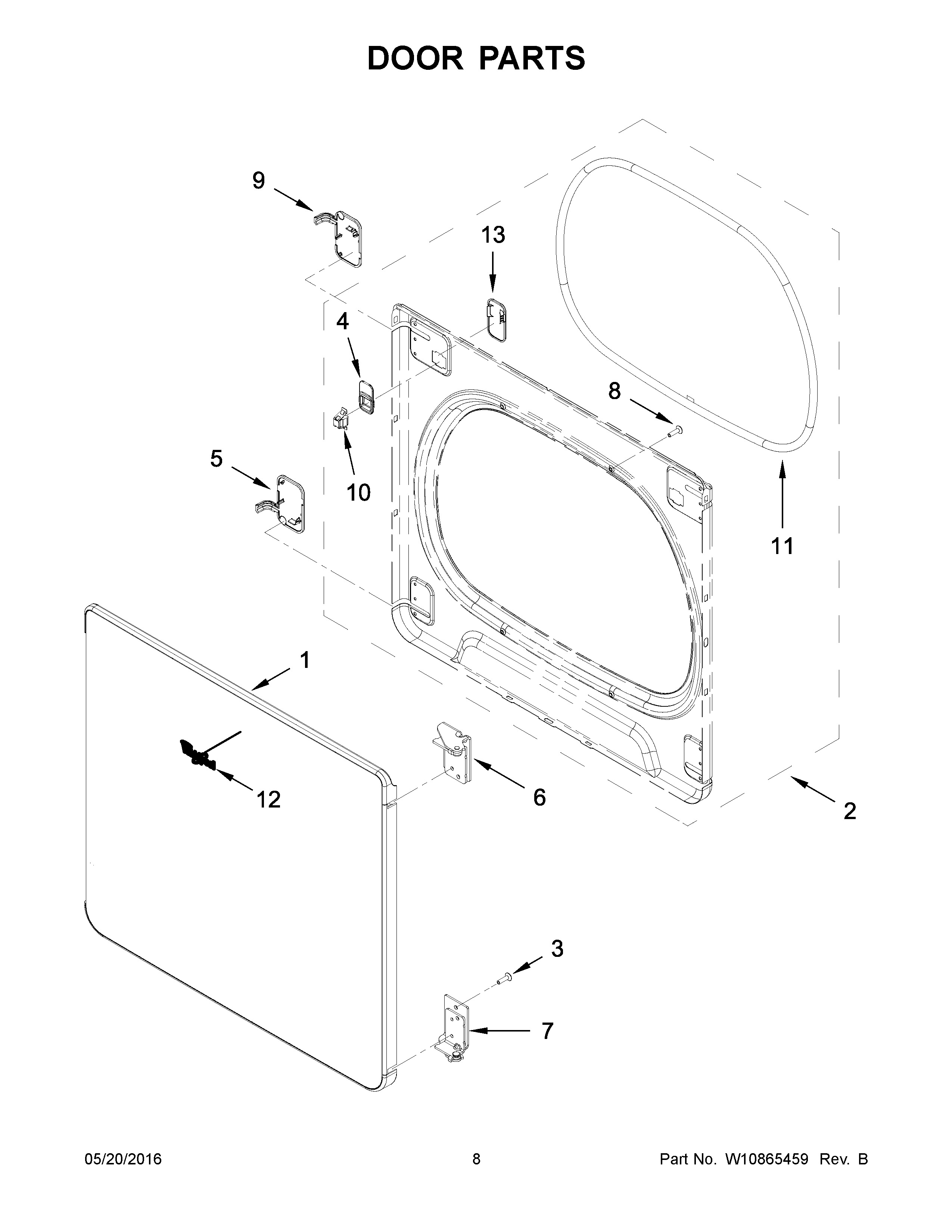

WED8500DW3 05 – DOOR PARTS

WED8500DW3 05 – DOOR PARTS

Written by

in

WED8500DW3 05 – DOOR PARTS

Products

PositionProduct
1W10614960 Whirlpool Door Assembly
2W10614997 Whirlpool Door
2AW10615000 Whirlpool Door Assembly
3SCREW
4W11103932 Whirlpool Bezel Assembly
4AW10669023 Whirlpool Bezel
5AW10631413 Whirlpool Cover
5W10631396 Whirlpool Cover
6W10850024 Whirlpool Hinge Assembly
7W10850044 Whirlpool Hinge
8WP488627 Whirlpool Refrigerator Screw
9AW10631412 Whirlpool Cover Assembly
9W10631395 Whirlpool Cover Assembly
10W11429587 Whirlpool Catch Assembly
11W10763835 Whirlpool Door Seal Assembly
12WPW10393264 Whirlpool Refrigerator Nameplate
13W10631410 Whirlpool Plate
13AW10669024 Whirlpool Plate
