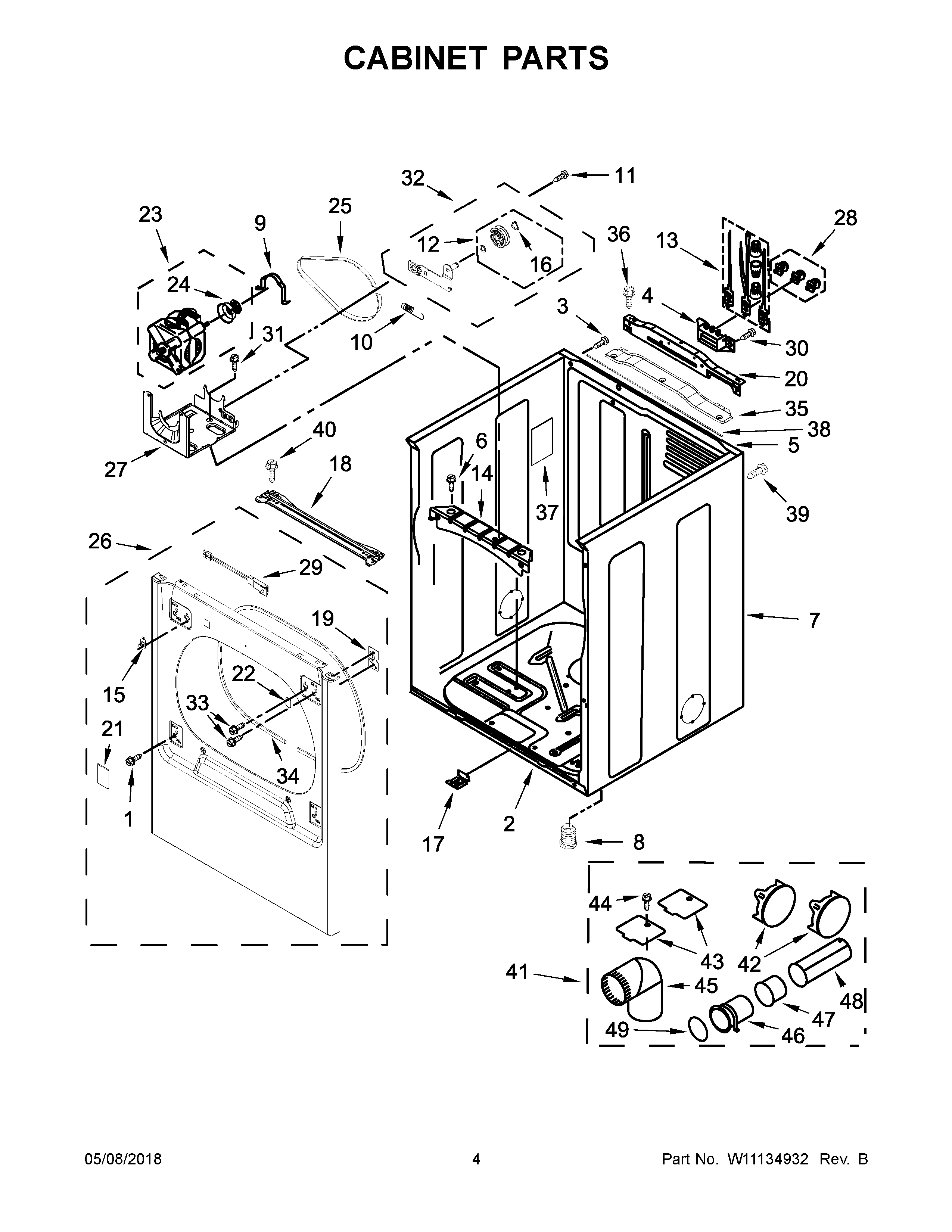

WED8500DW4 03 – CABINET PARTS

WED8500DW4 03 – CABINET PARTS

Written by

in

WED8500DW4 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	W10613683 Whirlpool Base
3	SCREW
4	WP3397659 Whirlpool Terminal Block
5	W10824896 Whirlpool Rear Panel
6	WP693995 Whirlpool Screw
7A	W10681830 Whirlpool Panel
7B	W10573723 Whirlpool Cabinet
7	W10633648 Whirlpool Cabinet Assembly
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	279640 Whirlpool Dryer Idler Pulley Kit
13	279318 Whirlpool Terminal
14	W11282908 Whirlpool Bracket
15	W11163826 Whirlpool Strike
16	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
17	SPACER BRACKET, LOWER
18	BRACE, CAB AND SEAL ASSEMBLY
19	BRACKET, HINGE
20	W10622391 Whirlpool Bracket
21	W10590953 Whirlpool Plug
21A	W10596965 Whirlpool Plug
22	WPW10111888 Whirlpool Plate Assembly
23	W11105178 Whirlpool Drive Motor
24	W11568637 Whirlpool Motor Pulley
25	W10849499 Whirlpool Belt
26A	W10875891 Whirlpool Panel
26B	PANEL, FRONT (CHERRY METALLIC)
26	W10875869 Whirlpool Panel
27	W10578053 Whirlpool Base Assembly
28	279393 Whirlpool Terminal Block Screw and Nut Kit
29	W11036551 Whirlpool Door Switch
30	WP308685 Whirlpool Microwave Screw
31	SCREW
32	W10837240 Whirlpool Dryer Idler Pulley
33	WP3400805 Whirlpool Screw Assembly
34	WP3387242 Whirlpool Seal
35	W10651902 Whirlpool Bracket
35B	BULKHEAD BRACKET, REAR PANEL (RED)
36	W10891954 Whirlpool Screw
37	W11409002 Whirlpool Pad
38	W10316616 Whirlpool Seal
39	SCREW
40	W10636208 Whirlpool Screw
41	W10704365 Whirlpool Dryer Exhaust Kit
42	WPW10404617 Whirlpool Plug Assembly
43	WPW10354249 Whirlpool Cover
44	W11568617 Whirlpool Screw
45	WPW10416072 Whirlpool Elbow
46	PIPE, EXHAUST (MEDIUM)
47	WPW10331278 Whirlpool Exhaust Pipe
48	WP8563749 Whirlpool Exhaust Pipe
49	WPW10344699 Whirlpool Collar
