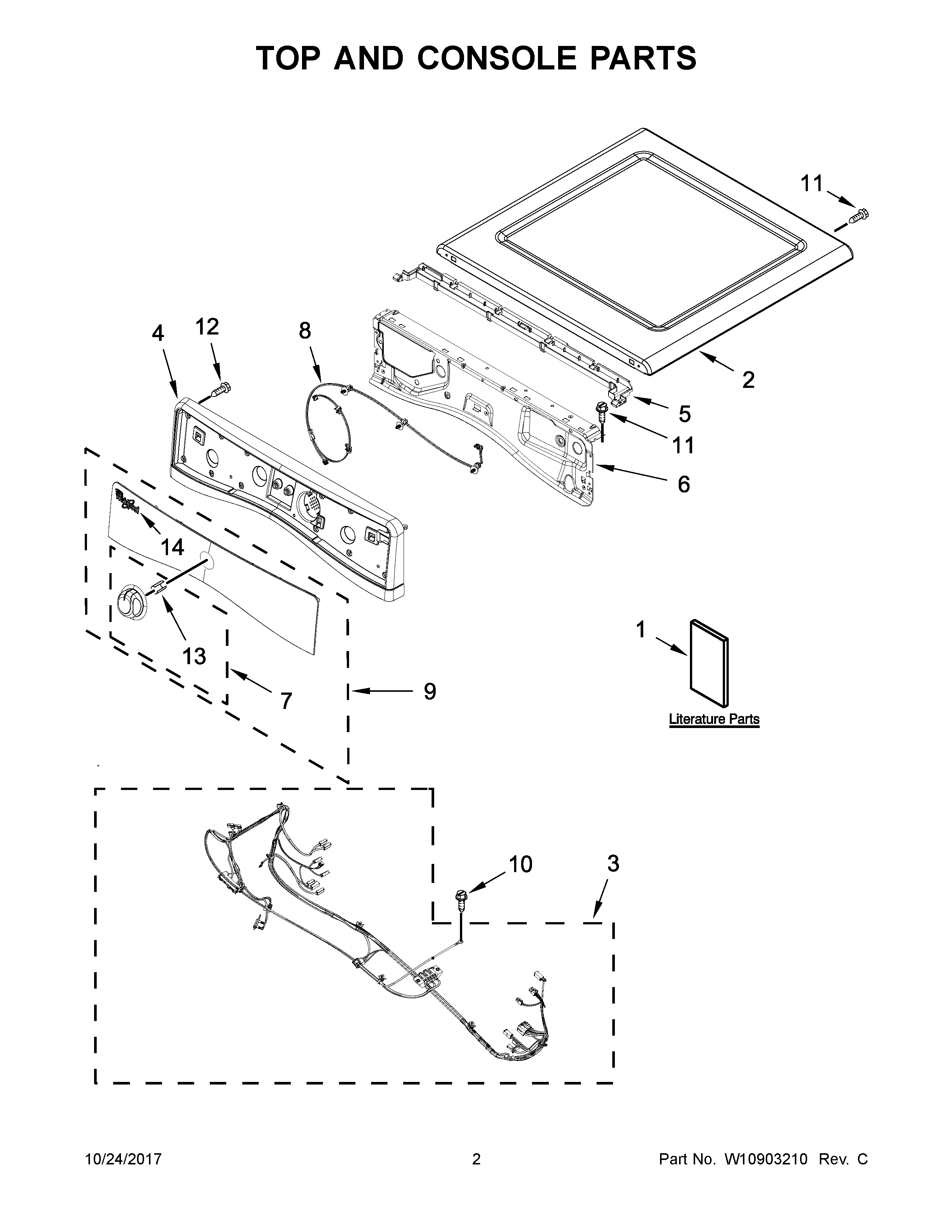

WED85HEFC0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1B	TECH SHEET
1A	INSTALLATION INSTRUCTIONS
1	USE AND CARE GUIDE
1C	QUICK START GUIDE
2	WPW10208383 Whirlpool Top Panel
2A	WPW10460919 Whirlpool Top
3	W10637533 Whirlpool Wire Harness
4	WPW10391519 Whirlpool Console
4A	W10876224 Whirlpool Console
5	WPW10653575 Whirlpool Channel
6	W11480682 Whirlpool Bracket
7	W10875909 Whirlpool Timer Knob
8	W11025125 Whirlpool Wire Harness
9	W11109849 Whirlpool Control Panel
9A	W11109852 Whirlpool Control Panel
10	WP693995 Whirlpool Screw
11	WP488729 Whirlpool Refrigerator Door Screw
12	W10489172 Whirlpool Screw
13	WP8536939 Whirlpool Spring Clip
14A	BADGE (WHITE)
14	W10510982 Whirlpool Nameplate
