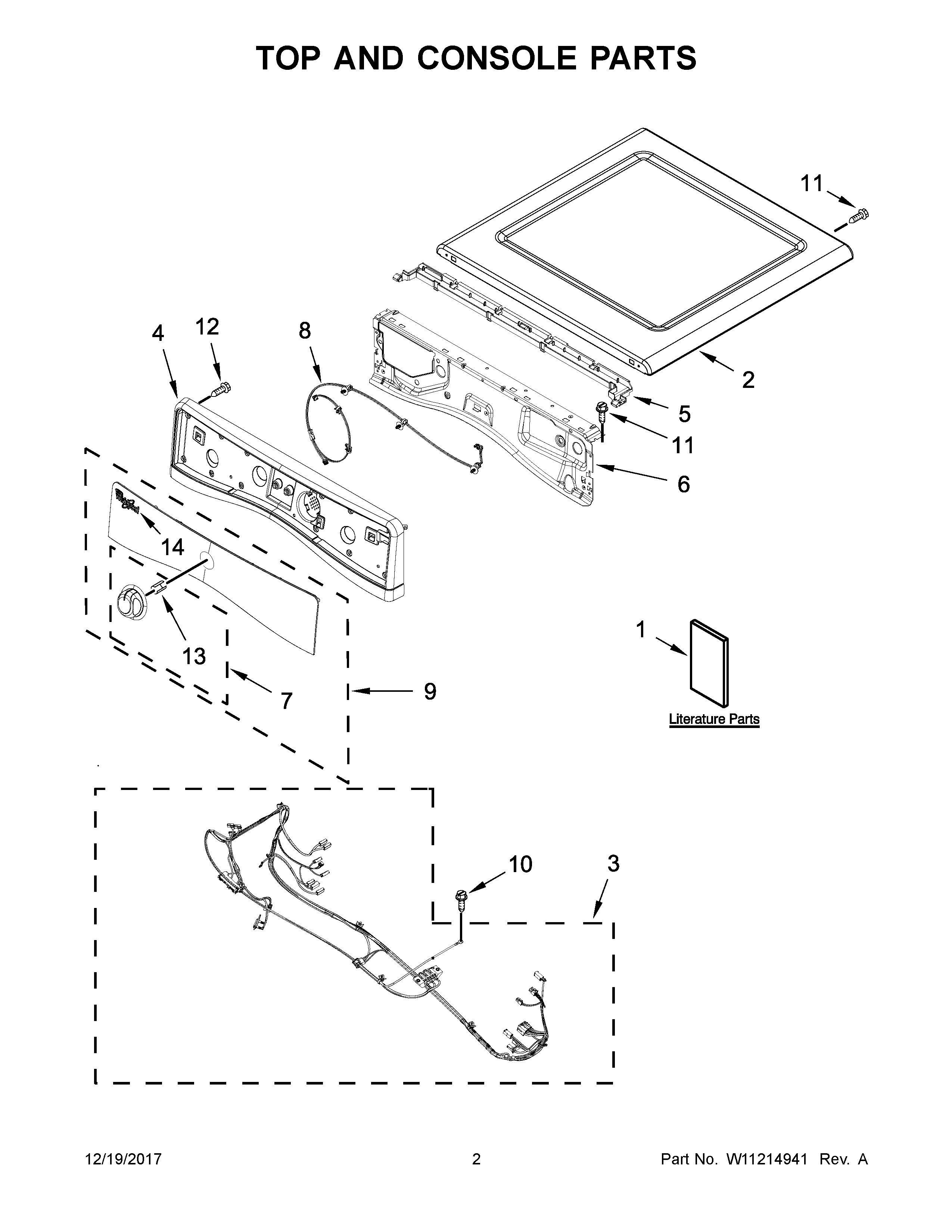

WED85HEFC2 02 – TOP AND CONSOLE PARTS

WED85HEFC2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BTECH SHEET
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1CQUICK START GUIDE
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3W10637533 Whirlpool Wire Harness
4WPW10391519 Whirlpool Console
4AW10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
8W11025125 Whirlpool Wire Harness
9W11109849 Whirlpool Control Panel
9AW11109852 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14ABADGE (WHITE)
14W10510982 Whirlpool Nameplate
