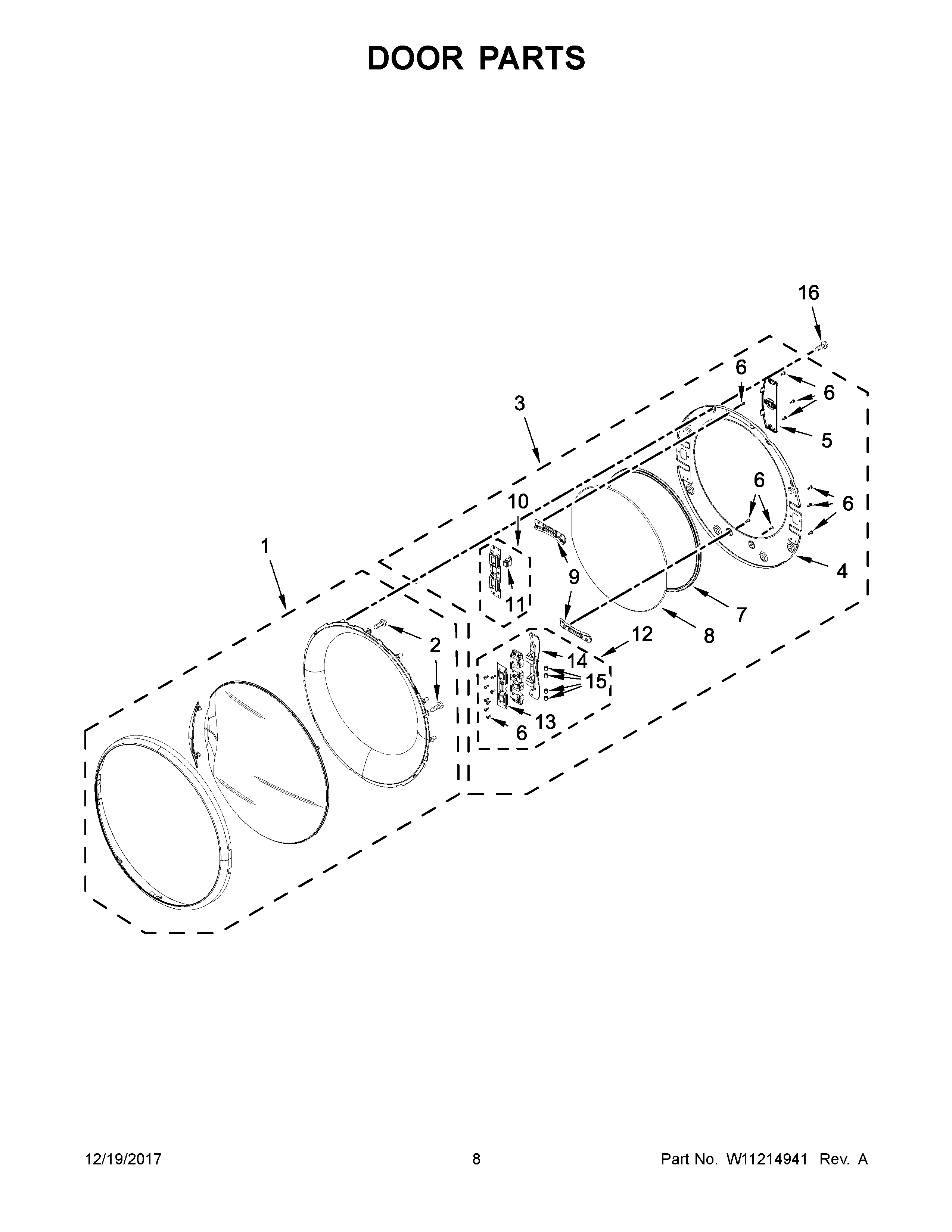

WED85HEFC2 05 – DOOR PARTS

Products

Position	Product
1	W11172778 Whirlpool Door Assembly
1A	W11168739 Whirlpool Door
2	WP8534022 Whirlpool Screw
3A	ASSEMBLY, INNER DOOR (CHROME SHADOW)
3	W11251345 Whirlpool Door
4	DOOR, INNER
4A	DOOR, INNER
5	W10772469 Whirlpool Door Catch Cover
6	SCREW
7	W11126230 Whirlpool Seal
8	W10823368 Whirlpool Window Assembly
9	W10208252 Whirlpool Retainer
10	WPW10208254 Whirlpool Catch
11	W11240283 Whirlpool Catch Assembly
12	HINGE
13	WPW10208419 Whirlpool Plate
14	HINGE
15	WPW10208398 Whirlpool Hinge Pin Cap
16	SCREW
