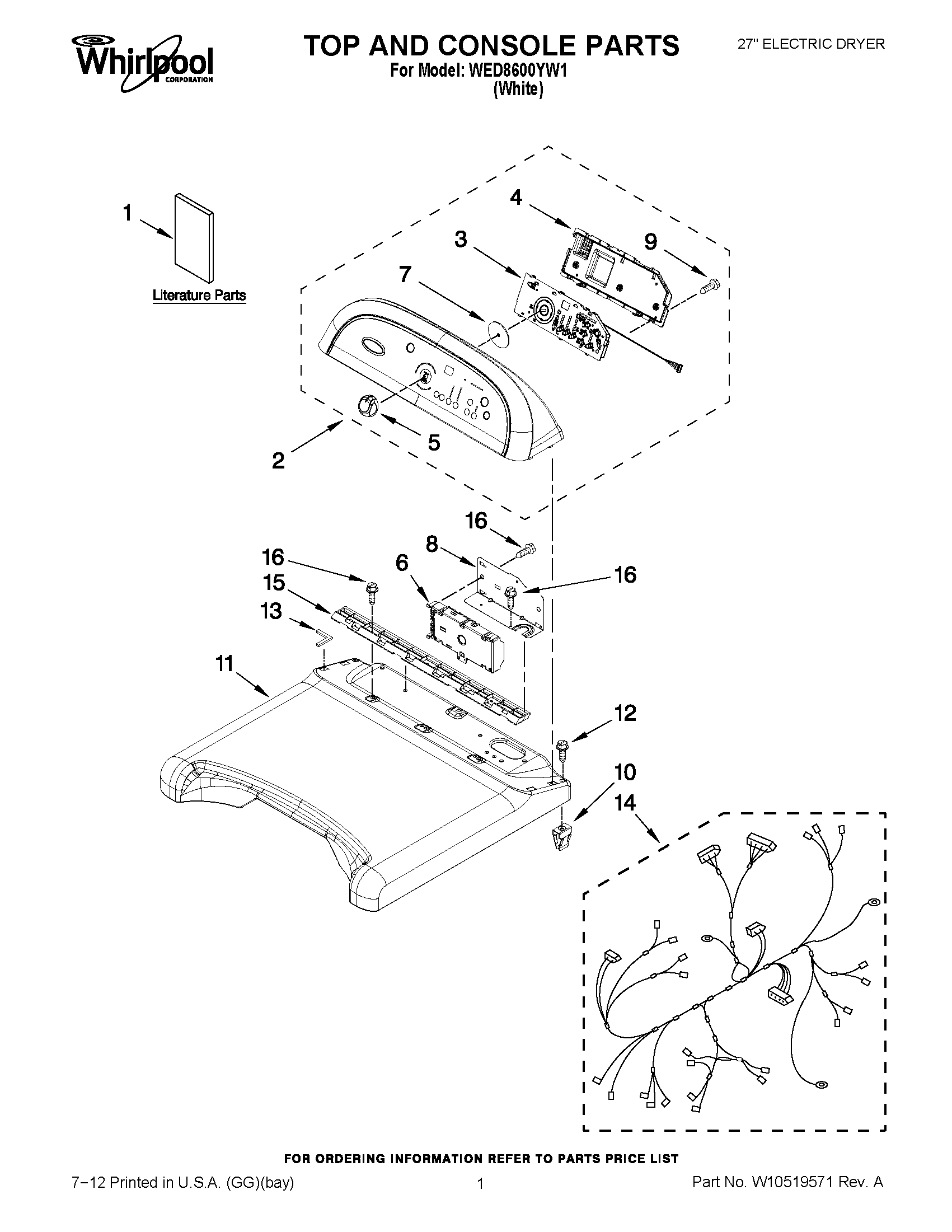

WED8600YW1 01 – TOP AND CONSOLE PARTS

WED8600YW1 01 – TOP AND CONSOLE PARTS

Written by

in

WED8600YW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTION
1GUIDE, USE & CARE
1TECH SHEET
2PANEL, CONSOLE
3WPW10388674 Whirlpool Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6WPW10432259-includeCORE Whirlpool WPW10432259 Refrigerator Electronic Control Board + Core
7SEAL, USER INTERFACE
8BRACKET, MACHINE CONTROLLER
9WP4449745 Whirlpool Screw
10W10112673 Whirlpool Clip
11TOP
12W10131402 Whirlpool Screw
13W10185554 Whirlpool Seal Assembly
14W10392403 Whirlpool Wire Harness
15Bracket, Console
16WP33001882 Whirlpool Screw
