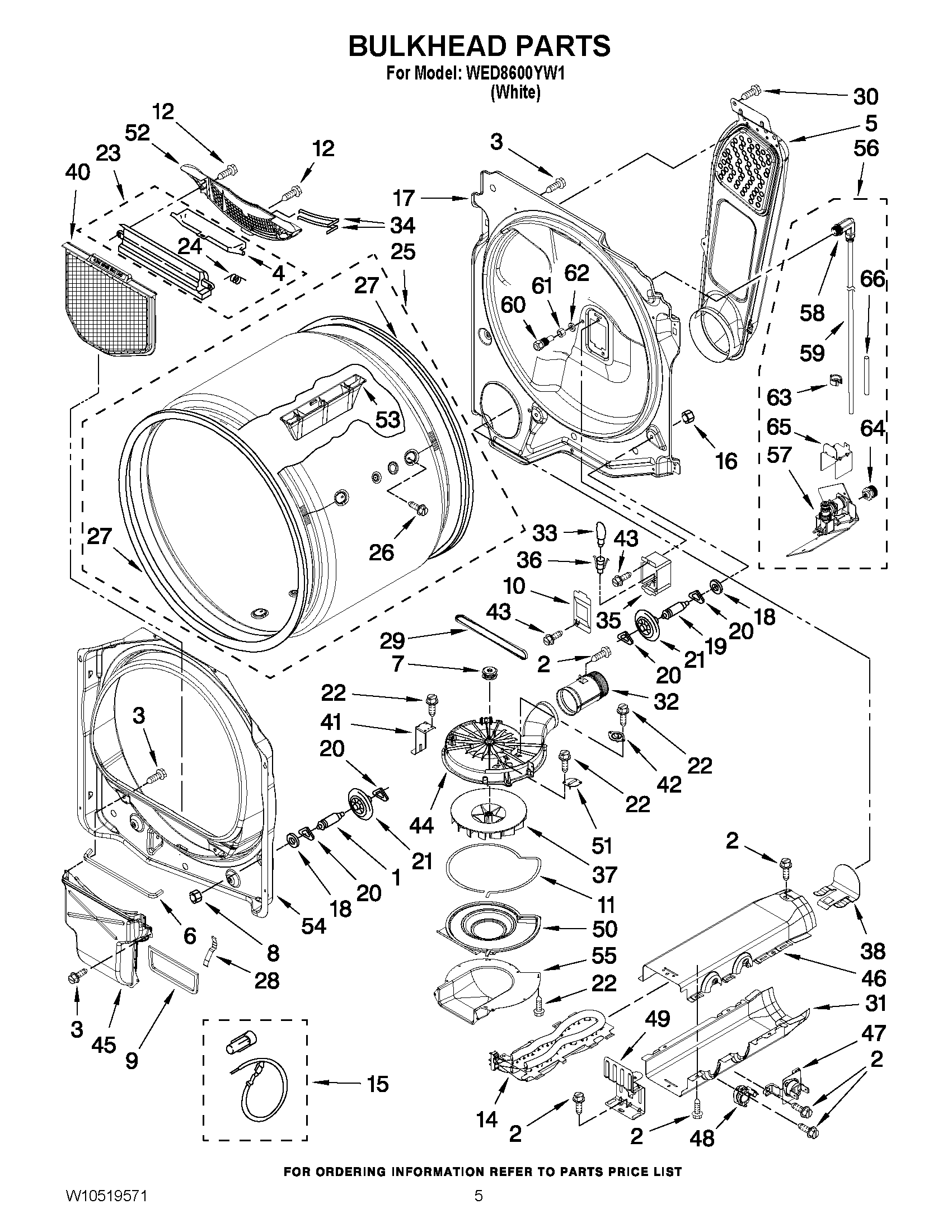

WED8600YW1 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP90767 Whirlpool Screw
3	WP3390631 Whirlpool Screw
4	W11222846 Whirlpool Door
5	AIR DUCT ASSEMBLY
6	WP697813 Whirlpool Seal
7	WP8544739 Whirlpool Motor Pulley
8	WPW10080210 Whirlpool Nut
9	SEAL, LINT DUCT
10	W11226088 Whirlpool Lens Assembly
11	WP8573068 Whirlpool Seal Gasket
12	WP3387230 Whirlpool Screw
14	WP8544772 Whirlpool Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W10139797 Whirlpool Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	3350424 Whirlpool Screw
23	W11129408 Whirlpool Out Housing
24	WP3394986 Whirlpool Spring
25	W10549614 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	SEAL-DOOR
28	8573070 Whirlpool Clip
29	WP8544742 Whirlpool Dryer Blower Belt
30	WP693995 Whirlpool Screw
31	HOUSING TAB, HEATER BOX
32	EXHAUST PIPE
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	3977373 Whirlpool Bracket
36	W11222979 Whirlpool Socket
37	WP8544737 Whirlpool Wheel Assembly
38	8544776 Whirlpool Clip Assembly
40	W10120998 Whirlpool Dryer Lint Screen Filter
41	BRACKET, BLOWER HOUSING (2)
42	WP8577274 Whirlpool Dryer Thermistor
43	WP488729 Whirlpool Refrigerator Door Screw
44	HOUSING, BLOWER
45	LINT DUCT ASSEMBLY
46	WP8544769 Whirlpool Box
47	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
48	WP8557403 Whirlpool Thermostat
49	BRACKET, HEATER BOX
50	WP8544719 Whirlpool Cover Assembly
51	WP3390719 Whirlpool Dryer Thermal Fuse
52	W11117302 Whirlpool Grille Out
53	8563860 Whirlpool Drum Baffle
54	WP8557244 Whirlpool Bulkhead Assembly
55	DUCT, INLET BLOWER
56	WPW10130506 Whirlpool Valve
57	WPW10129424 Whirlpool Valve
58	W10410316 Whirlpool Hose
59	WPL W10347743
60	WPW10277503 Whirlpool Nozzle
61	W10044628 Whirlpool Nut
62	W10044579 Whirlpool Washer
63	W10044599 Whirlpool Clip
64	W10859554 Whirlpool Coupler
65	W10160575 Whirlpool Cover Assembly
66	W10435653 Whirlpool Tube
