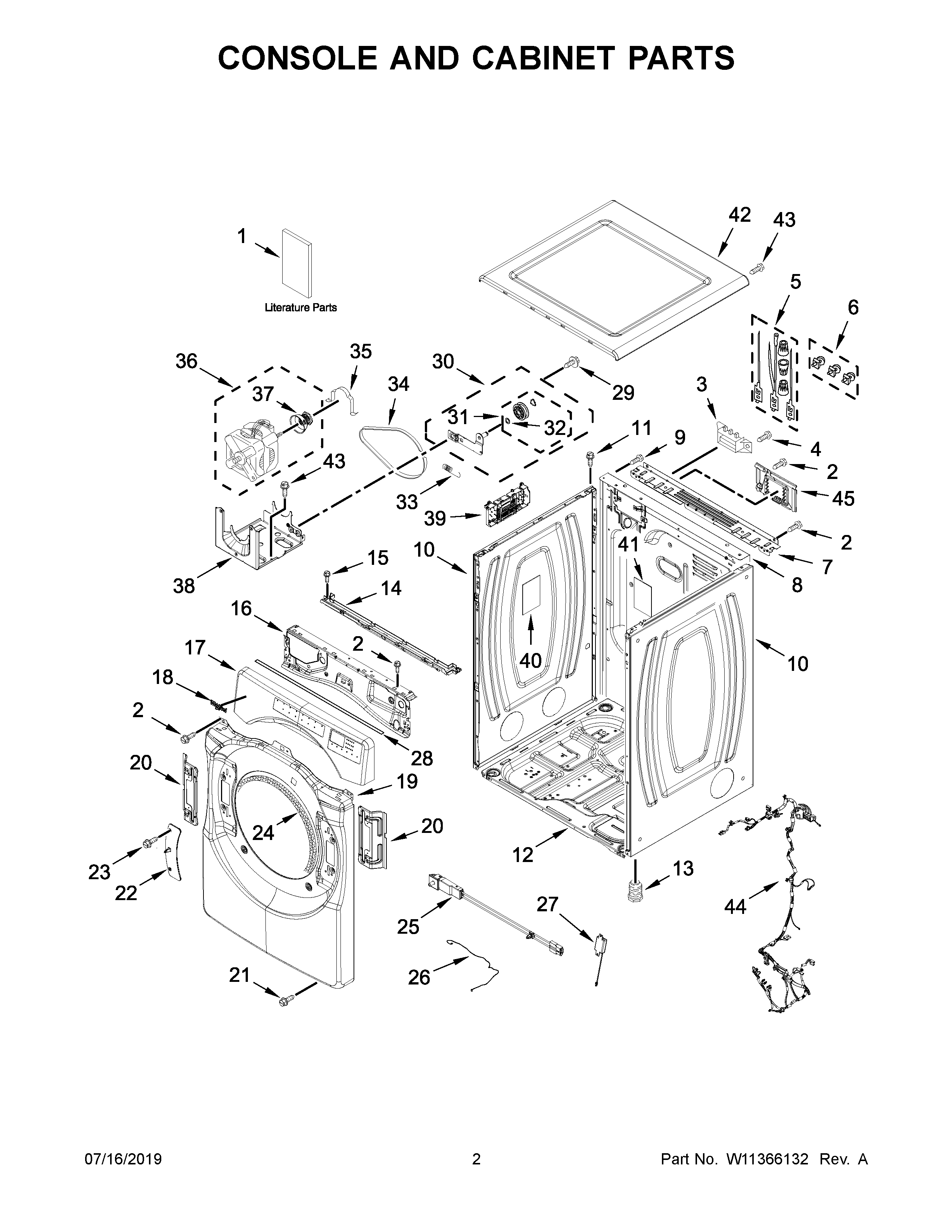

WED8620HC1 02 – CONSOLE AND CABINET PARTS

WED8620HC1 02 – CONSOLE AND CABINET PARTS

Written by

in

WED8620HC1 02 – CONSOLE AND CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1AINSTALLATION INSTRUCTIONS
1CWIRING DIAGRAM
1BTECH SHEET
1USE AND CARE GUIDE
1DQUICK START GUIDE
2WP488729 Whirlpool Refrigerator Door Screw
3WP3397659 Whirlpool Terminal Block
4WP489463 Whirlpool Refrigerator Screw
5279318 Whirlpool Terminal
6279393 Whirlpool Terminal Block Screw and Nut Kit
7WPW10208382 Whirlpool Dryer Bracket
8W10487430 Whirlpool Rear Panel
9W10850756 Whirlpool Screw
10AW11315726 Whirlpool Panel Assembly
10W11233548 Whirlpool Panel
12W11215531 Whirlpool Base
14W11310027 Whirlpool Bracket
15W11686675 Whirlpool Screw
16W11480682 Whirlpool Bracket
17AW11367342 Whirlpool Console + Core
17W11367339 Whirlpool Console + Core
18W11223753 Whirlpool Refrigerator Nameplate
19W11310029 Whirlpool Panel
19APANEL
20W11310030 Whirlpool Bracket Assembly
21WP308685 Whirlpool Microwave Screw
22W11310031 Whirlpool Strike Assembly
23SCREW
24WP3387242 Whirlpool Seal
25W11427601 Whirlpool Door Switch
26W11459337 Whirlpool Wire Harness
27W11123146 Whirlpool Speaker
28SEAL
29WP3389420 Whirlpool Screw
30W10837240 Whirlpool Dryer Idler Pulley
31279640 Whirlpool Dryer Idler Pulley Kit
32WPW10121334 Whirlpool Washer
33WPW10446781 Whirlpool Spring
34661570V Whirlpool Dryer Drum Belt
35CLAMP
36MOTOR-DRVE
37WP8066184 Whirlpool Dryer Motor Pulley
38W11481730 Whirlpool Bracket
39W11387574-includeCORE Whirlpool W11387574 Washer Electronic Control Board + Core
40W11409002 Whirlpool Pad
42WPW10208383 Whirlpool Top Panel
42AWPW10460919 Whirlpool Top
43SCREW
44W11690849 Whirlpool Wire Harness
45WPW10316167 Whirlpool Dishwasher Terminal Cover
