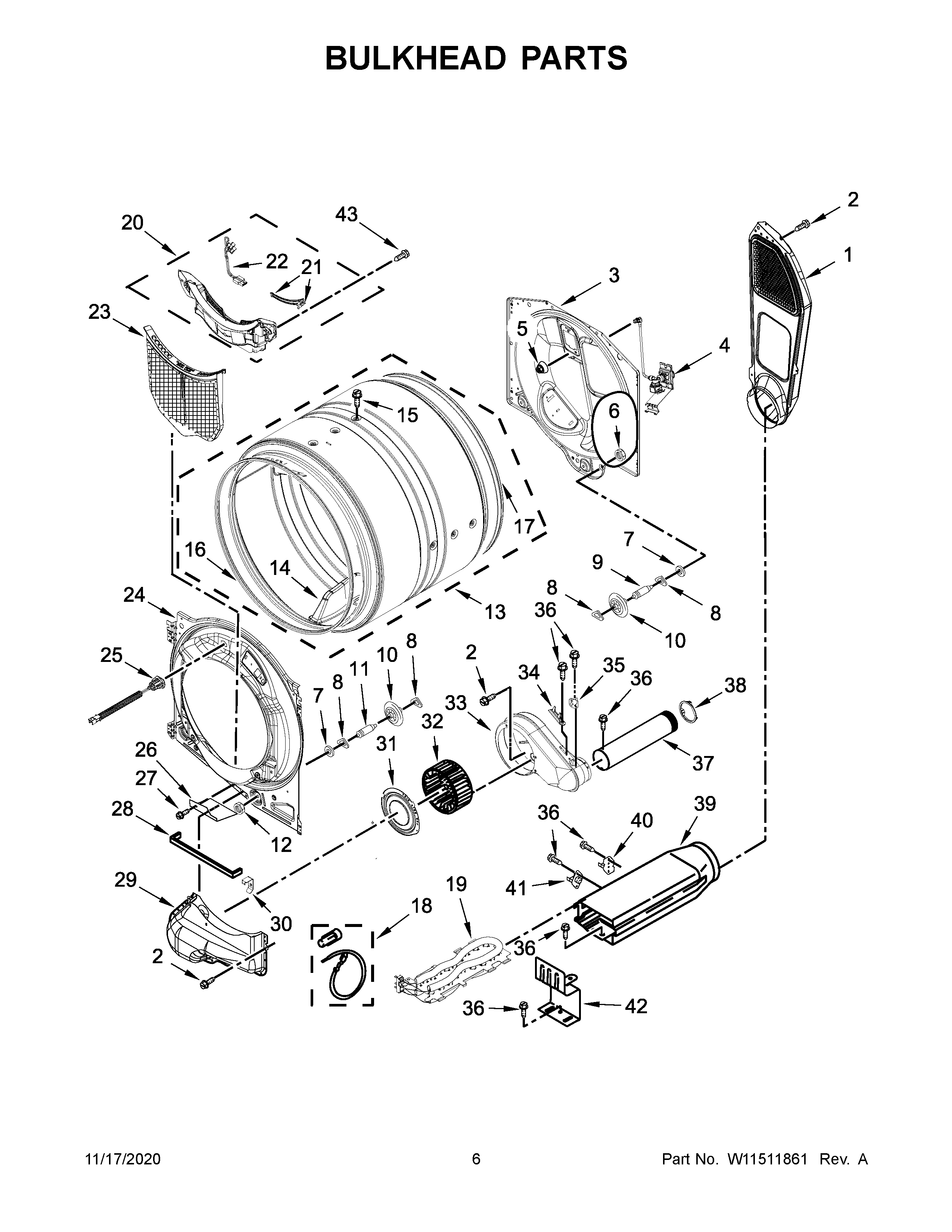

WED8620HW2 04 – BULKHEAD PARTS

Products

Position	Product
1	W11677720 Whirlpool Air Duct
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11299321 Whirlpool Bulkhead
4	W11216837 Whirlpool Valve
5	W11230609 Whirlpool Nozzle
6	WPW10080190 Whirlpool Nut
7	W11236646 Whirlpool Washer Assembly
8	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
9	SHAFT
10	WPW10314173 Whirlpool Dryer Drum Support Wheel
11	SHAFT
12	WPW10080210 Whirlpool Nut
13	W10541657 Whirlpool Drum Assembly
14	W10280771 Whirlpool Drum Baffle
15	W10853898 Whirlpool Screw
16	W11193479 Whirlpool Seal
17	280114 Whirlpool Dryer Drum Seal
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	WP3387747 Whirlpool Dryer Heating Element
20	HOUSNG-DRYER LINT
21	WP3387223 Whirlpool Electrode Assembly
22	WPW10298258 Whirlpool Wire Harness
23	SCREEN – LINT. ALPHA W/FELT
24	W10673491 Whirlpool Bulkhead Assembly
25	W11310048 Whirlpool Light
26	W11257251 Whirlpool Shield
27	WP489463 Whirlpool Refrigerator Screw
28	W11676493 Whirlpool Seal Assembly
29	WPW10211896 Whirlpool Duct Lint
30	W10414388 Whirlpool Clip
31	W11688571 Whirlpool Collar
32	WP697772 Whirlpool Dryer Blower Wheel
33	WPW10211911 Whirlpool Housing
34	FUSE-THRML
35	WP8557403 Whirlpool Thermostat
36	WP693995 Whirlpool Screw
37	WPW10342188 Whirlpool Exhaust Pipe
38	WPW10344699 Whirlpool Collar
39	W10802681 Whirlpool Box Assembly
40	280148 Whirlpool Dryer Thermal Cut-Off Fuse Kit
41	WP8577274 Whirlpool Dryer Thermistor
42	8066099 Whirlpool Bracket
43	WP3387230 Whirlpool Screw
