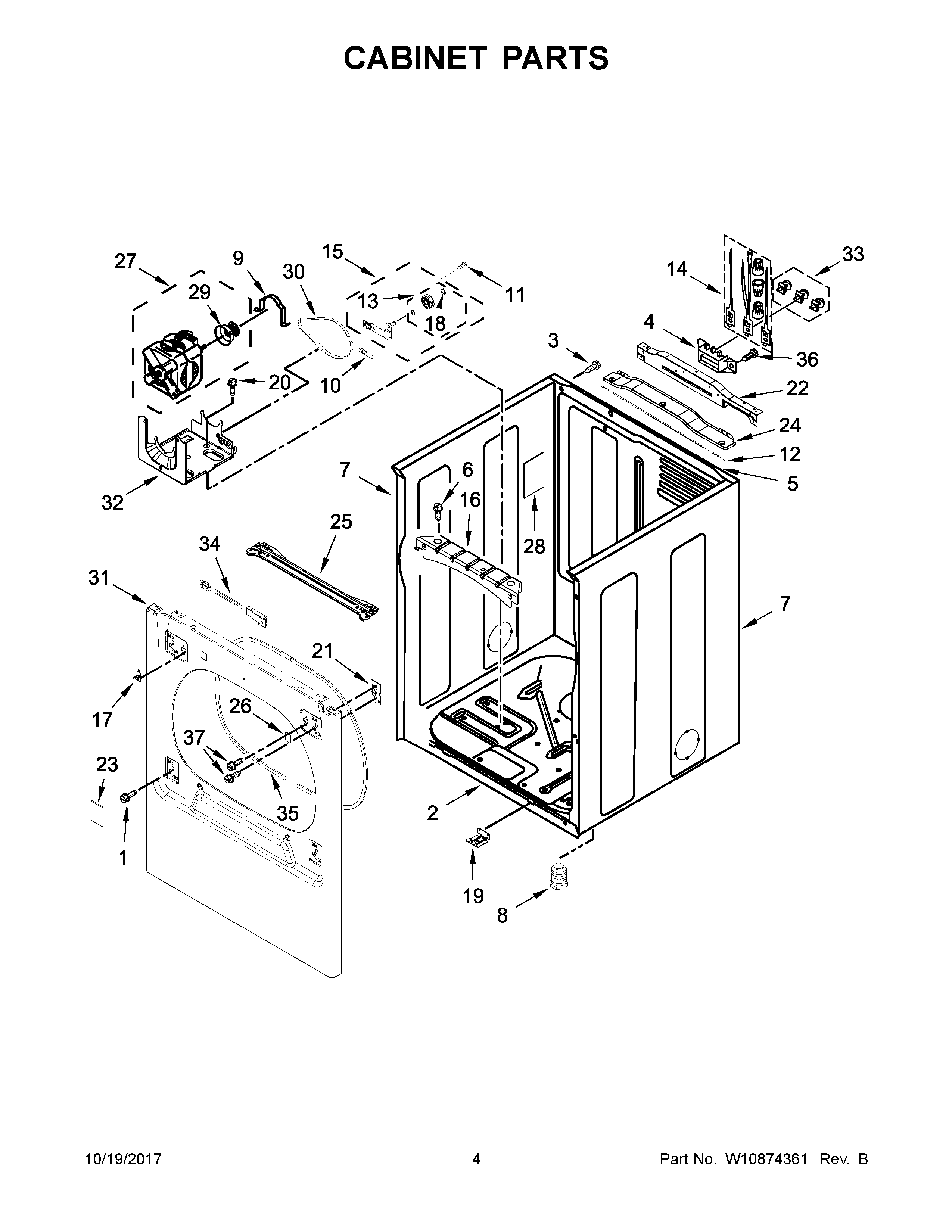

WED8700EC2 03 – CABINET PARTS

Products

Position	Product
NI	W10704365 Whirlpool Dryer Exhaust Kit
NI	49621 Whirlpool Leveling Feet
1	SCREW
2	W10613683 Whirlpool Base
3	W10636208 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10824896 Whirlpool Rear Panel
6	WP693995 Whirlpool Screw
7	W10681830 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	W10316616 Whirlpool Seal
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W10837240 Whirlpool Dryer Idler Pulley
16	W11282908 Whirlpool Bracket
17	W11163826 Whirlpool Strike
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	SPACER BRACKET, LOWER
20	SCREW
21	BRACKET, HINGE
22	W10622391 Whirlpool Bracket
23	W10596965 Whirlpool Plug
24	W10651902 Whirlpool Bracket
25	BRACE, CAB AND SEAL ASSEMBLY
26	WPW10111888 Whirlpool Plate Assembly
27	W11105178 Whirlpool Drive Motor
28	W11409002 Whirlpool Pad
29	W11568637 Whirlpool Motor Pulley
30	W10849499 Whirlpool Belt
31	W10875891 Whirlpool Panel
32	W10578053 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	W11036551 Whirlpool Door Switch
35	WP3387242 Whirlpool Seal
36	WP308685 Whirlpool Microwave Screw
37	W10891954 Whirlpool Screw
