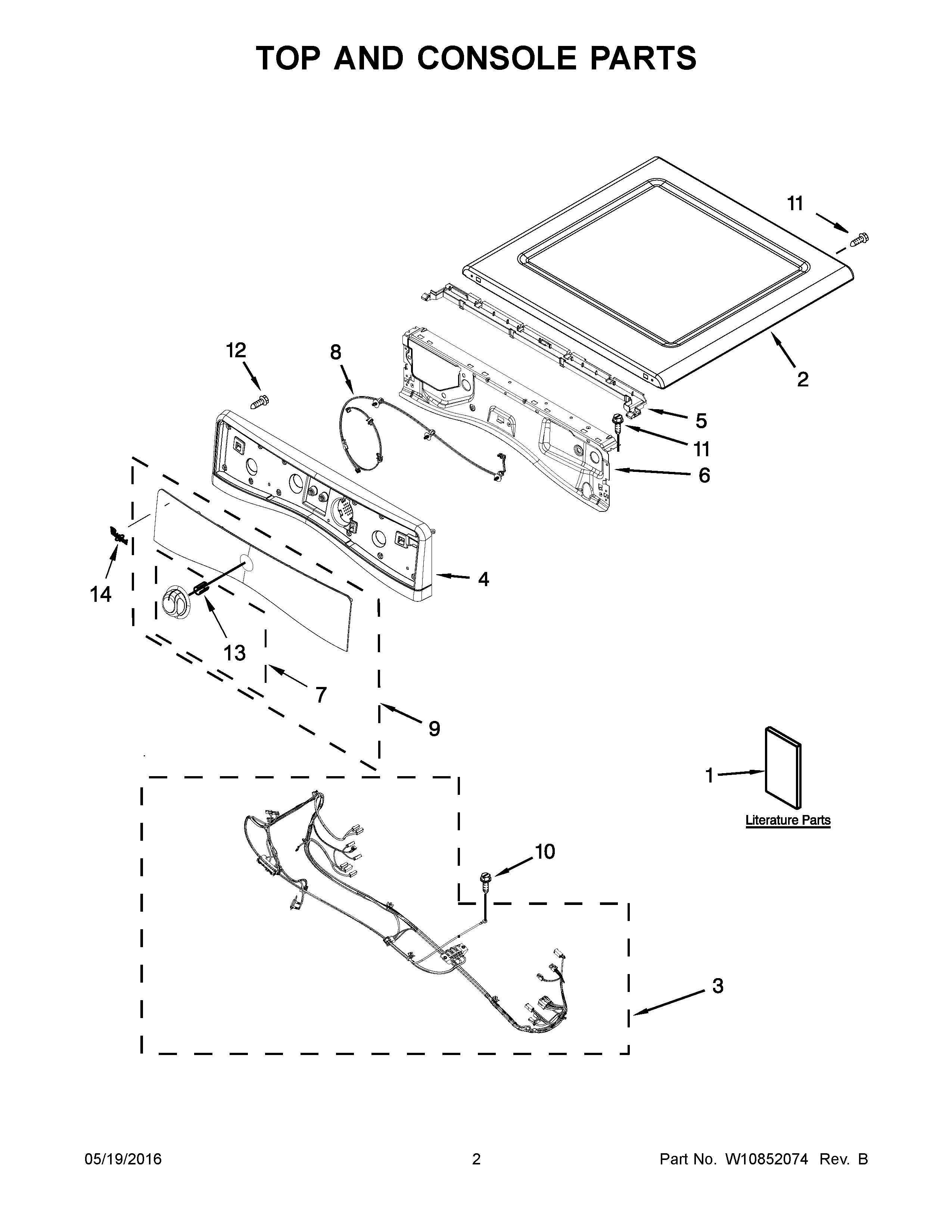

WED87HEDW1 02 – TOP AND CONSOLE PARTS

WED87HEDW1 02 – TOP AND CONSOLE PARTS

Written by

in

WED87HEDW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1EQUICK START GUIDE SPANISH
1CWIRING DIAGRAM
1BINSTALLATION INSTRUCTIONS
1FSTEAM KIT INSTALLATION SHEET
1DQUICK START GUIDE
1USE AND CARE GUIDE
1ATECH SHEET
2WPW10208383 Whirlpool Top Panel
2AWPW10460919 Whirlpool Top
3W10637533 Whirlpool Wire Harness
4WPW10391519 Whirlpool Console
4AW10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7AWPW10631127 Whirlpool Knob
7W10875909 Whirlpool Timer Knob
8W10837344 Whirlpool Wire Harness
9AIML ASSEMBLY (CHROME SHADOW)
9W11126011 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14BADGE (WHITE)
