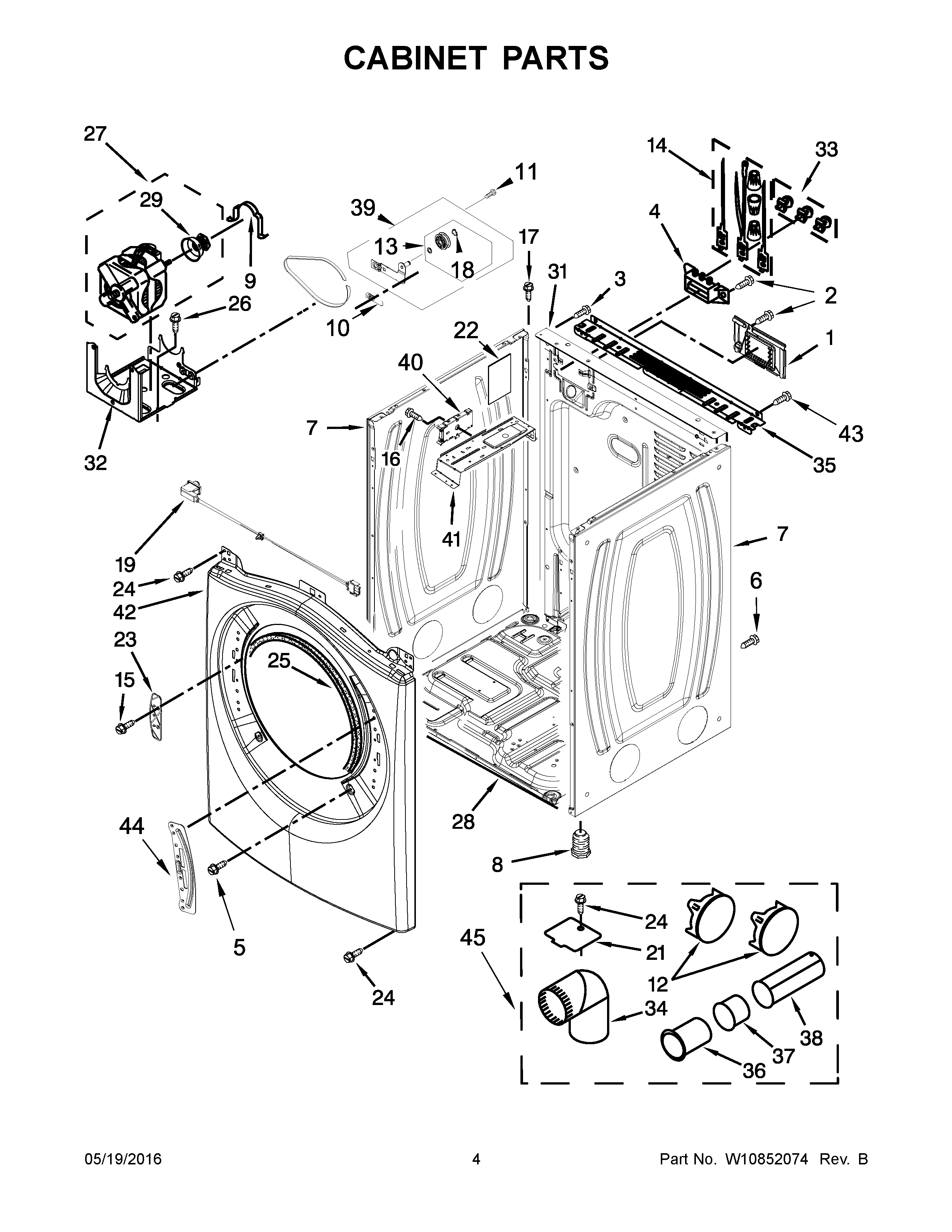

WED87HEDW1 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WP489463 Whirlpool Refrigerator Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
7A	W11315726 Whirlpool Panel Assembly
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	WPW10404617 Whirlpool Plug Assembly
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	SCREW
16	WP693995 Whirlpool Screw
17	SCREW
18	WPW10121334 Whirlpool Washer
19	WPW10350906 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	W11409002 Whirlpool Pad
23	WPW10208250 Whirlpool Strike
24	WP488729 Whirlpool Refrigerator Door Screw
25	WP3387242 Whirlpool Seal
26	SCREW
27	MOTOR-DRVE
28	W11215531 Whirlpool Base
29	WP8066184 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	W10487430 Whirlpool Rear Panel
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	WPW10208382 Whirlpool Dryer Bracket
36	PIPE, EXHAUST (MEDIUM)
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	W10849080 Whirlpool Electronic Control Board + Core
41	BRACKET, CONTROL
42A	WPW10463309 Whirlpool Dishwasher Panel
42	WPW10363953 Whirlpool Dishwasher Panel
44	BRACKET, DOOR HINGE
45	W10323246 Whirlpool Dryer Vent Kit 4-Way
