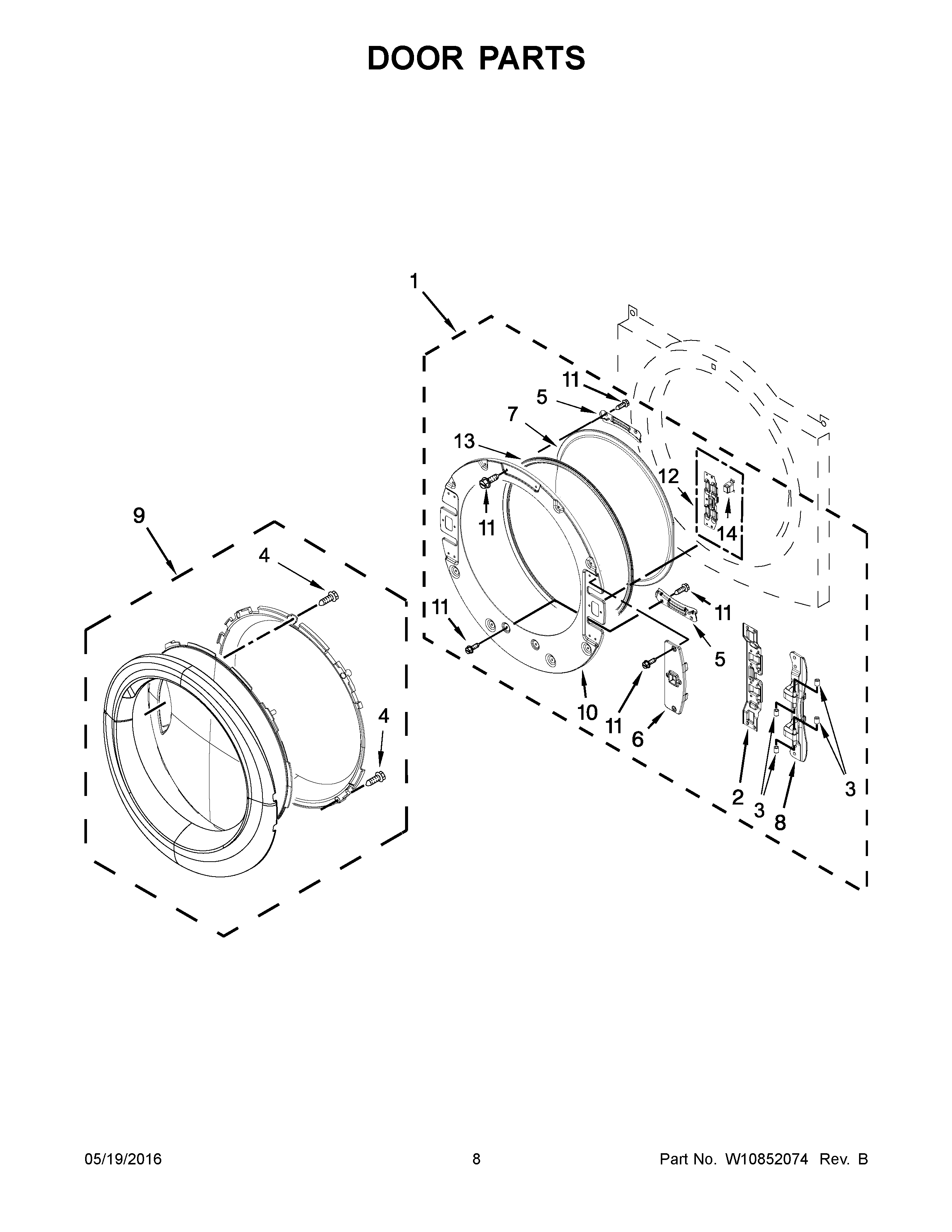

WED87HEDW1 05 – DOOR PARTS

WED87HEDW1 05 – DOOR PARTS

Written by

in

WED87HEDW1 05 – DOOR PARTS

Products

PositionProduct
1DOOR ASSEMBLY, INNER
2HINGE
3WPW10208398 Whirlpool Hinge Pin Cap
4SCREW
5W10208252 Whirlpool Retainer
6W10772469 Whirlpool Door Catch Cover
7W10749947 Whirlpool Window
8WPW10208419 Whirlpool Plate
9W10877391 Whirlpool Door Assembly
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W11126230 Whirlpool Seal
14W11240283 Whirlpool Catch Assembly
